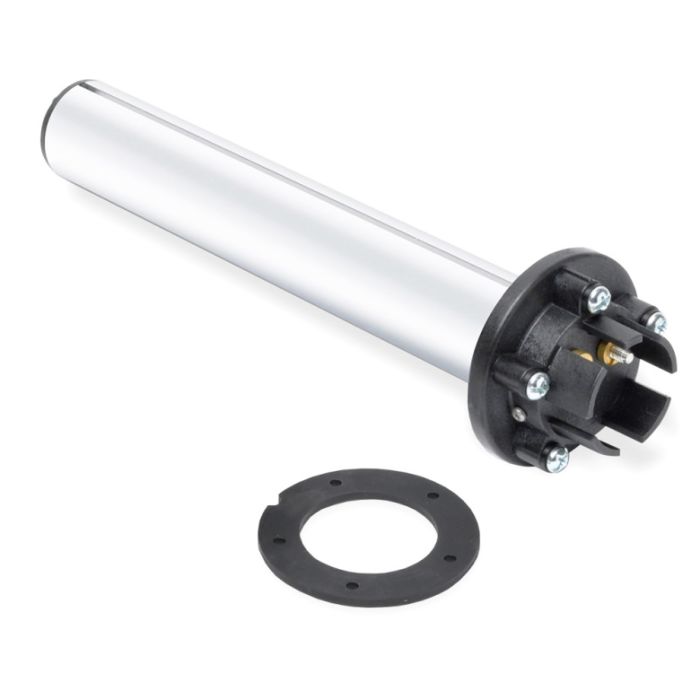

Nuke Performance Fuel Level Sensor 0-90 Ohms - 15" / 381 mm

ISSPRO Fuel Level Sensor is compatible with Nuke Performance CFC Unit. 0-90 Ohm fuel level sensor available with or without fuel gauge, compatible with standard SAE 5-bolt mounting pattern. Compatible with Nuke Performance fuel cells:

150-FLS-08: 203mm / 8"

Pyrotect 6.25 Gallon Fuel Cell
Pyrotect 8 Gallon Fuel Cell
ATL Saver Cell 30 liter
ATL Saver Cell 45 liter
Well Cell Saver Cell 45 liter
ATL Saver Cell 60 liter
ATL Saver Cell 80 liter

150-FLS-09: 228mm / 9"

Pyrotect 10 Gallon Fuel Cell
Pyrotect 12 Gallon Fuel Cell
Pyrotect 15 Gallon Fuel Cell
Pyrotect 18 Gallon Fuel Cell
Pyrotect 22 Gallon Fuel Cell
ATL Saver Cell 40 liter
AluCell Aluminum Fuel Cell 20 liter
AluCell Aluminum Fuel Cell 40 liter
Wellcell Fuel Cell 45 liter AluCell Aluminum Fuel Tank 60 liter

150-FLS-10: 254mm / 10"

Not Available

150-FLS-12: 305mm / 12"
Pyrotect 17 Gallon Fuel Tank
AluCell Aluminum Fuel Tank 80 liter

150-FLS-13: 330mm / 13"
Pyrotect 24 Gallon Fuel Tank

150-FLS-15: 381mm / 15"
Pyrotect 26 Gallon Fuel Tank
Pyrotect 32 Gallon Fuel Tank

150-FLS-16: 406mm / 16"

Not Available

Ohm resistance: 0 Ohm: Empty
90 Ohm: Full
Optional Specs: Also available in 240-33 Ohm
Fuel level sensors for motorsport and aftermarket fuel systems Compatible with the most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz and more, and is the perfect match for the Nuke Performance Competition Fuel Cell Unit. Can be ordered with or without a fuel level gauge.

I have lost my adapter plate / spacer for the fuel level sensor unit, can I order a new one? My fuel level sensor unit does not fit the mounting point of the CFC unit, what should I do? An adapter plate / spacer is needed to mount a fuel level sensor with a larger diameter than the CFC unit's bore or using the common asymmetric 5-bolt pattern often found on aftermarket fuel level sensors. The spacer / adapter plate is included with all Nuke Performance CFC units upon purchase, if you lose it, you can order a replacement plate. A detailed mounting description can be found in the CFC unit's product manual here. Asymmetrical 5-bolt adapter plate. Part Number: 150-10-117

Approved for all types of fuel, for all types of motorsports. Approved for gasoline. methanol, and ethanol. Available in various lengths, select size when placing your order. If you order together with a fuel cell, we make sure you get the correct one with your order.

Order fuel level gauge without fuel level sensor. If you need a fuel level gauge and already bought the sensor, you can acquire the gauge as an accessory if you need it. Fuel Gauge: Resistance (0-90 Ohm). Part Number: 150-FLG-01
