Fuel level sensor 0-90 ohm, 8.0in with Radium Engineering protective cover

ATTENTION:

1. The Radium 20-0847-XXX fuel level float cover is only compatible with the new Radium FCSTs (20-099X-XX).

2. For previous versions of the Radium FCST 20-049X-XX and 20-069X-XX, the Radium 20-0747-XXX without a cover must be used.

3. The Radium 20-0747-203 and 20-0747-297 level sensors without a cover are compatible with all Radium FCST part numbers.

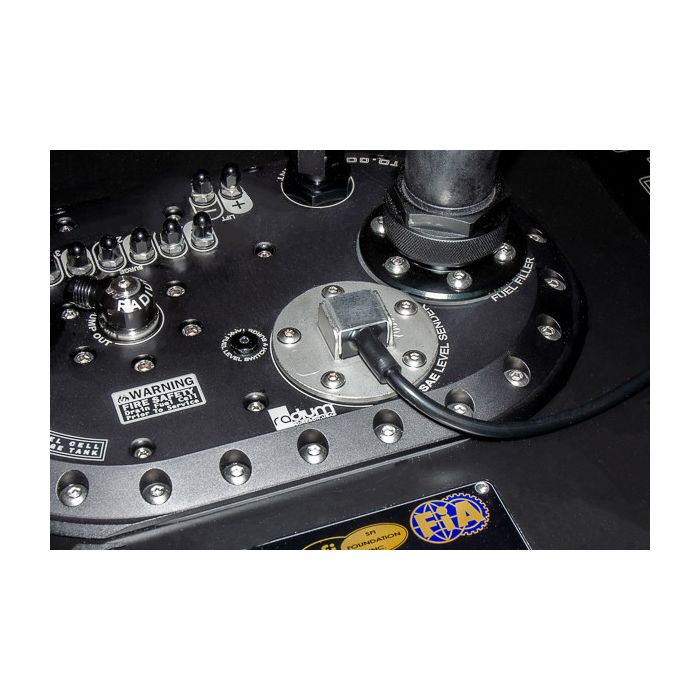

This fuel level sensor uses the standard 5-bolt SAE mounting pattern, widely used with the Radium fuel surge tank.

Fully sealed stainless steel construction with a magnetic float.

Suitable for gasoline, diesel, water, and all alcohol-based fuels, including methanol, ethanol, E85, etc.

NOTES:

-All level sensors have a resistance of 0 ohms (empty fuel) to 90 ohms (full fuel) (common in many aftermarket gauges).

-Radium does not sell fuel level gauges, but a popular option is this Autometer fuel level gauge.

-To test the sensor, measure the resistance between the two wires while tilting it so that the float moves.

-If purchased together with a Radium Fuel Surge Tank (FCST), the sensor will come pre-installed.

-If the output of this sensor is not compatible with your original fuel gauge, consider a resistance signal converter, which you can find here.
(Radium Engineering has no experience with this product; for more information, contact Classic Instruments).

SPECIFICATIONS:

PROBE MATERIAL: 304 stainless steel
FLOAT MATERIAL: Buna-N plastic

MOUNTING FLANGE: 5-bolt SAE

MOUNTING GASKET: FKM

RESISTANCE: 0 (Empty) - 90 (Full) ohms
PVC WIRES: 460 mm (18") with PA sleeve

CONNECTORS: Deutsch DT, 2P
OPERATING TEMPERATURE: -40°F to +185°F
INCLUDES:

-Level sensing probe
-5-bolt SAE GASKET
-10-32 stainless steel screws (x5)

Deutsch DT 2P connector
-Deutsch DT terminals (x2)

Instruction PDF
