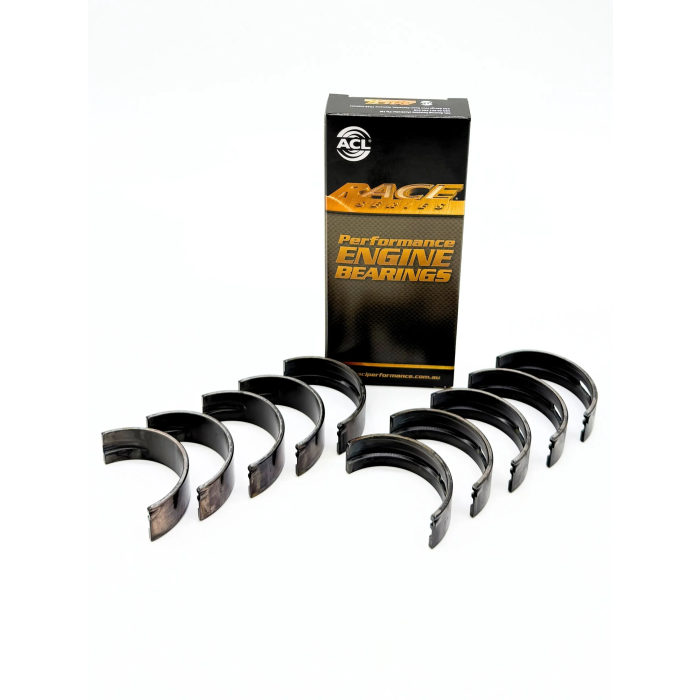

ACL Race main bearings .025 5M1644H for Audi Seat Skoda Volkswagen

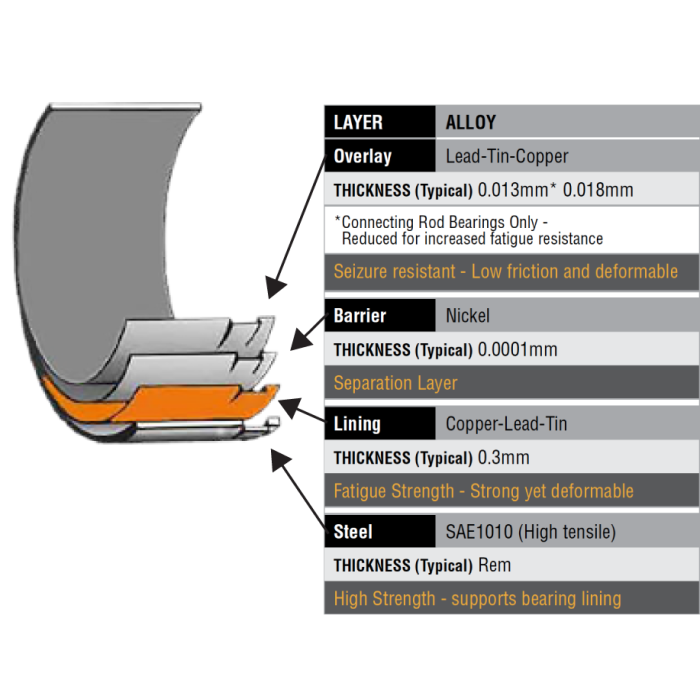

A unique combination of design, metallurgy, and engineering come together to offer drivers what they expect from high-performance Trimetal engine bearings.

Designed to withstand high-RPM conditions, ACL Race Series engine bearings are available for many popular 4, 6, and 8-cylinder applications and feature the following:

High-strength overlay plate with reduced thickness to improve fatigue resistance.
Hardened steel backing on all connecting rod bearings to improve bearing liner support and facilitate its retention in the housing.
Increased crush for better bearing retention.
Elimination of flash plating on the back of the bearings to improve heat transfer and maximize grip between the bearing and its housing.
Increased eccentricity to compensate for bore distortion at high RPM and facilitate hydrodynamic oil film formation.
3/4 grooved main bearings to optimize load surface and oil flow to connecting rod bearings.
Tight and consistent wall tolerances to maintain uniform clearances. Enlarged I.D. chamfers on bearing edges, where necessary, to accommodate large fillet radii on high-performance crankshafts.

Technical Information

Tunnel [mm]: 59.000 / 59.019
Shaft [mm]: 53.958 / 53.978
Max wall thickness: 2.502
Max length: 18.49
Shell type: Lower and upper

Note: Full groove in position #4 only. Requires thrust washers.
Weight [KG]: 0.32

Application

AUDI

100 C1 Sedan (801/803/805/807/811/813/F104): 1.6
100 C2 Avant (435/436): 1.6
100 C2 Sedan (431/433/434): 1.6
100 C3 Avant (445/446): 1.8, 1.8 Cat, 1.8 Quattro, 1.8 Cat Quattro
100 C3 Sedan (443/444): 1.8, 1.8 Cat, 1.8 Quattro, 1.8 Cat Quattro
100 C4 Avant (4A5): 2.0, 2.0 E, 2.0 16V, 2.0 E Quattro, 2.0 16V Quattro
100 C4 Sedan (4A2): 2.0, 2.0 E, 2.0 16V, 2.0 E Quattro, 2.0 16V Quattro
4000 (USA): 1.6, 1.7, 1.6 D, 1.6 TD, 1.8
80 B1 Avant (331): 1.6
80 B1 Sedan (80/82): 1.5, 1.6, 1.6 GT, 1.6 GTE
80 B2 Sedan (811/813/814/819/853): 1.3, 1.6, 1.6 GLE, 1.6 D, 1.6 TD, 1.7, 1.8, 1.8 GTE, 1.8 CC Quattro, 1.8 GTE Quattro
80 B3 Sedan (893/894/8A2): 1.6, 1.6 D, 1.6 TD, 1.8, 1.8 S, 1.8 Quattro, 1.8 S Quattro, 1.9 D, 1.9 (Quattro), 2.0 E, 2.0 16V, 2.0 E Quattro, 2.0 16V Quattro
80 B4 Avant (8C5): 1.6 (E), 1.9 TD, 1.9 TDI, 2.0, 2.0 E, 2.0 Quattro, 2.0 16V, 2.0 16V Quattro
80 B4 Sedan (8C2): 1.6 (E), 1.9 TD, 1.9 TDI, 2.0, 2.0 E, 2.0 E Quattro, 2.0 Quattro, 2.0 16V, 2.0 16V Quattro, 2.0 E 16V
90: 1.8
90 B2 (813/814/853): 1.6 TD
90 B3 (893/894/8A2): 1.6 TD, 1.8, 2.0, 2.0 E, 2.0 16V Quattro
A3 (8L1): 1.6, 1.8, 1.8 T, 1.8 T Quattro, 1.9 TDI, S3 Quattro
A3 (8P1): 2.0 FSI, 2.0 TFSI, 2.0 TFSI Quattro, S3 Quattro
A3 Sportback (8PA): 2.0 FSI, 2.0 TFSI, 2.0 TFSI Quattro, S3 Quattro
A4 B5 (8D2): 1.6, 1.8, 1.8 T, 1.8 Quattro, 1.8 T Quattro, 1.9 TDI, 1.9 TDI Quattro
A4 B5 Avant (8D5): 1.6, 1.8, 1.8 T, 1.8 Quattro, 1.8 T Quattro, 1.9 TDI, 1.9 TDI Quattro, 1.9 Hybrid
A4 B6 (8E2): 1.8 T, 1.8 T Quattro, 2.0, 2.0 FSI, 1.9 TDI
A4 B6 Avant (8E5): 1.8 T, 1.8 T Quattro, 2.0, 2.0 FSI, 1.9 TDI
A4 B6 Cabrio (8H7): 1.8 T, 1.8 T Quattro, 2.0

A4 B7 (8EC): 1.8 T, 1.8 T Quattro, 2.0, 2.0 FSI, 2.0 TFSI, 2.0 TFSI Quattro

A4 B7 Avant (8ED): 1.8 T, 1.8 T Quattro, 2.0, 2.0 TFSI, 2.0 TFSI Quattro

A4 B7 Convertible (8HE): 1.8 T, 2.0 TFSI, 2.0 TFSI Quattro

A6 C4 (4A2): 1.8, 1.8 Quattro, 1.9 TDI, 2.0, 2.0 16V, 2.0 16V Quattro

A6 C4 Avant (4A5): 1.8, 1.8 Quattro, 1.9 TDI, 2.0, 2.0 16V, 2.0 16V Quattro
A6 C5 (4B2): 1.8, 1.8 T, 1.8 T Quattro, 1.9 TDI, 2.0
A6 C5 Avant (4B5): 1.8, 1.8 T, 1.8 T Quattro, 1.9 TDI, 2.0
A6 C6 (4F2): 2.0 TFSI
A6 C6 Avant (4F5): 2.0 TFSI
Cabrio B3 (8G7): 1.8, 1.9 TDI, 2.0 E, 2.0 16V
Coupé B2 (81/855/856): 1.6, 1.8, 1.8 GT, 1.8 GT Quattro
Coupé B3 (89/8B3): 1.8, 2.0, 2.0 E, 2.0 16V

Fox: 1.5, 1.6

TT (8N3): 1.8 T, 1.8 T Quattro

TT Roadster (8N9): 1.8 T, 1.8 T Quattro

TT (8J3): 2.0 TFSI, 2.0 TTS Quattro

TT Roadster (8J9): 2.0 TFSI, 2.0 TTS Quattro

FORD

Galaxy I (WGR): 1.9 TDI

Galaxy MK I VAN (WGR): 1.9 TDI

SEAT

Alhambra (7V8/7V9): 1.8 T 20V, 1.9 TDI, 1.9 TDI 4motion, 2.0

Alhambra VAN (7V8/7V9): 1.9 TDI, 1.9 TDI 4motion, 2.0

Altea (5P1): 2.0 FSI, 2.0 TFSI
Altea XL (5P5/5P8): 2.0 FSI, 2.0 TFSI, 2.0 TFSI 4x4
Arosa (6H1): 1.7 SDI
Córdoba (6K1/6K2): 1.4 16V, 1.6, 1.8, 1.8 T 20V Cupra, 1.9 D, 1.9 SDI, 1.9 TD, 1.9 TDI, 2.0, 2.0 16V
Córdoba Vario (6K5): 1.6, 1.8, 1.9 SDI, 1.9 TDI
Córdoba (6L2): 1.9 SDI, 1.9 TDI, 2.0
Exeo (3R2): 2.0 TFSI
Exeo ST (3R5): 2.0 TFSI
Ibiza III (6K1): 1.4 16V, 1.6, 1.8, 1.8 T 20V Cupra, 1.9 D, 1.9 SDI, 1.9 TD, 1.9 TDI, 2.0, 2.0 16V

Ibiza III (6L1): 1.8 T FR, 1.8 T Cupra R, 1.9 SDI, 1.9 TDI, 2.0

Inca (6K9): 1.6, 1.7 D, 1.9 D, 1.9 SDI, 1.9 TDI

León (1M1): 1.6, 1.6 16V, 1.8 20V, 1.8 T, 1.8 T Cupra R, 1.9 SDI, 1.9 TDI

León (1P1): 2.0 FSI, 2.0 TFSI, 2.0 Cupra R

Toledo I (1L2): 1.6, 1.8, 1.8 16V, 1.9 D, 1.9 TD, 1.9 TDI, 2.0, 2.0 16V
Toledo II (1M2): 1.6, 1.6 16V, 1.8 20V, 1.8T, 1.9TDI
Toledo III (5P2): 2.0 FSI, 2.0 TFSI

SKODA

Fabia I (6Y2): 1.9 SDI, 1.9 TDI
Fabia I Combi/Praktik (6Y5): 1.9 SDI, 1.9 TDI
Fabia I Sedan (6Y3): 1.9 SDI, 1.9 TDI
Felicia I/II (6U1): 1.6, 1.9D
Felicia Combi (6U5): 1.6, 1.9 D
Felicia Pick-up (6UF/6U7): 1.6, 1.9 D

Felicia Cube Van (6U5): 1.9 D

Octavia I (1U2): 1.6, 1.8, 1.8 T, 1.9 SDI, 1.9 TDI, 2.0

Octavia I Combi (1U5): 1.6, 1.8 20V, 1.8 T, 1.9 SDI, 1.9 TDI, 2.0, 2.0 4x4, 1.9 TDI 4x4

Octavia I Estate Van (1U5): 1.9 SDI, 1.9 TDI

Octavia II (1Z3): 2.0 FSI, 2.0 TFSI

Octavia II Combi (1Z5): 2.0 FSI, 2.0 FSI 4x4, 2.0 TFSI

Superb I (3U4): 1.8 T, 1.9 TDI, 2.0

VOLKSWAGEN

Bora (1J2/1J6/9M2): 1.6, 1.8 T, 1.9 SDI, 1.9 TDI, 2.0

Caddy I/II/III + MPV/Pickup/Van: 1.6, 1.7 D, 1.9 D, 1.9 SDI, 1.9 TDI, 2.0 EcoFuel

Corrado (53i): 1.8 16V, 1.8 G60, 2.0, 2.0 16V

Eos (1F7/1F8): 2.0 FSI, 2.0 TFSI

Fox (USA / 5Z / Sedan / Wagon): 1.6, 1.8, 1.9 SDI

Golf I: 1.6, 1.8

Golf II: 1.6, 1.8, 1.8 16V, 1.8 G60, 2.0/2.0 16V + diesel 1.6 D/TD
Golf III + Cabriolet + Van + Wagon: 1.6, 1.8, 2.0 + diesel 1.9 D/TD/TDI/SDI
Golf IV + Cabriolet + Van + Wagon: 1.6, 1.8, 1.8 T, 2.0 + diesel 1.9 SDI/TDI
Golf V/Golf Plus V: 2.0 FSI, 2.0, 2.0 GTI/TFSI
Golf VI + Cabrio: 2.0, 2.0 R 4motion
Jetta I/II/III/IV/V: 1.6, 1.8, 2.0 + diesel 1.6 D/TD and 1.9 TDI/SDI
New Beetle + Cabrio: 1.8 T, 1.9 TDI, 2.0
Passat B1/B2/B3/B4/B5/B5.5/B6 + Wagon: 1.6, 1.8, 1.8 16V, 1.8 G60, 2.0, 2.0 16V + diesel 1.9 D/TD/TDI (Syncro/4motion)
Polo (6N2 / 6N1 / 9N / 6V2 / 6V5 / 9A4): 1.4, 1.6, 1.7 SDI, 1.9 D, 1.9 SDI, 1.9 TDI, 2.0, 1.8 GTI (Polo)
Santana / Scirocco / Saveiro / Senda / Sharan / Touran / Transporter / Multivan / California / Vento / Voyage
