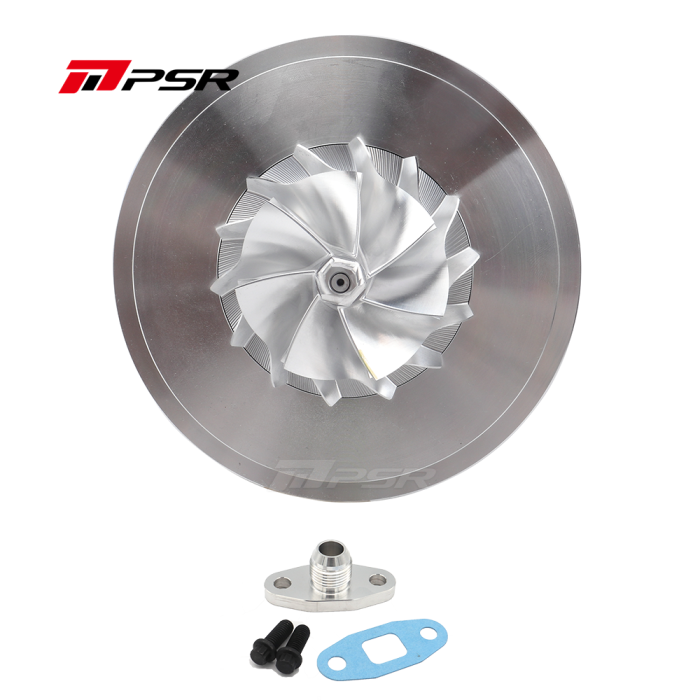

Supercore Pulsar PSR 6266E 735hp Ball Bearing

6266E ball-bearing turbocharger, up to 735 HP

Ball bearing system provides optimum turbo response and increased durability by reducing shaft movement.

Machined compressor wheel with slim tip and hub for lower weight and faster response, with extended tapered tip technology.
10-blade Inconel 713c turbine wheel.
V-Band flange kit for exhaust housing included.

Maximum engine power: 735 HP

Compressor housing: No compressor housing

Turbine housing: No turbine housing

Machined compressor wheel: 62 mm / 82.2 mm, 7+7 blades

Turbine wheel: 66.1 mm / 74.17 mm, 10 blades

Bearing system: Dual ball bearing (provides optimum turbo response and increased durability by reducing shaft movement)

Compressor housing inlet/outlet: 4.0" / 2.5" hose

Turbine housing: T3 0.63 A/R (3" V-band outlet) T3 0.82 A/R (3″ V-band outlet); T4 open 0.96 A/R (3″ V-band outlet); Double V-band 0.96 A/R (3″ V-band inlet and outlet); Stainless steel T4 open 0.63 A/R (3″ V-band outlet); Stainless steel Double V-band 0.82 A/R (2.5″ V-band inlet and outlet)

Internal oil feed port is 0.9 mm.

Oil feed connection: 1/8-27 NPSF

Oil drain: T4 flange

Oil drain connection:

10AN_STD

10AN_EXTENDED

Important! Only compatible with PSR compressor cover.
