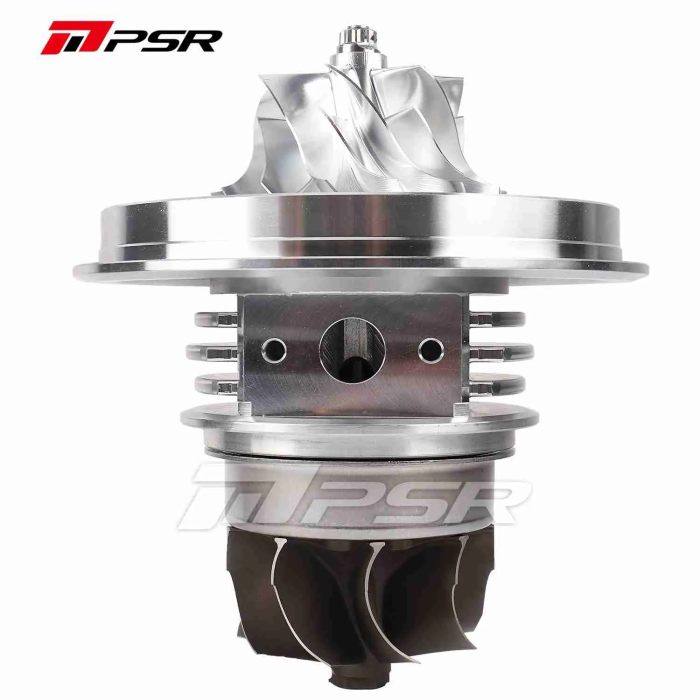

Supercore Pulsar PSR 488DG Ball Bearing

Billet compressor wheel with dual ball bearing for PSR 488DG turbocharger

CNC machined billet aluminum bearing housing with finned cooling design

9-blade Inconel 713 turbine wheel, G-series design, for improved gas flow and reduced turbo lag

Dual ceramic ball bearing system

Billet compressor wheels with extended tip technology

-12AN oil drain flange and TRB inlet gasket. Box included

Compressor housing: No compressor housing

Turbine housing: No turbine housing

Recommended displacement: 3.0-8.0 L
Horsepower: 750-1550 HP

Features:

CNC machined billet aluminum bearing housing with finned cooling design
9-blade Inconel 713 turbine wheel, G-series design, for improved gas flow and reduced turbo lag
Dual ceramic ball bearing system
Billet compressor wheels with extended tip technology

-12AN oil drain flange and TRB inlet gasket (included in box)

Details:

Compressor wheel: 88*117 mm, 7+7 blades
Compressor inlet: 5.5” slip fit
Compressor outlet: V-band
Turbine wheel: 96*88 mm, 9 blades
Turbine housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 inch (optional)
Turbine housing inlet and outlet: T4 divided inlet, V-band outlet; T6 divided inlet, 3/4" Marmon outlet
Oil feed port: 1/4 NPT
Oil drain: Standard T6 drain flange

* V-band flange kits available:

4” TRB Outlet V-band flange and clamp kit (164340001)
5” TRB Outlet V-band flange and clamp kit (164340002)
3” COMP Outlet V-band flange and clamp kit (164340003)

3.5” COMP Outlet V-band flange and clamp kit (164340004)

4” COMP Outlet V-band flange and clamp kit (164340005)
