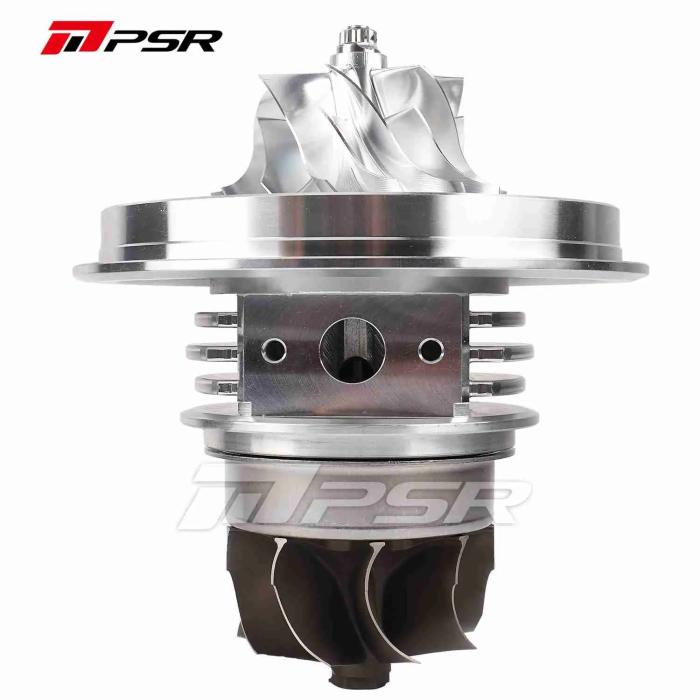

Supercore Pulsar PSR 485DG Ball Bearing

Billet dual ball bearing compressor wheel for PSR 485DG turbo

CNC machined billet aluminum bearing housing with finned cooling design

Inconel 713 9-blade turbine wheel, G-series design, for improved gas flow and reduced turbo lag

Dual ceramic ball bearing system

Machined compressor wheels with extended tip technology

-12AN oil drain flange and TRB inlet gasket. Inlet gasket included

Compressor housing: No compressor housing

Turbine housing: No turbine housing

Recommended displacement: 3.0-8.0L
Power: 750-1350 HP

Features:

CNC machined billet aluminum bearing housing with finned cooling design
Inconel 713 9-blade turbine wheel, G-series design, for improved gas flow and reduced turbo lag

Dual ceramic ball bearing system
Machined compressor wheel with curved tip and large blade area for improved boost response

-12AN oil drain flange and TRB inlet gasket (boxed)

Details:

Compressor wheel: 85*120 mm, 6+6 blades

Compressor inlet: 5.5” slip-fit

Compressor outlet: V-band *

Turbine wheel: 96*88 mm, 9 blades
Turbine housing A/R: 1.15, 1.25, 1.32, 1.45, and 1.58 in. (optional)
Turbine housing inlet and outlet: T4 split inlet, V-band outlet; T6 split inlet, 3/4" Marmon outlet
Oil feed port: 1/4 NPT
Oil drain: Standard T6 drain flange

* V-band flange kits available:

TRB 4" outlet flange and clamp kit (164340001)
TRB 5" outlet flange and clamp kit (164340002)
COMP 3" outlet flange and clamp kit (164340003)

COMP 3.5” outlet flange and clamp kit (164340004)

COMP 4” outlet flange and clamp kit (164340005)
