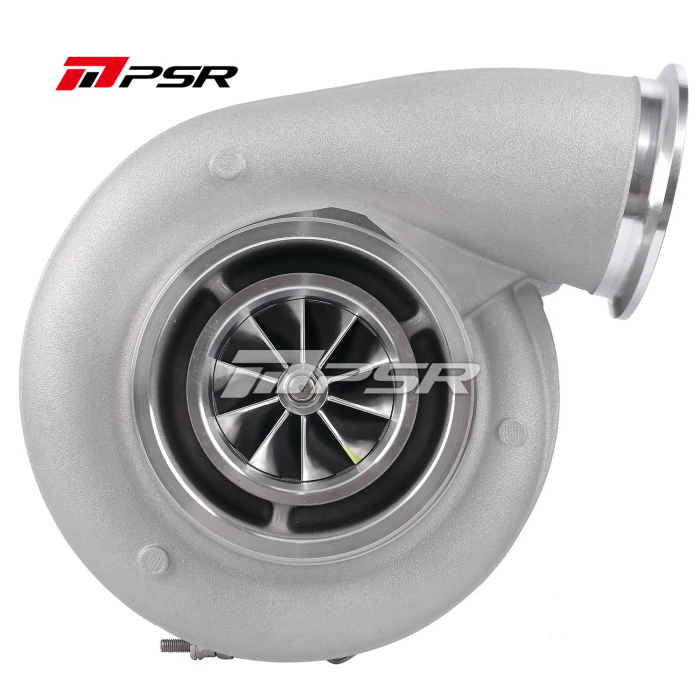

Supercore Pulsar PSR 472DG Ball Bearing

Billet aluminum compressor wheel with PSR 472DG dual ball bearing

CNC machined aluminum bearing housing with finned cooling design

9-blade Inconel 713 turbine, G series design, for improved gas flow and reduced turbo lag

Dual ceramic ball bearing system

Machined compressor wheels with extended tip technology

-12AN oil drain flange and Thermostatic Expansion Joint (TRB). Inlet gasket comes in a box

Compressor Housing: Standard

Turbine Housing: No Turbine Housing

Recommended Displacement: 3.0-8.0 L
Power: 500-950 HP

Features:

CNC machined aluminum bearing housing with finned cooling design
9-blade Inconel 713 turbine, G series design, for improved gas flow and reduced turbo lag
Dual ceramic ball bearing system
Machined compressor wheels with extended tip technology

-12AN oil drain flange and Thermostatic Expansion Joint (TRB) Inlet gasket comes in a box.

Details:

Compressor Wheel: 71.93 × 101.5 mm (7+7)

Compressor Inlet: 5" (slip fit)

Compressor Outlet: V-Band

Turbine Wheel: 96 × 88 mm (9 blades)
Turbine Housing A/R: 1.15, 1.25, 1.32, 1.45 and 1.58 inch (option)

Turbine Housing Inlet: Divided T4

Turbine Housing Outlet: V-Band

Oil Feed Port: 1/4 NPT

Oil Drain: T6 Standard Drain Flange

*V-Band Flange Kits available:

TRB 4" Outlet V-Band Flange & Clamp Kit (164340001)
TRB 5" Outlet V-Band Flange & Clamp Kit (164340002)
COMP 3" Outlet V-Band Flange & Clamp Kit (164340003)
COMP 3.5” Outlet V-Band Flange & Clamp Kit (164340004)

COMP 4” Outlet V-Band Flange & Clamp Kit (164340005)
