Radium Engineering fuel rails for GM Vortec 8100 L18 Big Block

COMPATIBILITY

GMC C3500HD (2001-2002)

Chevrolet C3500HD (2001-2002)

GMC Yukon XL 2500 (2001-2006)

Chevrolet Suburban XL 2500 (2001-2006)

GMC Sierra 2500HD (2001-2007)

GMC Sierra 3500HD (2001-2007)

Chevrolet Silverado 2500HD (2001-2007)

Chevrolet Silverado 3500HD (2001-2007)

GMC Topkick (2001-2010)

Chevrolet Kodiak (2001-2010)

Chevrolet Avalanche 2500 (2002-2006)
Workhorse Class A Motorhome W20
Workhorse Class A Motorhome W22
Workhorse Class A Motorhome W24
Workhorse Class A Motorhome W25
T-98 Kombat Armored Vehicle
Malibu Wakesetter 23 LSV Boat
Malibu Wakesetter 25 LSV Boat

Malibu Wakesetter 247 LSV Boat

Mastercraft X-45 Boat

Mastercraft ProStar 197 Boat

Mastercraft ProStar 214 Boat

FUEL INJECTORS

Radium manufactures two types of fuel rails: upgrade rails and top-feed conversion rails. Upgrade rails only improve the rail, and the original fuel injectors can be reused. If you wish to upgrade the injectors, they must be equivalent to the originals; that is, they must have the same height, and the upper and lower O-rings must match the original diameters and styles. Top-feed conversion rails are used to convert a vehicle with side-feed (or sometimes air-assisted) injectors to top-feed injectors.

This fuel rail is an upgrade rail. Original or equivalent injectors must be used.

Radium does not recommend fuel injectors.

Consult your tuner for recommendations regarding injector brand or flow rate.
Consult the injector manufacturer to obtain the part number with the correct dimensions.

20-0862 GM Vortec 8100 L18 Big Block Fuel Rails

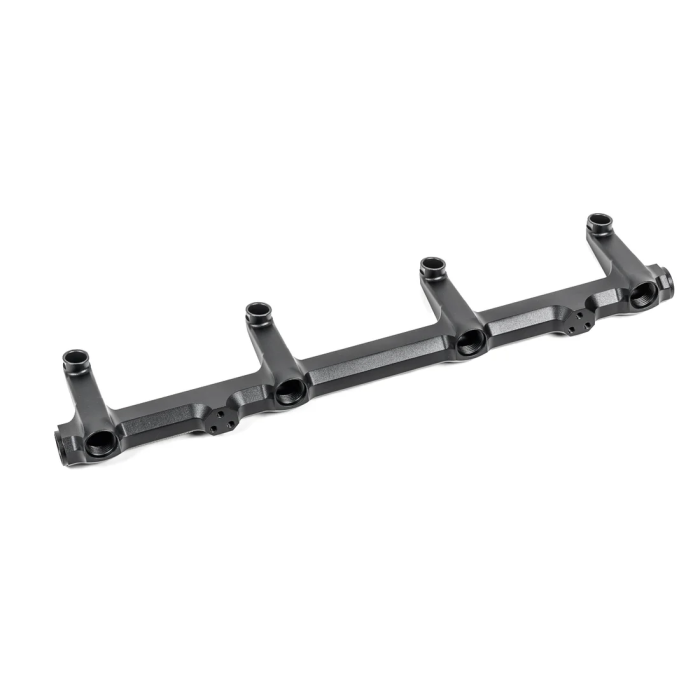

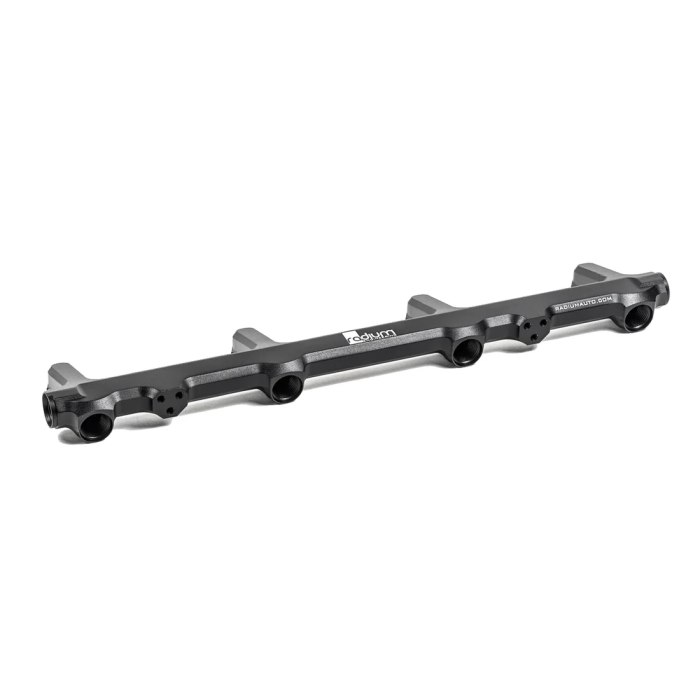

The fuel rails are CNC machined from 6061 aluminum, black anodized, and laser engraved for a high-quality surface finish. Each fuel rail has six 8AN ORB ports, twelve ports in total.

Each fuel rail has 6 ports (12 in total). These ports are 3/4"-16 threaded for 8AN ORB fittings.

8AN ORB Adapters

8AN ORB Direct-Mount Regulators

8AN ORB Fuel Pulse Dampeners

Fuel Pressure Gauge Adapters

The appropriate fittings must be selected based on the specific application. It is necessary to leave enough clearance around the fuel rail ports for larger accessories, such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampeners. To check clearance, you can consult the dimensional drawings on the product pages.

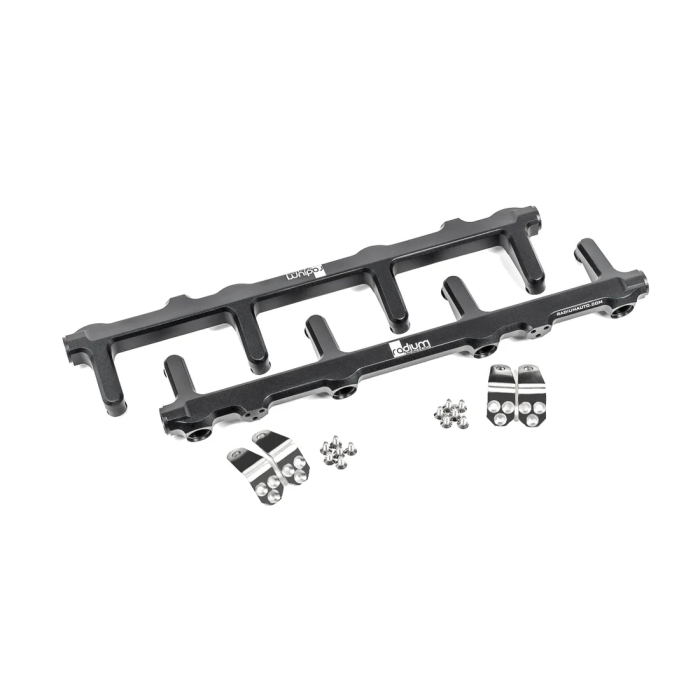

INCLUDES:

20-0862 GM Vortec 8100 L18 Big Block Fuel Rails

Anodized billet aluminum fuel rail (x2)

Stainless steel mounting brackets (x4)
Stainless steel mounting hardware
