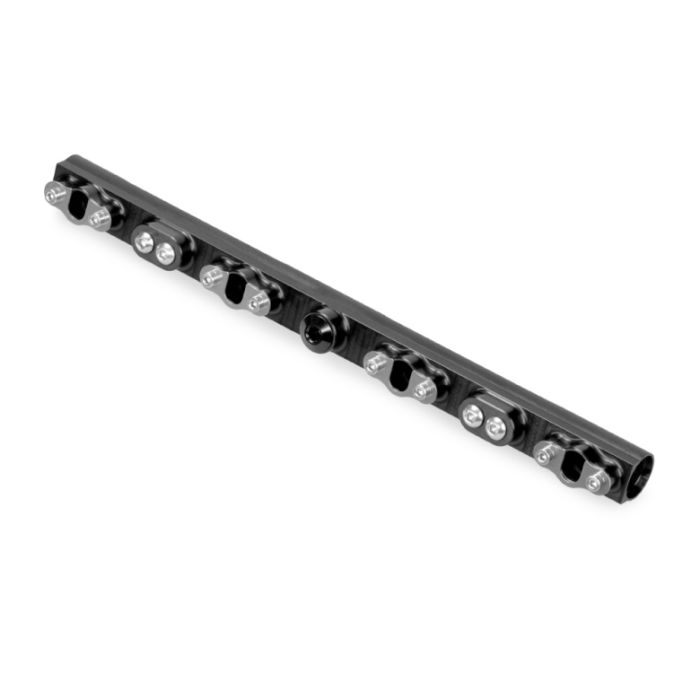

Nuke Performance Fuel Rail - No Brackets for Volkswagen 4 cylinder 16v EA113 / EA888

Nuke Performance fuel rail for Volkswagen 4-cylinder 16-valve EA113 / EA888 engines, with oversized internal bore, lightweight design, and equipped with our unique injector safety clips.

The fuel rail for Volkswagen 4-cylinder 16-valve is delivered without model-adapted brackets but with M6 threads for the manufacturing and installation of custom brackets.

The replacement fuel rail for the VW 16v engine allows you to install AN fuel lines and aftermarket injectors for your classic Volkswagen EA113 and EA888 4-cylinder engines.

Lightweight fuel rail compatible with VW 4-cylinder 16v EA113 / EA888 engines
For use with Bosch EV14 style injectors
AN-8 ORB threads at both ends allowing high fuel flow.
Delivered without brackets – custom brackets must be fabricated.
AN-6 ORB side outlet/inlet for optional applications.
Safe for all types of fuel, including alcoholic fuels such as E85.

The new generation of Nuke Performance Fuel Rails

Guarantees easy installation into your engine thanks to its extremely lightweight design. It utilizes the unique injector safety clips that Nuke Performance Fuel Rails have become famous for, ensuring a leak-free seal even in the event of a collision where the fuel rail might detach from the intake manifold. For the VW 16v engine, we do not provide the necessary brackets for installation; the installer will need to fabricate custom brackets. The fuel rail is equipped with two mounting points with M6 threads. Model-adapted fuel rail, delivered without mounting brackets. The Nuke Performance fuel rail for Volkswagen 4-cylinder 16v is delivered without the necessary brackets, which will need to be custom-made during installation.
Volkswagen EA113 R4 16v
Volkswagen EA888 R3/R4 16v

With AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters.
The fuel rails use AN-8 ORB threaded fittings at each end and also offers an additional side port with AN-6 ORB threading. We offer various fittings and our low-profile full-flow banjo fittings for a space-saving installation. AN-8 ORB main ports and AN-6 ORB side ports The fuel rail is delivered with an AN-6 ORB plug for the side port, but the main port fittings are sold as accessories.
AN-8 ORB to AN-6 Male Part No.: 700-04-104
AN-8 ORB to AN-8 Male Part No.: 700-04-105
AN-8 ORB to AN-10 Male Part No.: 700-04-106
AN-8 ORB to AN-6 Male Full Flow Banjo Part No.: 710-01-105
AN-8 ORB to AN-8 Male Full Flow Banjo Part No.: 710-01-106
AN-8 ORB to AN-10 Male Full Flow Banjo Part No.: 710-01-107
AN-8 ORB Plug Part No.: 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part No.: 700-04-129

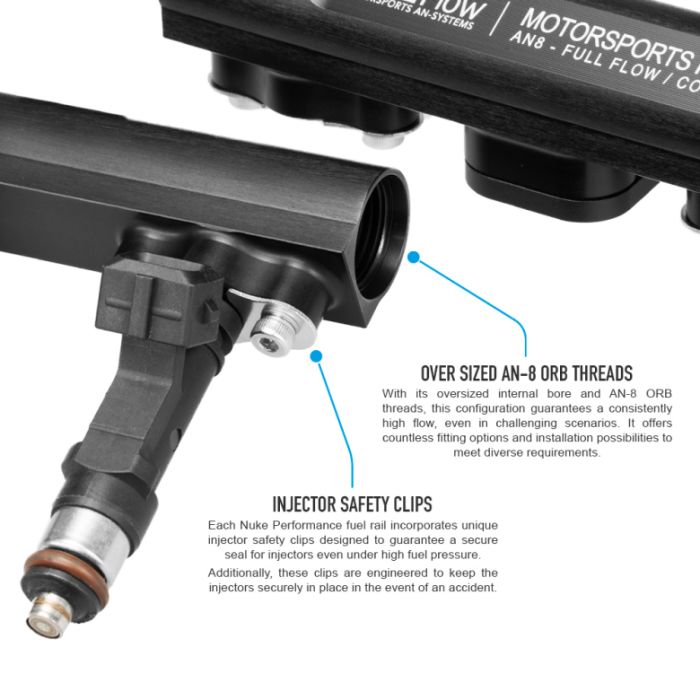

All Nuke Performance Fuel Rails use unique Injector Safety Clips guaranteeing a perfect seal in all conditions.
A distinguishing feature of Nuke Performance is the use of injector safety clips, designed to maintain an impeccable seal even under extreme fuel pressure.

Ensures a secure seal even during extreme fuel demands

Whether during assembly, engine installation, or in the unfortunate event of a crash, these clips ensure that the injectors remain firmly attached to the rail. This design prevents any fuel spillage, even in situations where the fuel pump continues to run or residual pressure remains in the fuel system. Designed and Developed in Sweden, ensuring the highest finish and quality. Developed and designed in Sweden by Nuke Performance. The fuel rail for Volkswagen 4-cylinder 16-valve is of the highest possible quality and features the same hallmark as all other lightweight motorsports products from Nuke Performance. Nuke Performance parts are developed in cooperation with motorsports teams worldwide and BMW experts, ensuring that the functionality and design meet the highest standards – and even create their own.
Order your replacement fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

Nuke Performance quality is unsurpassed.

Nuke Performance Fuel Rail for Volkswagen 4-cylinder 16-valve Specifications:

Delivered with brackets for	Delivered without brackets
Injector Type Specs	Bosch EV14 style
End Inlet/Outlet Threads	AN-8 ORB *
Additional Port Thread	AN-6 ORB *
Length	309.00 mm (12.16")	Height	32.00 mm (1.26")
Weight	295.00 g (10.40 oz)
Fuel Compatibility	Gasoline, Ethanol, E85, E100, Methanol
For Motorsports Use	YES
Replaces Old Part No.	100-08-201 **
Part No.	120-09-101
EAN	7340209501155

* Not included. Make sure to select necessary fittings when ordering.
** Previous generation fuel rail with different design and thread sizes

Nuke Performance Fuel Rail for Volkswagen 4-cylinder 16V includes:

• 1x AN-6 ORB plug
• 4x Nuke Performance Injector Safety Clips
• 8x Stainless Steel MC6S M4x6 mm screws
• 4x Stainless Steel K6S M6x10 mm screws
