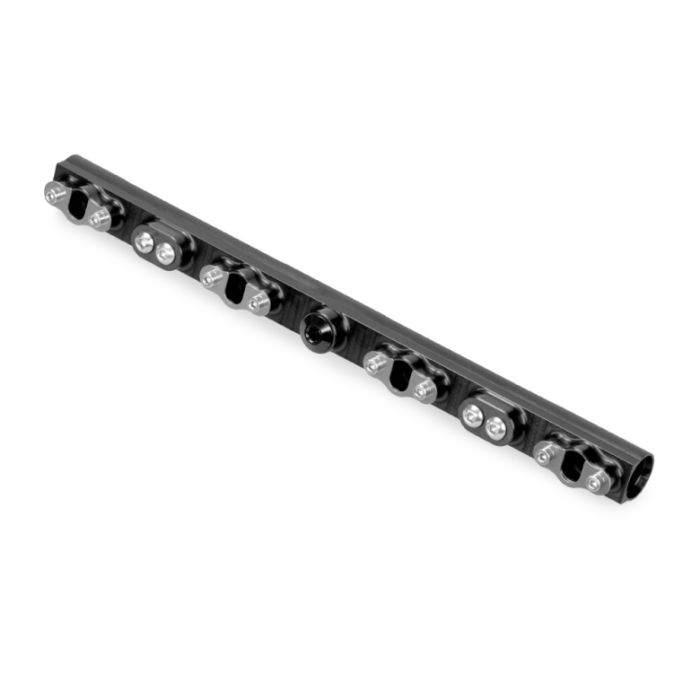

Nuke Performance Fuel Rail - No Brackets BMW M42 4-cylinder

Nuke Performance Fuel Rail for the BMW M42 4-cylinder engine, with oversized internal dimensions, lightweight design, and equipped with our unique injector safety clips.

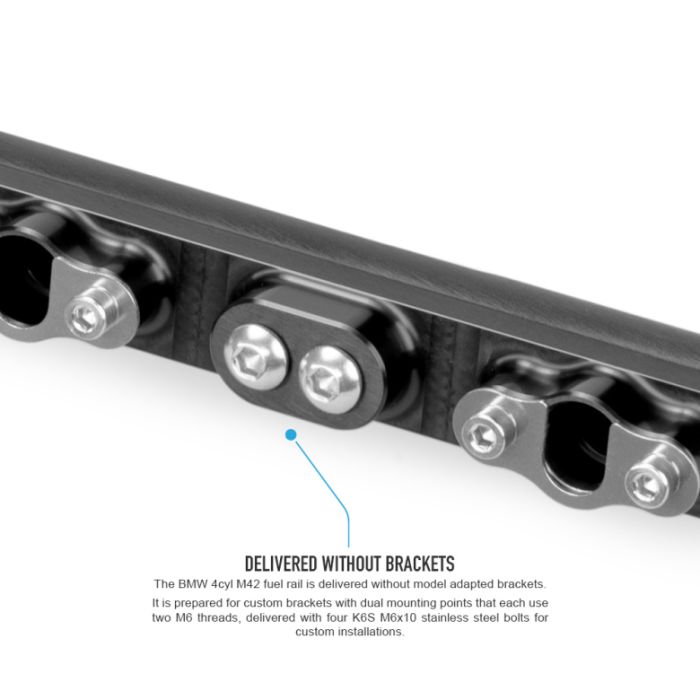

The fuel rail for the BMW M42 4-cylinder is delivered without model-adapted brackets but with M6 threads for fabricating and installing custom brackets.

The aftermarket fuel rail for the M42 engine allows you to install AN fuel lines and aftermarket injectors for your classic 4-cylinder BMW engine. Lightweight fuel rail that fits BMW M42 4-cylinder engines. For use with Bosch EV14 injectors. AN-8 ORB threads at both ends allow for high fuel flow. Delivered without brackets; custom brackets must be fabricated. AN-6 ORB side outlet/inlet for optional applications. Suitable for all types of fuels, including alcoholic fuels like E85. The new generation of Nuke Performance fuel rails ensures easy installation into your engine with an extremely lightweight design. It utilizes the unique injector safety clips that Nuke Performance fuel rails have become famous for, ensuring a leak-free seal even in the event of a collision where the fuel rail might detach from the intake manifold. For the BMW M42 engine, we do not provide the necessary brackets for installation; the installer will need to fabricate custom brackets. The fuel rail is equipped with two M6 threaded mounting points. Model-adapted fuel rail, delivered without mounting brackets. The Nuke Performance fuel rail for BMW M42 4-cylinder is delivered without the necessary brackets, which will need to be custom-fabricated during installation.
BMW M42B18 1989-1996

With AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters.
The fuel rails use AN-8 ORB threaded fittings at each end and also offer an additional side port with AN-6 ORB threading.
We offer various fittings and our low-profile full-flow banjo fittings for space-saving installation. AN-8 ORB main ports and AN-6 ORB side ports The fuel rail is delivered with an AN-6 ORB plug for the side port, but the main port fittings are sold as accessories.
AN-8 ORB to AN-6 Male Part No: 700-04-104
AN-8 ORB to AN-8 Male Part No: 700-04-105
AN-8 ORB to AN-10 Male Part No: 700-04-106
AN-8 ORB to AN-6 Male Full-Flow Banjo Part No: 710-01-105
AN-8 ORB to AN-8 Male Full-Flow Banjo Part No: 710-01-106
AN-8 ORB to AN-10 Male Full-Flow Banjo Part No: 710-01-107
AN-8 ORB Plug Part No: 700-04-116
AN-8 ORB to 1/8 NPT Female Adapter Part No: 700-04-129

All Nuke Performance fuel rails use unique injector safety clips that ensure a perfect seal in all conditions.
A distinguishing feature of Nuke Performance is the use of injector safety clips, designed to maintain an impeccable seal even under extreme fuel pressure.

Ensures a secure seal even during extreme fuel demands

Whether during engine assembly, installation, or in the unfortunate event of an accident, these clips ensure that the injectors remain firmly attached to the rail. This design prevents any fuel spillage, even in situations where the fuel pump continues to operate or residual pressure exists in the fuel system. Designed and developed in Sweden, ensuring the highest finish and quality. Developed and designed in Sweden by Nuke Performance. The fuel rail for the BMW M42 4-cylinder is of the highest quality and carries the same hallmark as all other lightweight motorsport products from Nuke Performance. Nuke Performance parts are developed in collaboration with motorsport teams worldwide and BMW experts, ensuring that functionality and design meet the highest standards—and even creating their own.
Order your replacement fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

Nuke Performance quality is second to none.

Specifications for Nuke Performance Fuel Rail for BMW M42 4-cylinder:

Delivered with brackets for	Delivered without brackets
Injector type specifications	Bosch EV14 style
End Inlet/Outlet Threads	AN-8 ORB *
Additional Port Thread	AN-6 ORB *
Length	318.00 mm (12.52")	Height	32.00 mm (1.26")
Weight	295.00 g (10.40 oz)
Fuel compatibility	Gasoline, Ethanol, E85, E100, Methanol
For motorsport use	YES
Replaces old part no.	100-02-204 **
Part No.	120-02-112
EAN	7340209501018

* Not included. Be sure to select necessary fittings when ordering.
** Previous generation fuel rail with different design and thread sizes

Nuke Performance Fuel Rail for BMW 4-cylinder M42 includes:

• 1 x AN-6 ORB plug
• 4 x Nuke Performance Injector Safety Clips
• 8 x Stainless Steel M4x6mm MC6S Screws
• 4 x Stainless Steel M6x10mm K6S Screws
