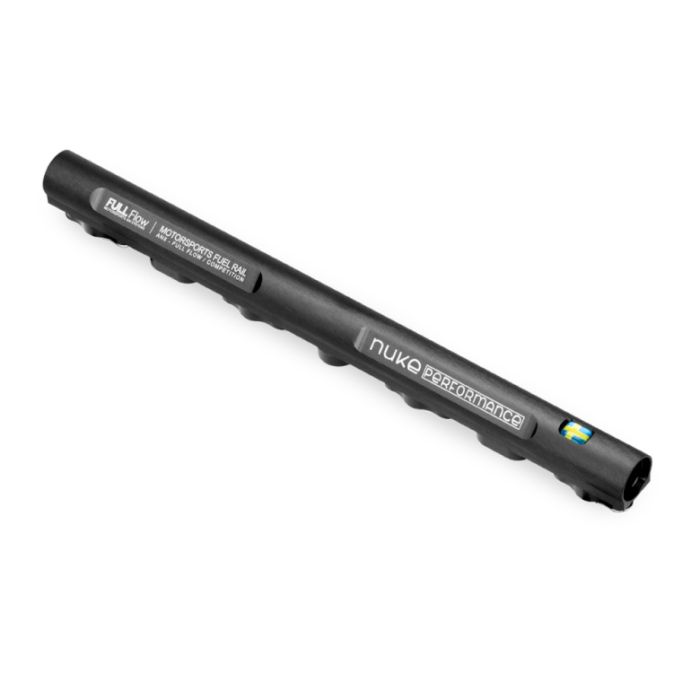

Nuke Performance Fuel Rail without brackets for BMW 4 cylinder M10 S14

The Nuke Performance fuel rail for the BMW M10 and S14 4-cylinder engines features oversized internal components, a lightweight design, and is equipped with our unique injector safety clips.

The fuel rail for BMW M10/S14 4-cylinder is delivered without model-specific brackets, but with M6 threads for fabricating and installing custom brackets. This aftermarket fuel rail for the M10 and S14 (E30 M3) engines allows you to install AN fuel lines and aftermarket injectors on your classic BMW 4-cylinder engine.

Lightweight fuel rail compatible with BMW M10/S14 4-cylinder engines

For use with Bosch EV14 injectors

AN-8 ORB threads at both ends for high fuel flow

Delivered without brackets; custom brackets required

AN-6 ORB side inlet/outlet for optional applications

Safe for all types of fuels, including alcohol-based fuels like E85

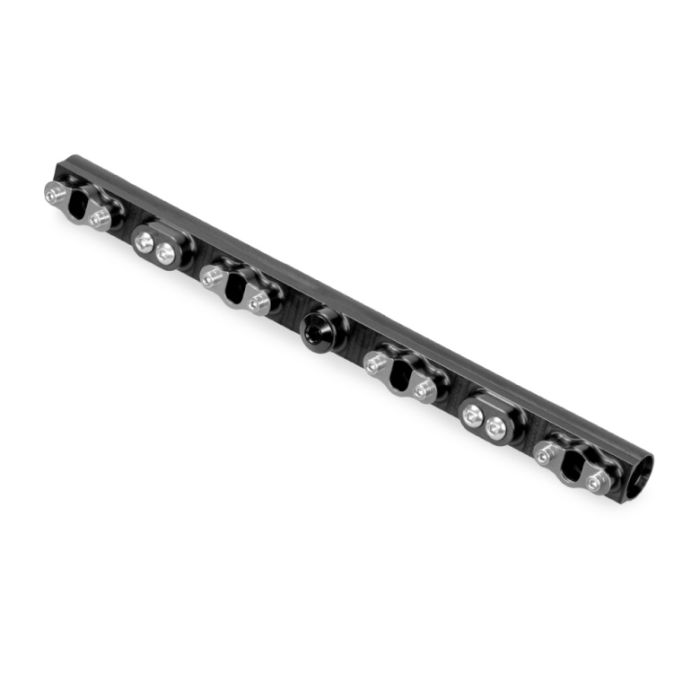

The new generation of Nuke Performance fuel rails offers easy installation on your engine thanks to its extremely lightweight design. It incorporates the unique injector safety clips that characterize Nuke Performance fuel rails, which ensure a tight seal even in the event of a collision, where the fuel rail might detach from the intake manifold. For BMW M10 and S14 engines, the necessary brackets for installation are not included; the installer will need to fabricate custom brackets. The fuel rail has two M6 threaded mounting points.

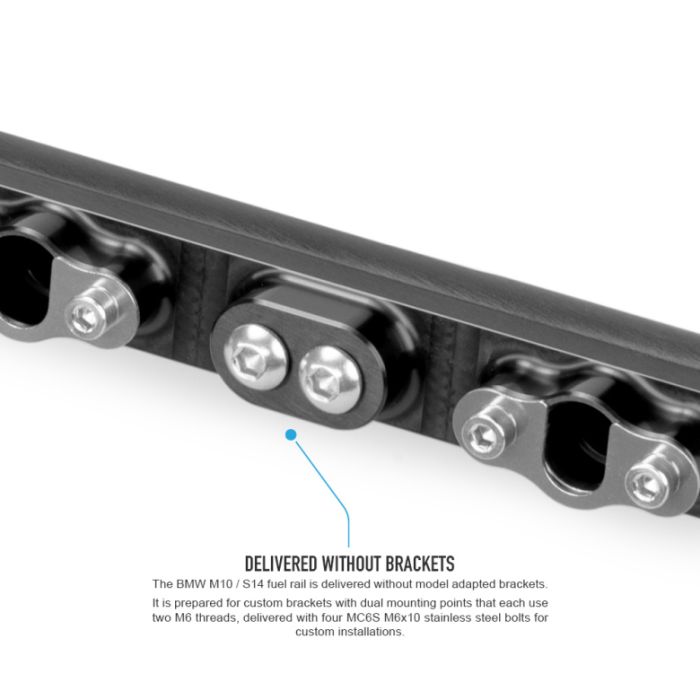

Model-adapted fuel rail, delivered without mounting brackets. The Nuke Performance fuel rail for BMW M10/S14 4-cylinder is delivered without the necessary brackets, which must be custom-made during installation.

BMW M10 1962-1988

BMW S14 (E30 M3) 1986-1991

Main AN-8 ORB connections and one AN-6 ORB side connection. We offer a wide range of fittings and adapters. The fuel rails use AN-8 ORB threaded connections at both ends and also offer an additional AN-6 ORB threaded side connection. We have various fittings and our full-flow low-profile banjo fittings for space-optimized installation.

Main AN-8 ORB connections and AN-6 ORB side connections

The fuel rail is delivered with an AN-6 ORB plug for the side connection, but connections for the main connection are sold separately.

AN-8 ORB to AN-6 Male Adapter, Part No.: 700-04-104

AN-8 ORB to AN-8 Male Adapter, Part No.: 700-04-105

AN-8 ORB to AN-10 Male Adapter, Part No.: 700-04-106

AN-8 ORB to AN-6 Male Full Flow Banjo Fitting, Part No.: 710-01-105

AN-8 ORB to AN-8 Male Full Flow Banjo Fitting, Part No.: 710-01-106

AN-8 ORB to AN-10 Male Full Flow Banjo Fitting, Part No.: 710-01-107

AN-8 ORB Connector, Part No.: 700-04-116

AN-8 ORB to 1/8 NPT Female Adapter, Part No.: 700-04-129

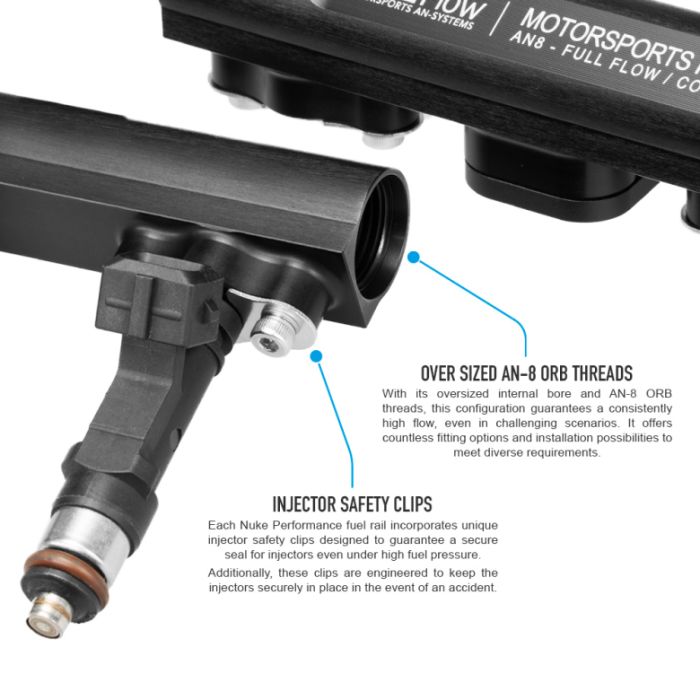

All Nuke Performance fuel rails use unique injector safety clips that ensure a perfect seal. A distinctive feature of Nuke Performance is the use of injector safety clips, designed to maintain a perfect seal even under extreme fuel pressure.

Ensures a secure seal even in high fuel demand situations.

Whether during assembly, engine installation, or in the event of an accident, these clips ensure that the injectors remain firmly attached to the rail. This design prevents any fuel spillage, even if the fuel pump is still running or there is residual pressure in the system.

Designed and developed in Sweden, ensuring maximum finish and quality. Developed and designed in Sweden by Nuke Performance. The fuel rail for BMW M10/S14 4-cylinder is of the highest quality and carries the same distinctive mark as all other lightweight motorsport products from Nuke Performance. Nuke Performance parts are developed in collaboration with motorsport teams worldwide and BMW experts, ensuring that functionality and design meet the highest standards, and even setting their own. Order your replacement fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.
Nuke Performance quality is unsurpassed. Specifications of the Nuke Performance fuel rail for BMW 4-cylinder M10/S14:

Delivered with brackets

Delivered without brackets

Injector Type
Bosch EV14 style

Inlet/Outlet Threads
AN-8 ORB *

Additional Port Thread
AN-6 ORB *

Length
345.00 mm (13.58")

Height
32.00 mm (1.26")

Weight
335.00 g (11.81 oz)

Fuel Compatibility
Gasoline, Ethanol, E85, E100, Methanol

For Competition Use
YES

Replaces old part no.

100-02-201 **

Part No.

120-02-115

EAN
7340209510898

* Not included. Please ensure you select the necessary fittings when ordering. ** (Old) Latest generation fuel rail with different design and threads

The Nuke Performance fuel rail for BMW 4-cylinder M10/S24 includes:

1 AN-6 ORB plug

4 Nuke Performance injector safety clips

8 stainless steel MC6S M4x6mm screws

4 stainless steel K6S M6x10mm screws
