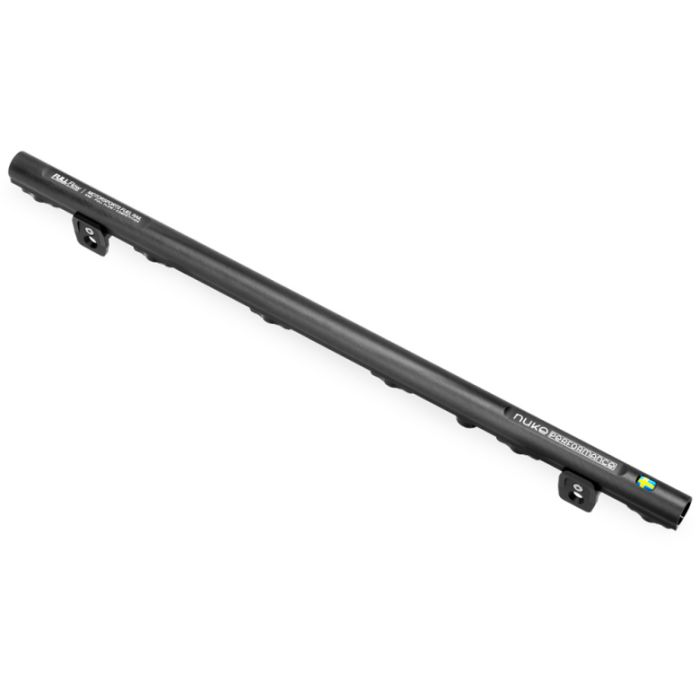

Nuke Performance Fuel Rail for Opel 6-cylinder C30SE C36GET

Nuke Performance Fuel Rail for Opel C30SE/C36GET 6-cylinder engines, with oversized internal components, lightweight design, and equipped with our unique injector safety clips.

The Opel C30SE 6-cylinder fuel rail includes brackets for Opel C30SE/C36GET engines and allows for the use of AN fuel lines and aftermarket injectors for your iconic Opel engines.

Lightweight fuel rail compatible with Opel C30SE/C36GET intake manifolds.
For use with Bosch EV14L injectors.
AN-8 ORB threads at both ends for high fuel flow.

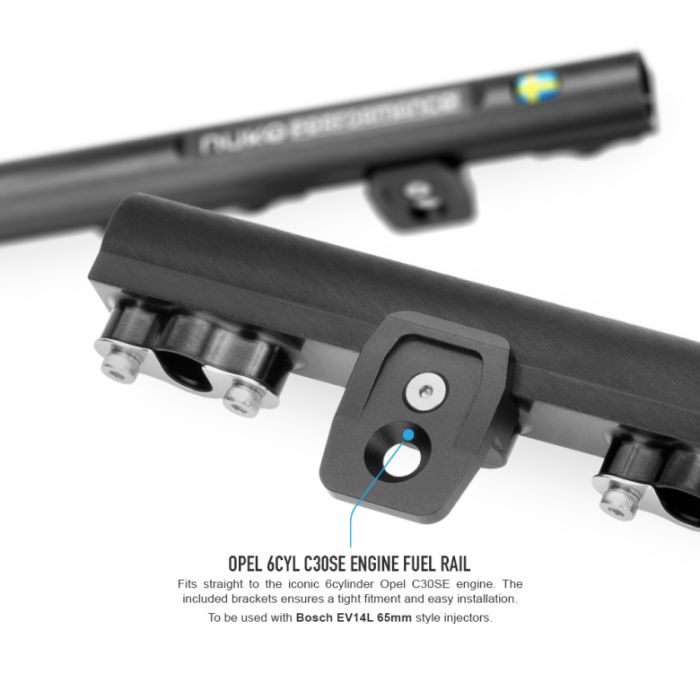

Includes brackets for easy mounting on C30SE and C36GET intake manifolds.
AN-6 ORB side inlet/outlet for optional applications.
Safe for all types of fuel, including alcohol-based fuels such as E85.

The new generation of Nuke Performance fuel rails ensures easy installation on your engine thanks to its extremely lightweight design. It utilizes the unique injector safety clips that characterize Nuke Performance fuel rails, ensuring a tight seal even in the event of a collision where the fuel rail might detach from the intake manifold.

Perfect fit for Opel C30SE/C36GET 6-cylinder engines. Includes the necessary fittings for mounting on the intake manifold. The Nuke Performance fuel rail for Opel C30SE/C36GET 6-cylinder is delivered with brackets for Opel 6-cylinder engines and is designed for use with Bosch EV14L (65mm) injectors.

Opel C30SE 1989-1994

Opel C36GET 1992-1996

This version only works with 14mm injectors, such as Bosch EV14L. Please note that this fuel rail is only compatible with Opel C30SE and C36GET engines. We also offer another fuel rail for the 4-cylinder C20Let engine.

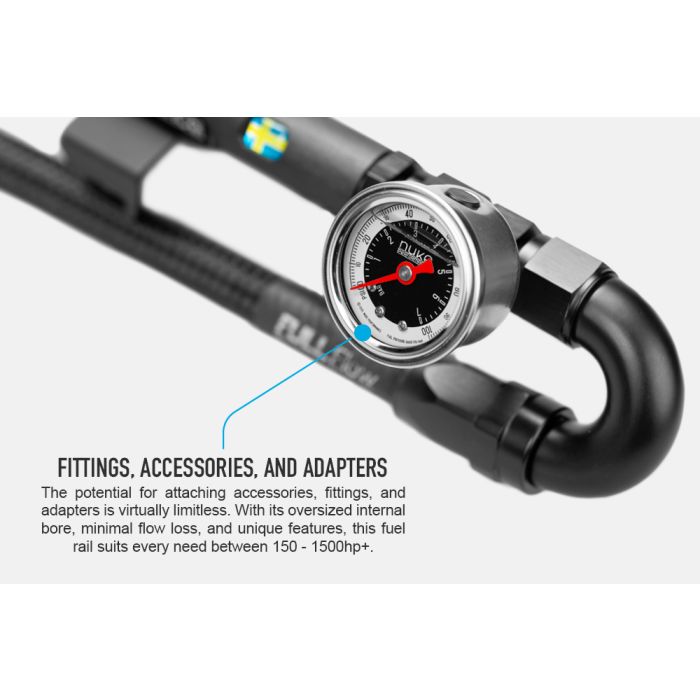

It features AN-8 ORB main ports and an AN-6 ORB side port. We offer a wide range of fittings and adapters. The fuel rail uses AN-8 ORB threaded fittings at both ends and offers an additional side port with AN-6 ORB thread. We provide various fittings, including our low-profile, full-flow banjo fittings for space-optimized installation.

AN-8 ORB main ports and AN-6 ORB side port

The fuel rail is delivered with two AN-6 ORB plugs for the side port, but fittings for the main port are sold separately.

AN-8 ORB to AN-6 Male Adapter, Part No: 700-04-104

AN-8 ORB to AN-8 Male Adapter, Part No: 700-04-105

AN-8 ORB to AN-10 Male Adapter, Part No: 700-04-106

AN-8 ORB to AN-6 Male Full Flow Banjo Fitting, Part No: 710-01-105

AN-8 ORB to AN-8 Male Full Flow Banjo Fitting, Part No: 710-01-106

AN-8 ORB to AN-10 Male Full Flow Banjo Fitting, Part No: 710-01-107

AN-8 ORB Connector, Part No: 700-04-116

AN-8 ORB to 1/8 NPT Female Adapter, Part No: 700-04-129

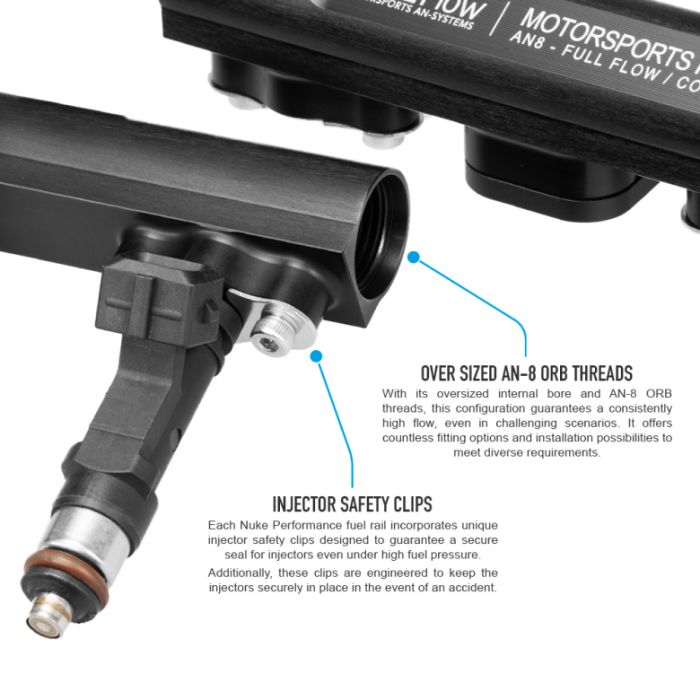

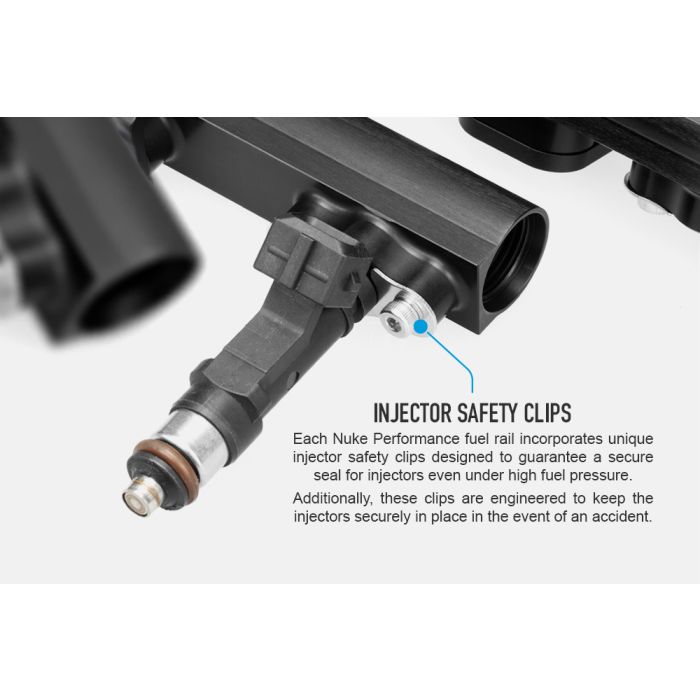

All Nuke Performance fuel rails use unique injector safety clips that ensure a perfect seal. A distinctive feature of Nuke Performance is the use of injector safety clips, designed to maintain a perfect seal even under extreme fuel pressure.

Ensures a secure seal even in high fuel demand situations.

Whether during assembly, engine installation, or in the event of an accident, these clips ensure that the injectors remain firmly attached to the rail. This design prevents any fuel spillage, even if the fuel pump is still running or there is residual pressure in the system.

Designed and developed in Sweden, guaranteeing maximum finish and quality. Developed and designed in Sweden by Nuke Performance. The fuel rail for Opel C30SE/C36GET 6-cylinder is of the highest quality and bears the same hallmark as all other lightweight motorsport products from Nuke Performance. Nuke Performance parts are developed in collaboration with motorsport teams worldwide and tuning experts, ensuring that both functionality and design meet the highest standards, and even setting their own. Order your aftermarket fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

The quality of Nuke Performance is unsurpassed.

Specifications for Nuke Performance Fuel Rail for Opel C30SE/C36GET 6-cylinder: For more information on specifications, see the product sheet.

Delivered with brackets for

Opel 6-cylinder C30SE 1989-1993, Opel 6-cylinder C36GET 1992-1996

Injector specifications
Bosch EV14 L-style

Inlet/outlet threads
AN-8 ORB *

Additional port thread
AN-6 ORB *

Length
570.00 mm (22.44") / unit

Height
32.00 mm (1.25")

Weight
493.00 g (17.39 oz) / unit

Fuel compatibility
Gasoline, ethanol, E85, E100, methanol

For use in motorsport
YES

Part No.
120-13-101

EAN
7340209509397

* Not included. Please make sure to select the necessary fittings when ordering.
Nuke Performance Fuel Rail for Opel C30SE/C36GET 6-cylinder includes:

1 AN-8 ORB full flow fuel rail for Opel C30SE/C36GET engines

2 aluminum brackets for Opel C30SE/C36GET 6-cylinder engines

1 AN-6 ORB plug

6 Nuke Performance injector safety clips

12 M4x6mm stainless steel MC6S screws

2 M6x16mm stainless steel MF6S screws

2 M4x10 stainless steel MF6S screws
