Nuke Performance Fuel Rail for Nissan 4-cylinder SR20DET S14 S15

Nuke Performance top feed conversion fuel rail for Nissan SR20DET 4-cylinder engines (S14/S15) features oversized internals, a lightweight design, and is equipped with our unique injector safety clips.

The fuel rail for Nissan SR20DET 4-cylinder (S14/S15) includes brackets for the Nissan SR20DET engines (S14 and S15 versions only), allowing you to use AN fuel lines and aftermarket injectors for your classic Nissan engine in the S14 and S15 chassis.

Lightweight fuel rail compatible with Nissan SR20DET (S14/S15) intake manifold
For use with Bosch EV14 K-style injectors

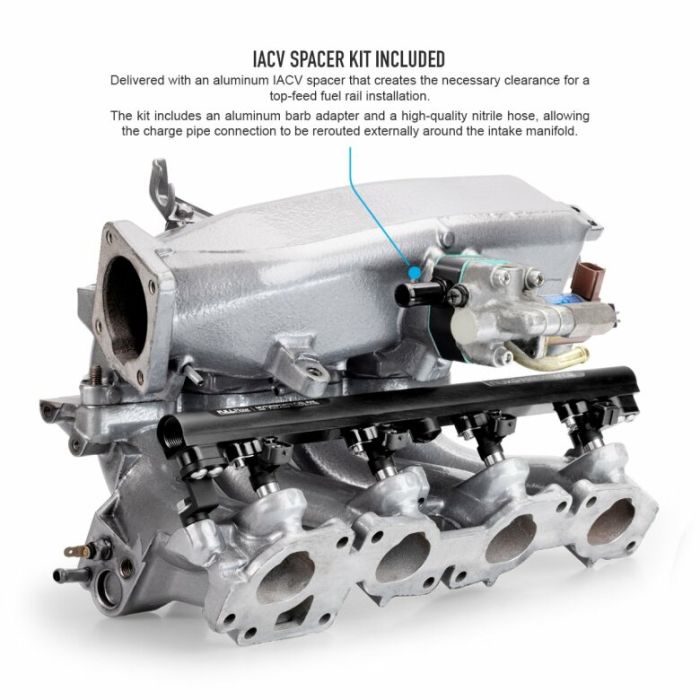

Includes IACV spacer for necessary clearance

AN-8 ORB threads at both ends for high fuel flow

Includes brackets for easy mounting to the intake manifold

AN-6 ORB side inlet/outlet for optional applications

Compatible with all types of fuels, including alcohol-based fuels such as E85

The new generation of Nuke Performance fuel rails offers easy installation on your engine thanks to its extremely lightweight design. It incorporates the unique injector safety clips that characterize Nuke Performance fuel rails, which ensure a tight seal even in the event of a collision, where the fuel rail might detach from the intake manifold.
Perfect fit for Nissan SR20DET (S14/S15) engines, delivered with the necessary accessories for mounting to the intake. The Nuke Performance fuel rail for Nissan SR20DET 4-cylinder (S14/S15) is delivered with brackets and accessories for the original intake.

Nissan S14 SR20DET

Nissan S15 SR20DET

Please note that this fuel rail is not compatible with the S13 SR20DET engine. This version includes what is needed for the IACV system; we also offer a version without IACV. This version only works with 14mm injectors, such as Bosch EV14K injectors.

Features AN-8 ORB main ports and an AN-6 ORB side port; we offer a wide range of fittings and adapters.

The fuel rail uses AN-8 ORB threaded fittings at both ends and offers an additional side port with AN-6 ORB thread. We offer various fittings and our low-profile, full-flow banjo fittings for space-optimized installation.

AN-8 ORB main ports and AN-6 ORB side port

The fuel rail is delivered with two AN-6 ORB plugs for the side port, but fittings for the main port are sold as accessories.

AN-8 ORB to AN-6 male adapter, part no: 700-04-104

AN-8 ORB to AN-8 male adapter, part no: 700-04-105

AN-8 ORB to AN-10 male adapter, part no: 700-04-106

AN-8 ORB to AN-6 male full-flow banjo fitting, part no: 710-01-105

AN-8 ORB to AN-8 male full-flow banjo fitting, part no: 710-01-106

AN-8 ORB to AN-10 male full-flow banjo fitting, part no: 710-01-107

AN-8 ORB connector, part no: 700-04-116

AN-8 ORB to 1/8 NPT female adapter, part no: 700-04-129

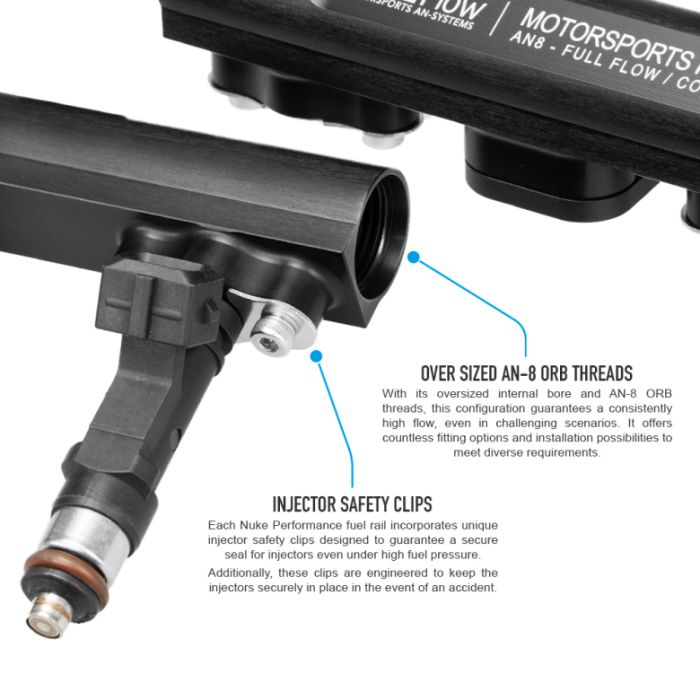

All Nuke Performance fuel rails use exclusive injector safety clips that ensure a perfect seal. A distinctive feature of Nuke Performance is the use of injector safety clips, designed to maintain a perfect seal even under extreme fuel pressure.

Ensures a secure and reliable seal even in high-demand fuel situations.

Whether during assembly, engine installation, or in the event of an accident, these clips ensure that the injectors remain firmly attached to the rail. This design prevents any fuel leakage, even if the fuel pump continues to operate or there is residual pressure in the system.

Designed and developed in Sweden, guaranteeing maximum finish and quality.

Developed and designed in Sweden by Nuke Performance. The fuel rail for the Nissan SR20DET 4-cylinder engine (S14/S15) is of the highest quality and bears the same distinctive hallmark as all other lightweight motorsport products from Nuke Performance. Nuke Performance parts are developed in collaboration with motorsport teams and experts from around the world, ensuring that both functionality and design meet the highest standards, and even set their own. Order your replacement fuel rail today and experience the convenience and safety of our easy-to-install fuel rails. Specifications of the Nuke Performance fuel rail for Nissan SR20DET 4-cylinder (S14/S15):

Includes brackets for:

Nissan S14 SR20DET

Injector type:
Bosch EV14 K-style

Inlet/outlet threads:
AN-8 ORB *

Additional port thread:
AN-6 ORB *

Length:
402.00 mm (15.83")

Height:
32.00 mm (1.25")

Weight:
353.00 g (12.45 oz)

Fuel compatibility:
Gasoline, ethanol, E85, E100, methanol

For competition use:
YES

Part no:
120-06-103

EAN:
7340209510416

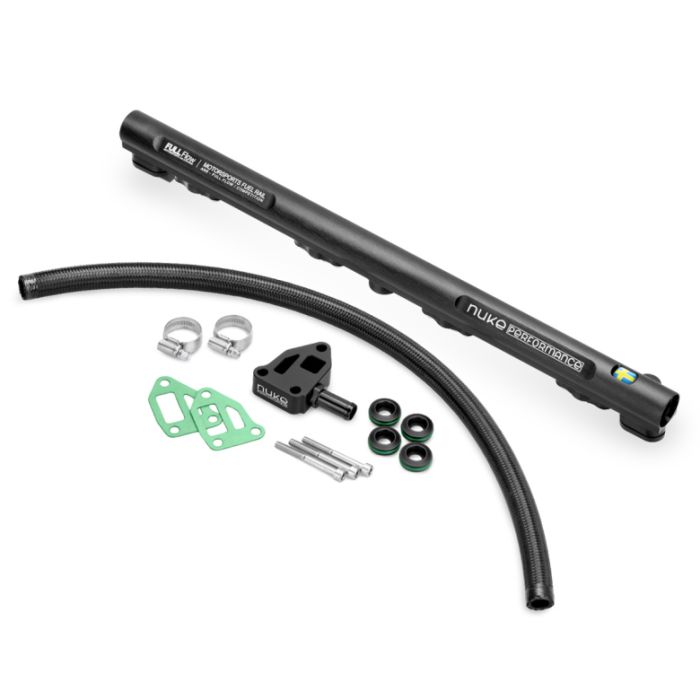

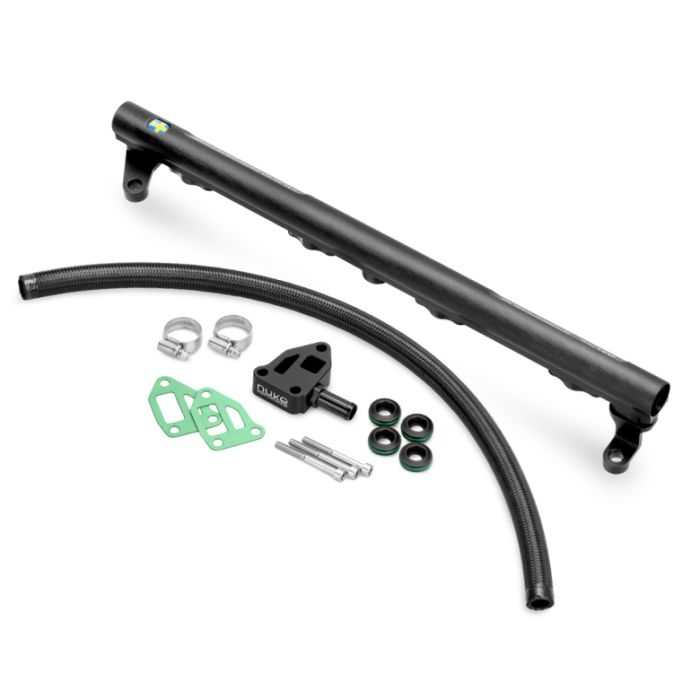

Nuke Performance for Nissan SR20DET 4-cylinder fuel rail (S14/S15) includes:

1 AN-8 ORB full-flow fuel rail for Nissan SR20DET (S14/S15)

2 aluminum brackets for Nissan SR20DET (S14/S15) intake

1 AN-6 ORB plug

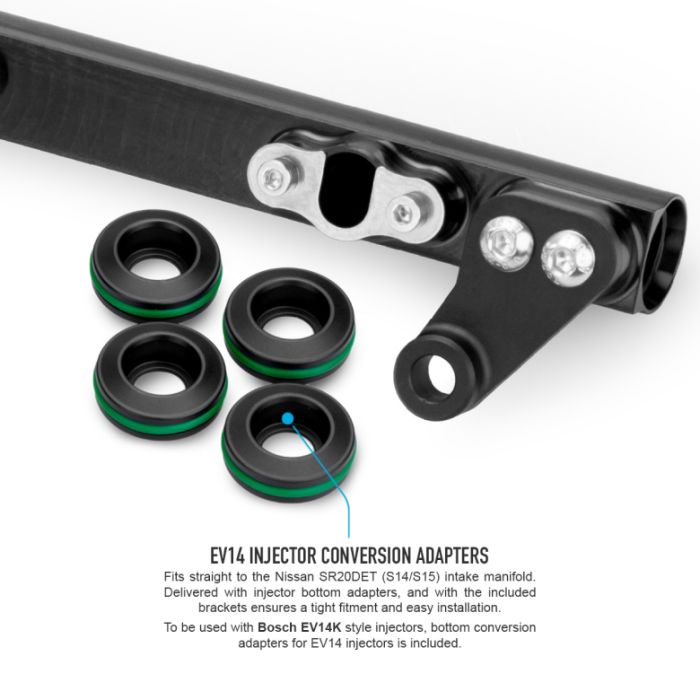

4 injector conversion adapters with O-rings

4 Nuke Performance injector safety clips

8 stainless steel MC6S M4x6mm screws

2 stainless steel M6SF M8x20 screws

3 stainless steel MC6S M6x55 screws

1 IACV spacer with 14mm outlet

2 gaskets for IACV spacer

1 50 cm nitrile hose for charge pipe redirection

2 stainless steel hose clamps
