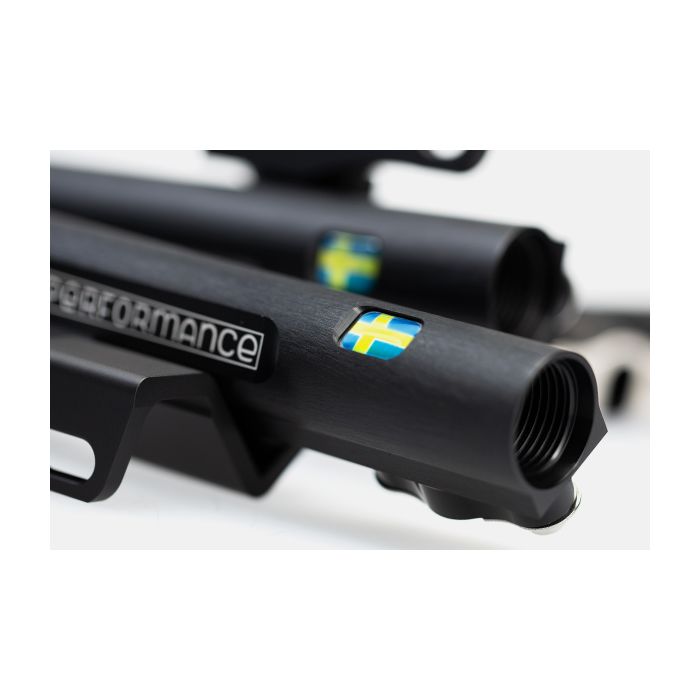

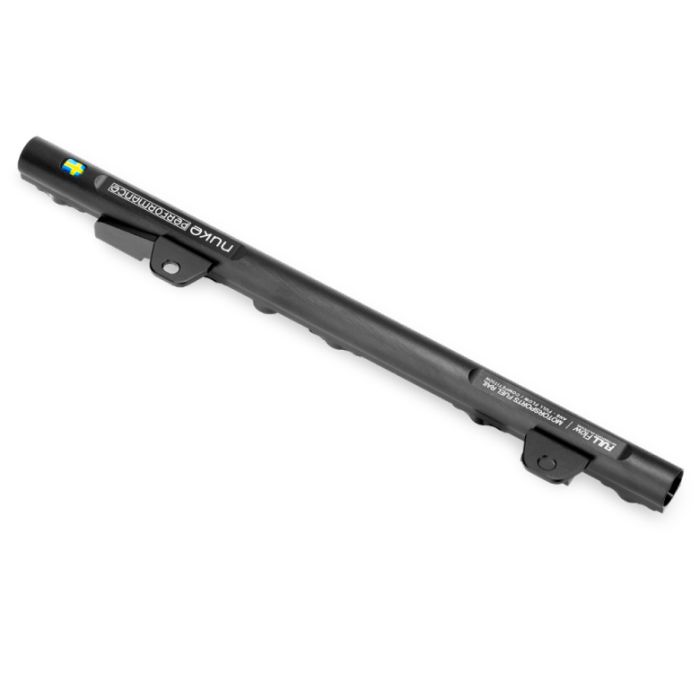

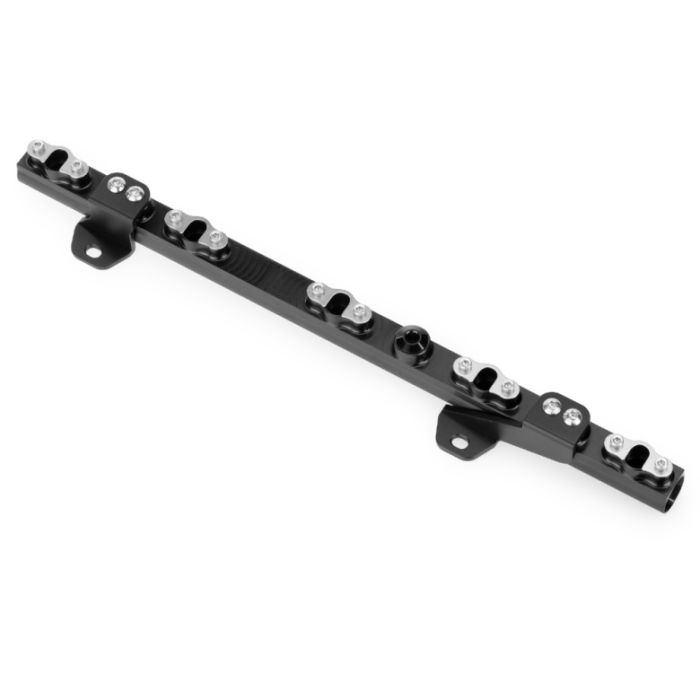

Nuke Performance fuel rail for Volvo 5-cylinder white engine

Nuke Performance fuel rail for the Volvo 5-cylinder engine (white block), found in Volvo 850, S70, V70, V70N, C70, S60, and S80 models. Features oversized internals, lightweight design, and is equipped with our unique injector safety clips.

The fuel rail for the Volvo 5-cylinder engine (white block) includes mounts for the original Volvo intake manifold and allows the use of AN fuel lines and aftermarket injectors for your 5-cylinder/T5 Volvo engine.

Lightweight fuel rail compatible with Volvo 6-cylinder white block engines.
For use with Bosch EV14L* injectors.
AN-8 ORB threads at both ends for high fuel flow.
Includes brackets for easy mounting on the original intake manifold.
AN-6 ORB side inlet/outlet for optional applications.
Suitable for all fuel types, including alcohol-based fuels such as E85.

*This fuel rail is designed for use with EV14L (long) 65mm injectors. If other injectors are used, the included brackets are not compatible.

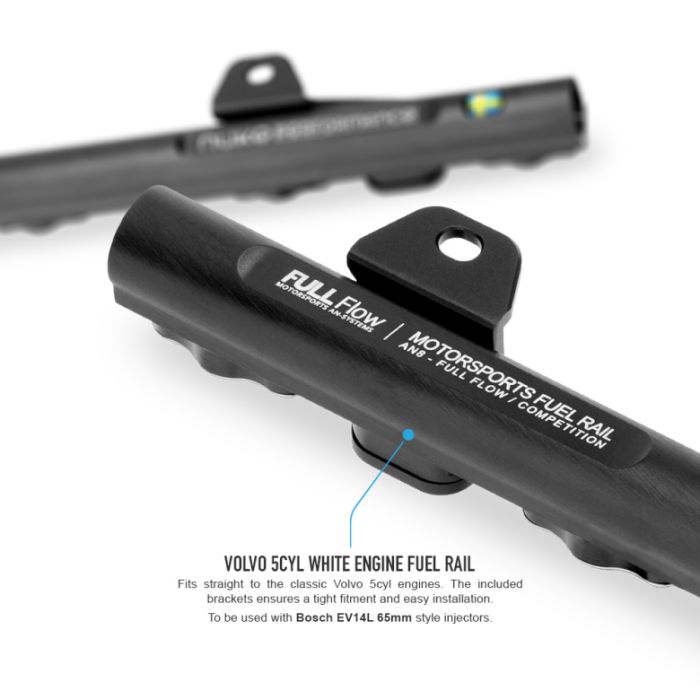

The new generation of Nuke Performance fuel rails offers easy installation in your engine thanks to their extremely lightweight design. They incorporate the unique injector safety clips that characterize Nuke Performance fuel rails, ensuring a tight seal even in the event of a collision, where the fuel rail might detach from the intake manifold. Perfect fit for a 5-cylinder Volvo white block engine. Includes the necessary hardware for mounting to the intake. The Nuke Performance fuel rail for Volvo 5-cylinder white block engines comes with brackets for this engine. The fuel rail is equipped with brackets compatible with the following models and years:

S/V/C70, 850, S60, S80, V70N white block

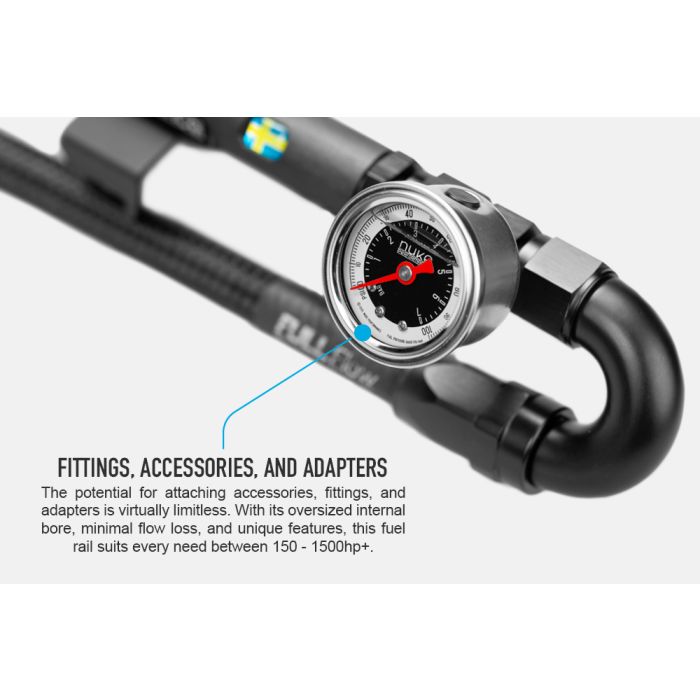

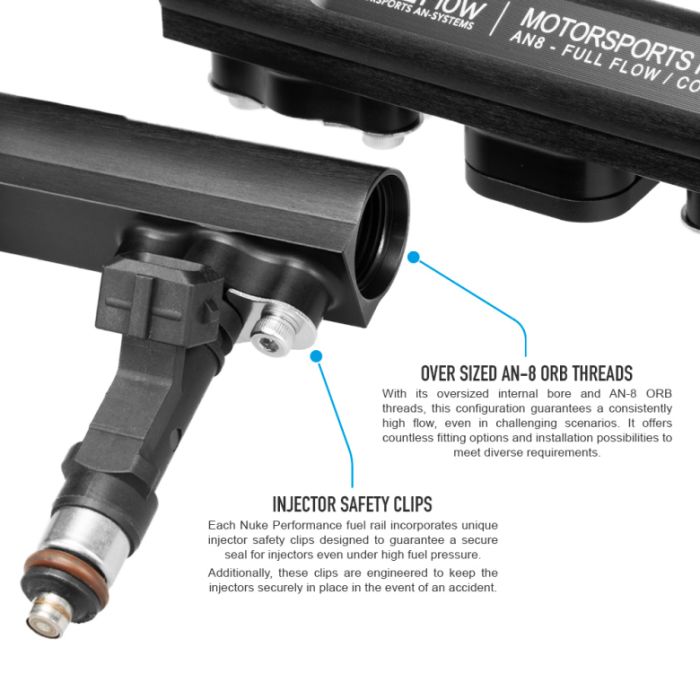

With AN-8 ORB main ports and an AN-6 ORB side port, we offer a wide range of fittings and adapters. The fuel rail uses AN-8 ORB threaded fittings at both ends and also features an additional side port with AN-6 ORB thread. We offer a wide variety of fittings, including our low-profile, full-flow banjo fittings for space-optimized installation.

AN-8 ORB main ports and AN-6 ORB side port

The fuel rail comes with an AN-6 ORB plug for the side port, but the main port fittings are sold as accessories. AN-8 ORB to AN-6 Male Part No.: 700-04-104 AN-8 ORB to AN-8 Male Part No.: 700-04-105 AN-8 ORB to AN-10 Male Part No.: 700-04-106 AN-8 ORB to AN-6 Male Full Flow Banjo Part No.: 710-01-105 AN-8 ORB to AN-8 Male Full Flow Banjo Part No.: 710-01-106 AN-8 ORB to AN-10 Male Full Flow Banjo Part No.: 710-01-107 AN-8 ORB Plug Part No.: 700-04-116 AN-8 ORB to 1/8 NPT Female Adapter Part No.: 700-04-129

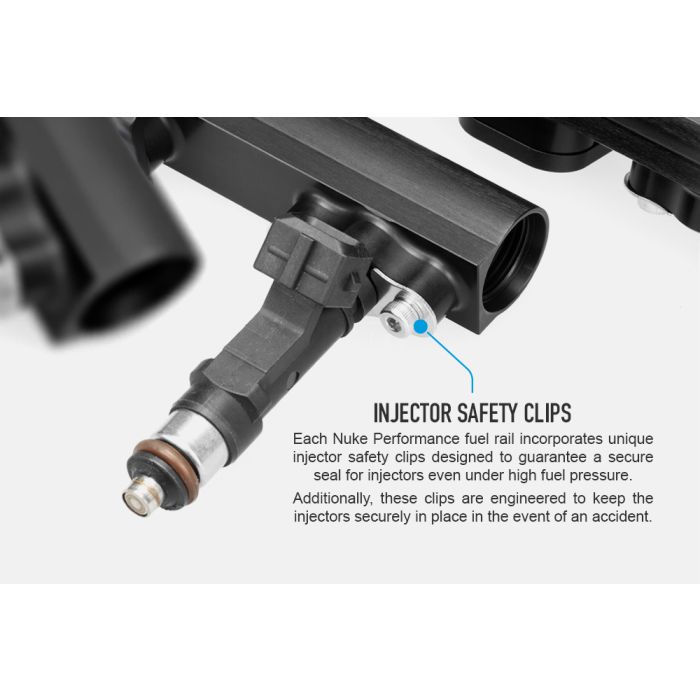

All Nuke Performance fuel rails use exclusive injector safety clips that ensure a perfect seal under any conditions. A distinctive feature of Nuke Performance is the use of these clips, designed to maintain an impeccable seal even under extreme fuel pressure.

Guarantees a secure and reliable seal even in high fuel demand situations.

Whether during assembly, engine installation, or in the event of an accident, these clips ensure that the injectors remain firmly attached to the rail. This design prevents any fuel spill, even if the fuel pump continues to operate or there is residual pressure in the system.

Designed and developed in Sweden, ensuring maximum finish and quality. Developed and designed in Sweden by Nuke Performance. The fuel rail for the Volvo 5-cylinder white block engine is of the highest quality and bears the same distinctive mark as all other lightweight motorsport products from Nuke Performance. Nuke Performance parts are developed in collaboration with motorsport teams worldwide, ensuring that both functionality and design meet the highest standards, and even set their own. Order your replacement fuel rail today and experience the convenience and safety of our easy-to-install fuel rails.

Nuke Performance quality is unsurpassed.

Nuke Performance fuel rail specifications for Volvo 5-cylinder engine (white block): For more information on specifications, please refer to the product sheet.

Comes with brackets for

5-cylinder white block

Injector specifications
Bosch EV14 L-style

Inlet/outlet threads
AN-8 ORB *

Additional port thread
AN-6 ORB *

Length
409.00 mm (16.10")

Height
32.00 mm (1.25")

Weight
355.00 g (12.52 oz)

Fuel compatibility
Gasoline, ethanol, E85, E100, methanol

For motorsport use
YES

Replaces old part no.

100-01-203 **

Part no.

120-04-104

EAN
7340209501063

* Not included. Please make sure to select the necessary fittings when ordering. ** Previous generation fuel rail with 3/4 UNF threads and no mounting brackets. The Nuke Performance fuel rail for Volvo 5-cylinder white block engines includes:

1 AN-8 ORB full-flow fuel rail for Volvo 5-cylinder white block engine

2 aluminum brackets for Volvo 5-cylinder white block engine

1 AN-6 ORB plug

5 Nuke Performance injector safety clips

10 stainless steel MC6S M4x6mm screws

4 stainless steel K6S M6x10mm screws
