Nuke Performance Fuel Surge Tank, 4-Port AN-8 ORB

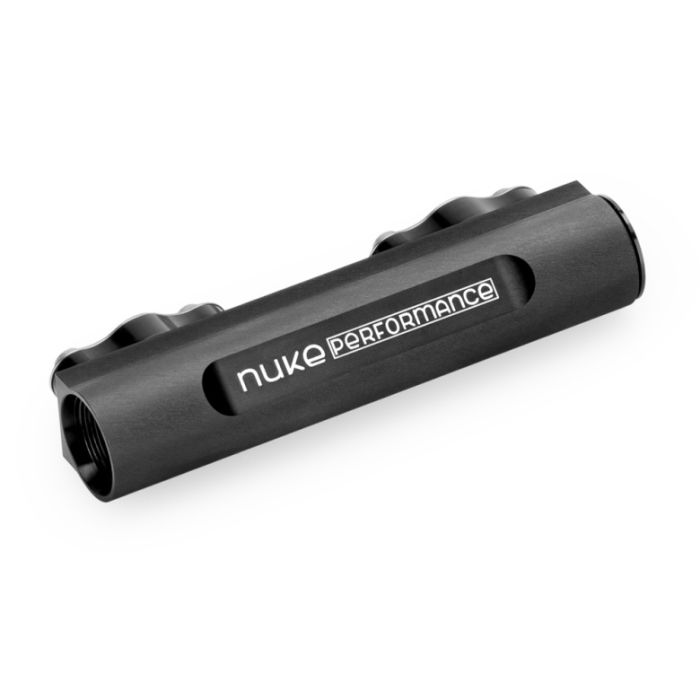

Nuke Performance Generation II 4-port AN-8 ORB Fuel Manifold. A compact manifold that offers flexibility when setting up a fuel system with in-line pumps or filters.

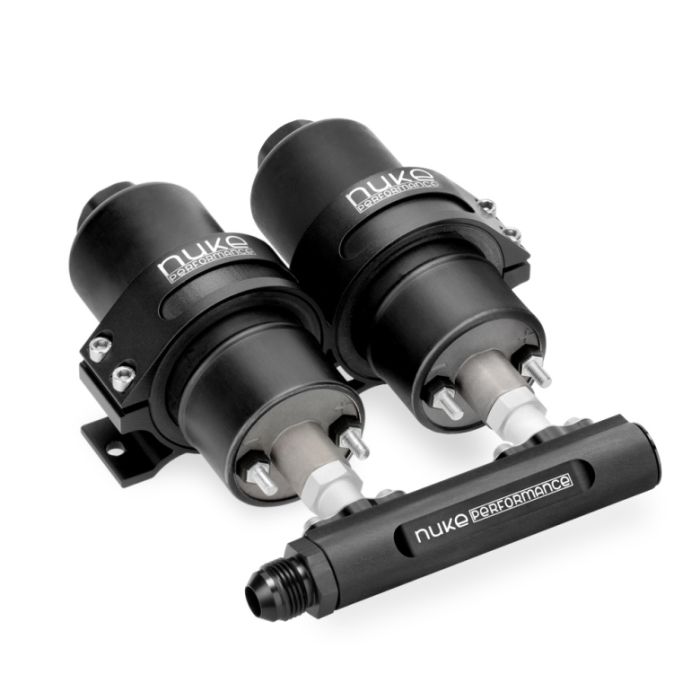

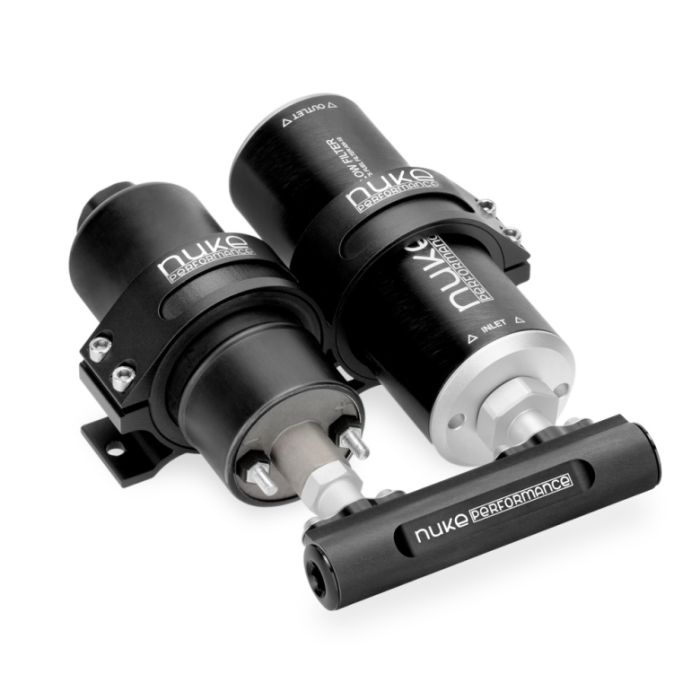

The Nuke Performance fuel manifold makes it easy to combine two in-line fuel pumps into a single AN-8 ORB outlet. You can also opt for a single fuel pump connected to an in-line fuel filter, resulting in a safe and space-saving setup.

AN-8 ORB outlets at each end of the manifold.
Different size inlet adapters available.
Lightweight and compact design.
Suitable for all fuels, including E85.
Includes 1x AN-8 ORB plug.

The Nuke Performance next generation 4-port AN-8 ORB Fuel Manifold includes 1x AN-8 ORB plug for one of the outlets. The open AN-8 ORB outlet offers a wide range of connection options. The open AN-8 port should be plugged if a setup with one fuel pump and one fuel filter is used.

Wide range of adapters for various configurations, such as Bosch 044, Deatschwerks DW350il, and Walbro GSL392 in-line fuel pumps.

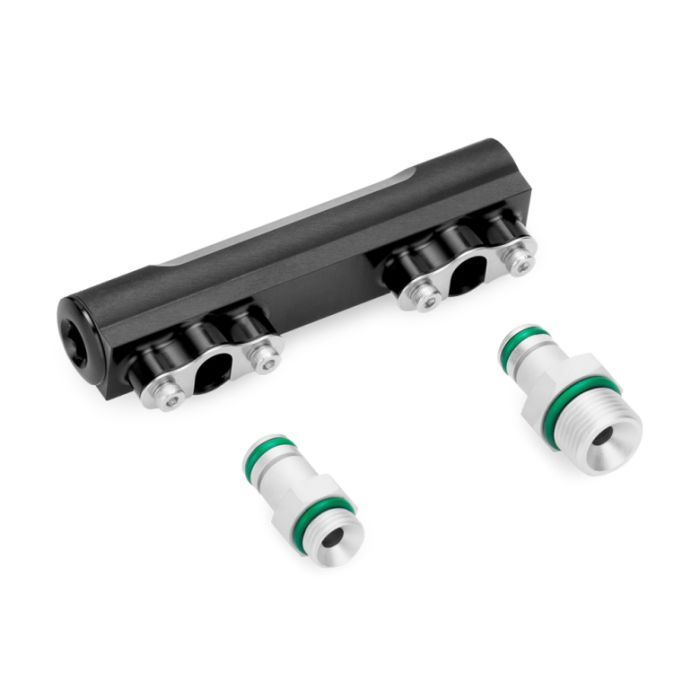

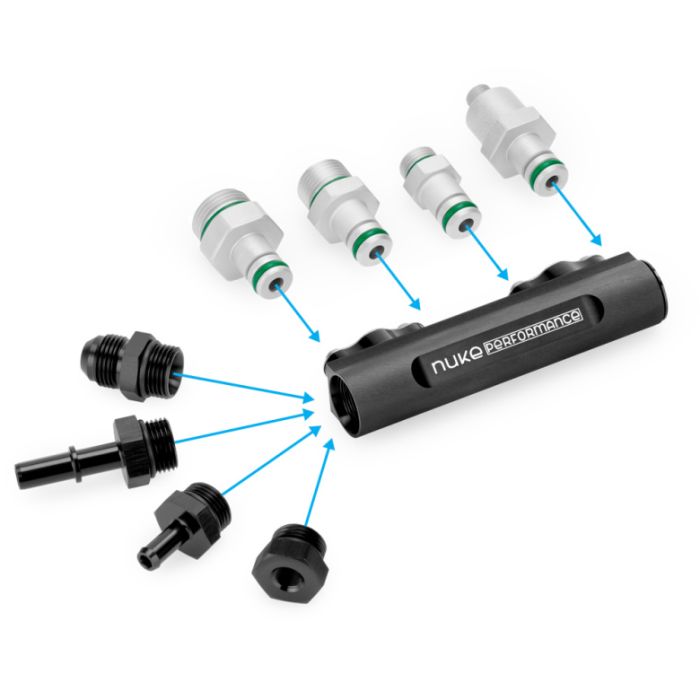

Choose between the different inlet adapters available: AN-6 ORB, AN-8 ORB, AN-10 ORB, M10x1.0mm, and M12x1.5mm. Select your preferred connection size for both fuel filter inlet ports when placing your order.

AN-6 ORB 1200-20-003

Deatschwerks DW250ilAEM 400L

AN-8 ORB 1200-20-004

Deatschwerks DW350ilDeatschwerks DW650ilBrushless

AN-10 ORB 1200-20-005

Nuke Performance in-line fuel filters

M10x1.0 1200-20-007

Bosch 200 (without check valve)Bosch 044 (with check valve)Walbro GSL 391/392/393/394/395/396

M12x1.5 1200-20-006
Bosch 200 (with check valve)Bosch 044 (without check valve)

Fittings for the fuel manifold are not included and must be purchased separately. Make sure you select the correct option when placing your order.

The fuel manifold, along with Nuke Performance's lightweight brackets, ensures a precise and efficient fuel installation.

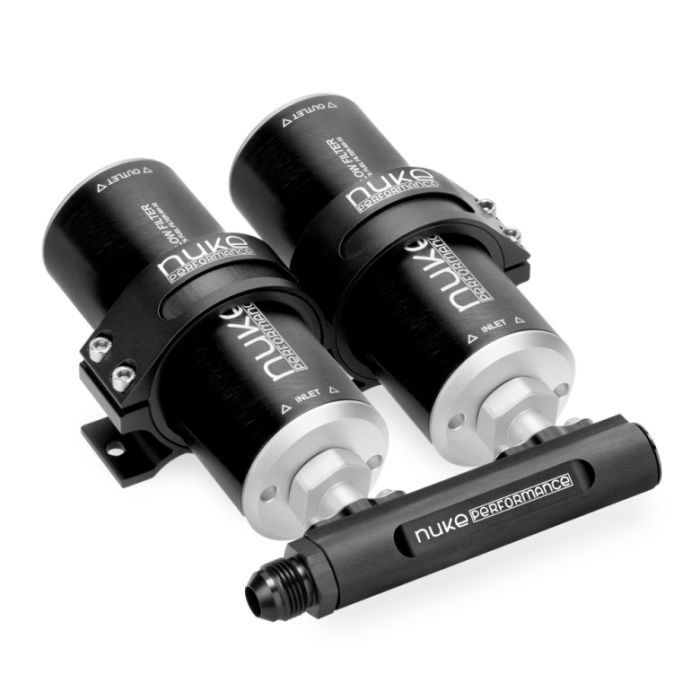

Combined with the Nuke Performance universal bracket, which offers various adapters for common fuel pumps, and the Nuke Performance Slim series of in-line filters, the fuel manifold gives you diverse configuration options for your fuel system.

Universal dual bracket (with Bosch 044 inserts) Part #: 950-02-201

Universal dual bracket (with fuel filter inserts) Part #: 950-02-212

Single insert for Walbro GSL392 (43mm) Part #: 960-01-101

Single insert for Nuke Slim series fuel filter (55mm) Part #: 960-01-102

Single insert for Bosch 044 (60mm - included with bracket) Part #: 960-01-103

Single insert for Deatschwerks DW250il (52mm) Part #: 960-01-104

Nuke Performance 4-port AN-8 ORB Fuel Manifold. Specifications:

Inlet Ports:

2x injector size ports *

Outlet Ports:

AN-8 ORB - 1x plug included

Center distance of inlet ports
70.0 mm (2.75")

Length

115.0 mm (4.53")

Weight

95g (3.35oz)

For motorsport use
YES

Fuel compatibility
Gasoline, methanol, ethanol

Replaces old part #'s

700-01-110, 700-01-111, 100-10-202, 100-10-203, 100-10-204, 100-10-205, 100-10-206 **

Part #

125-01-201

EAN
7340209501391

* Fuel manifold fittings are not included and must be purchased separately.** Previous generation 3/4 UNF, no longer available.
The Nuke Performance 4-port AN-8 ORB Fuel Manifold includes:

1 x AN-8 ORB Fuel Manifold body

2 x Stainless steel mounting clips

4 x Stainless steel M4x6mm MC6S screws

1 x AN-8 ORB plug
