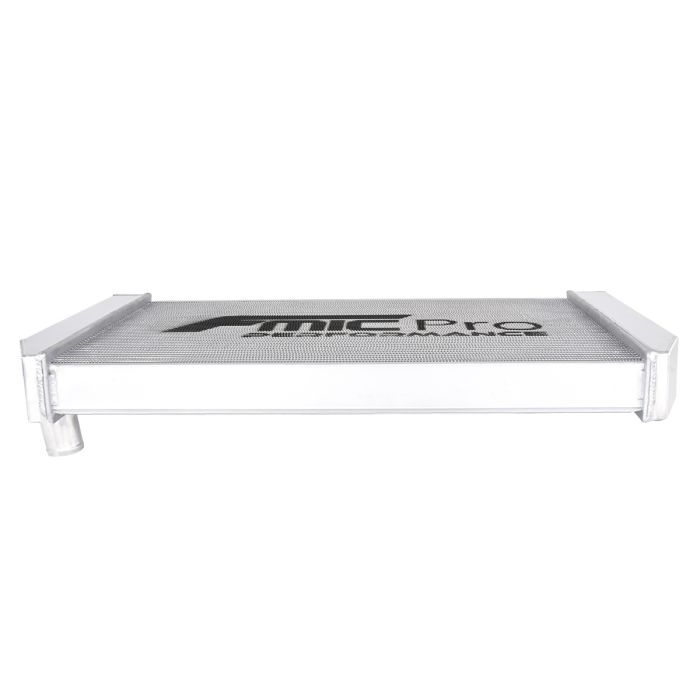

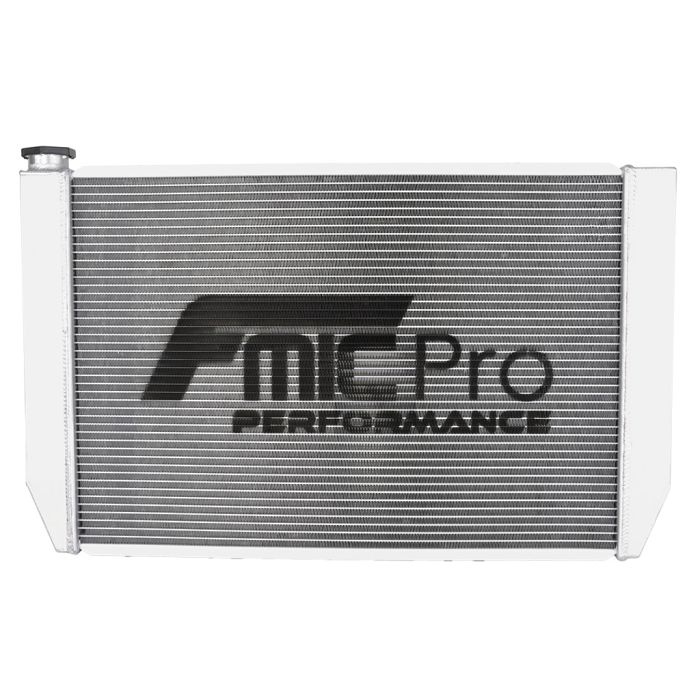

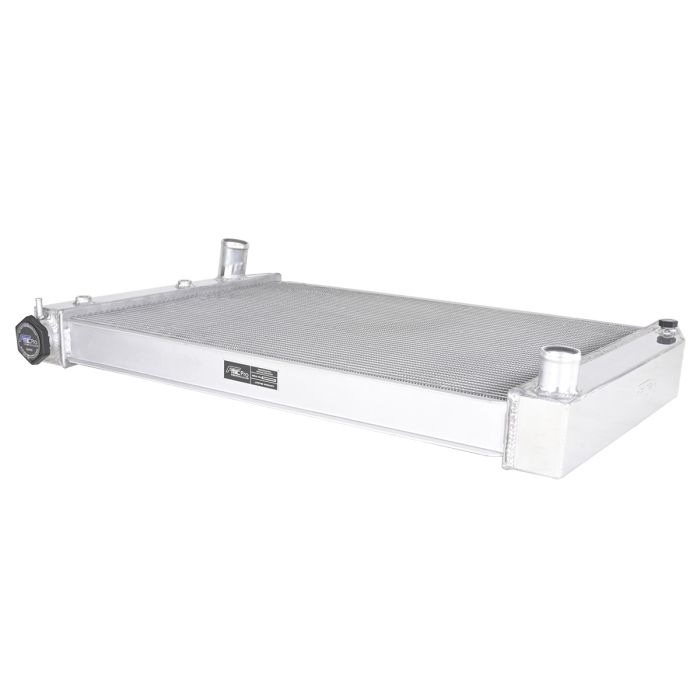

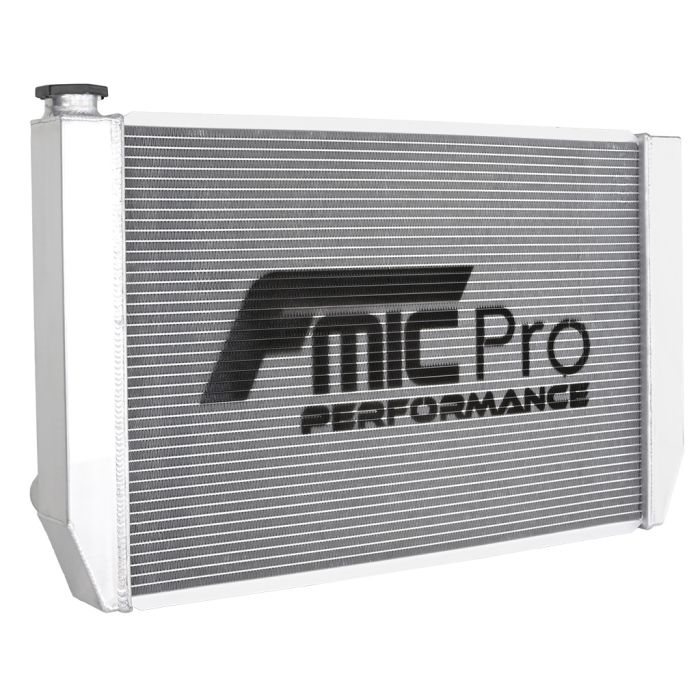

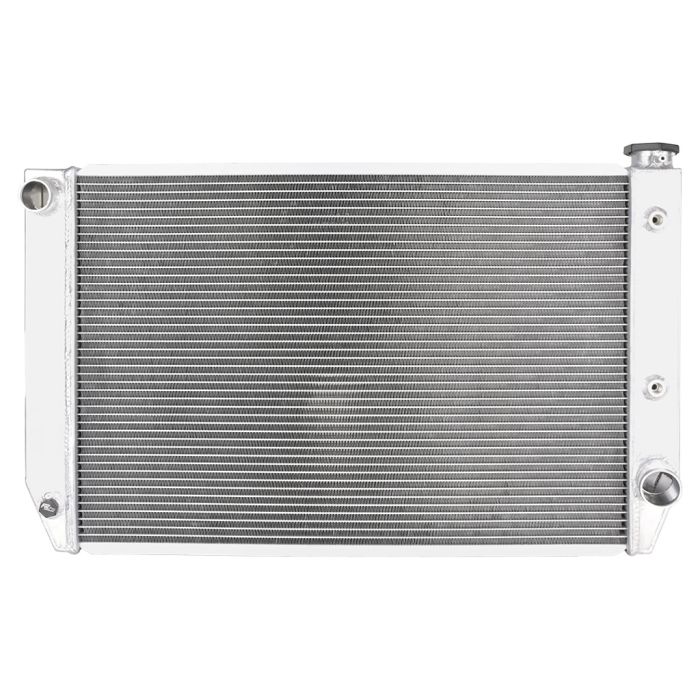

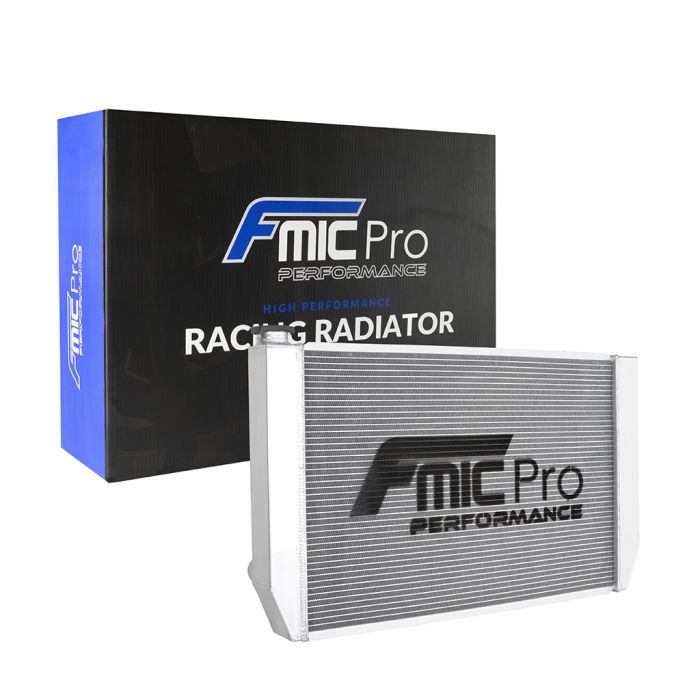

FMIC.Pro universal water radiator 810 mm x 495 mm x 142 mm

FMIC.Pro universal water radiator 810 mm x 495 mm x 142 mm

The FMIC.Pro universal aluminum radiator is an excellent upgrade over stock OEM units, providing significantly superior temperature control and more stable engine operation under demanding conditions. In tuning projects, engine swaps, or race cars, proper cooling is essential, and this radiator offers the efficiency needed to prevent overheating and performance loss. The FMIC.Pro radiator provides up to 35% more heat dissipation compared to standard designs thanks to its high-conductivity aluminum core and optimized fin geometry. The multi-row core and welded construction noticeably improve heat transfer, ensuring safer and more consistent engine operation. The radiator is manufactured entirely from durable aluminum, with precision-welded and polished end tanks, which increases its pressure resistance and long-term durability. It is the ideal choice for modified high-power engines and any setup where coolant temperature must be kept under control.

The radiator is equipped with an integrated transmission heat exchanger inside the tank, which helps maintain a stable transmission operating temperature even during prolonged loads, such as in competition.
The kit includes a 1.3 bar high-pressure radiator cap, which increases the coolant's boiling point, improving both the performance and safety of the engine cooling system.

Additionally, it includes a magnetic drain plug to capture small metal particles and other contaminants circulating through the cooling system, which helps maintain the cleanliness and proper functioning of the system.

Technical specifications:

Overall dimensions: 810 mm x 495 mm x 142 mm

Core dimensions: approx. 660 mm x 488 mm x 75 mm

Rows: 2

Inlet and outlet diameter: 38 mm / 45 mm

Core thickness: 57 mm

Drain plug thread: M12 x 1.5

Transmission cooler thread: 1/4"-18 NPT x 14 mm

All-aluminum construction
