Pyrotect Elite 18-gallon / 68.13-liter with Nuke Performance CFC Unit.

Pyrotect PyroCell Elite Fuel Cells are lightweight and FIA/FT3 homologated for all major motorsport associations.

They include an ultra-durable double-layered urethane fabric bladder, coupled with the Nuke Performance CFC unit - an easy-to-install fuel pump hanger with an integrated surge tank. The most efficient and lightest solution on the market, used by motorsport teams worldwide and compatible with all alcoholic fuels such as ethanol.

Ultra-lightweight fuel cell

FIA homologated for all types of motorsports

100% E85 compatible

Urethane fabric bladder, for motorsports use

Available in various sizes for all needs

Integrated 2-liter fuel surge tank function

Compatible with single or dual high-pressure fuel pumps

Low-profile fuel filler cap with integrated roll-over valve

AN-10 outlet / AN-8 return, fittings included

Pyrotect's high-quality PyroCell Elite Fuel Cells are the best on the market. Manufactured from ultra-durable double-layered urethane fabric, with internal foam baffling and the integrated Nuke Performance CFC unit, they eliminate the need for an external surge tank, which is essential for fuel injection systems. The tank is safe for all types of fuels, including ethanol and methanol.

Integrated 2-liter surge tank, machined fuel pump hanger for 1 or 2 pumps. The Pyrotect Elite fuel tank with the Nuke Performance CFC unit includes the unique Nuke Performance Competition Fuel Cell unit as a replacement for the filler plate. The CFC unit is the perfect solution for a streamlined and high-performance fuel system where safety is paramount. Thanks to the integrated surge tank, this setup eliminates the need for an external tank that takes up a lot of space. With all necessary fuel pumps mounted inside the fabric fuel bladder itself, this is all you need. This frees up space and weight, and increases safety as fewer fuel line connections are required and no external fuel pumps are used. Internal high-pressure fuel pumps, for any need between 200 and 2000 hp.

Pyrotect Elite fuel tanks include the unique Nuke Performance CFC unit with integrated surge tank and fuel pump hanger. They are compatible with single or dual high-pressure fuel pumps from Deatschwerks, AEM, Ti Automotive, Walbro, Bosch, Fuelab, Aeromotive, and many more. They fit all common 39mm fuel pumps, as well as larger ones like Deatschwerks DW400, Walbro GST400/450/520, Bosch BR540, and Aeromotive Stealth 450. One fuel pump is mounted inside the tank, on a height-adjustable aluminum bracket, and one or two pumps are mounted on a machined aluminum bracket inside the surge tank. This solution is prepared to provide a constant fuel flow for power outputs between 200 and 2000 horsepower, without fuel starvation, even under demanding driving conditions, thanks to the internal surge tank and the Pyrotect foam baffling system.

The Pyrotect Elite fuel tank with the Nuke Performance CFC unit is compatible with most common fuel pumps. Together with Nuke Performance fuel pump mounting kits, setting up a high-performance fuel system has never been easier.

How are the fuel pumps mounted in the Pyrotect Pyrocell Elite?

The single fuel pump mounted in the bladder works as a pickup pump that ensures the high-pressure fuel pumps inside the oversized 2-liter (0.53 gallon) surge tank always have enough fuel to maximize flow and minimize the risk of fuel starvation, which can severely damage the engine. For more information, please refer to the product manual. The CFC unit comes with everything needed to install the fuel pumps of your choice, but we recommend adding one of our fuel pump mounting kits for optimal operation. All fuel pumps are securely mounted in all conditions thanks to the machined brackets.

Delivered with all necessary fittings for quick and easy installation.

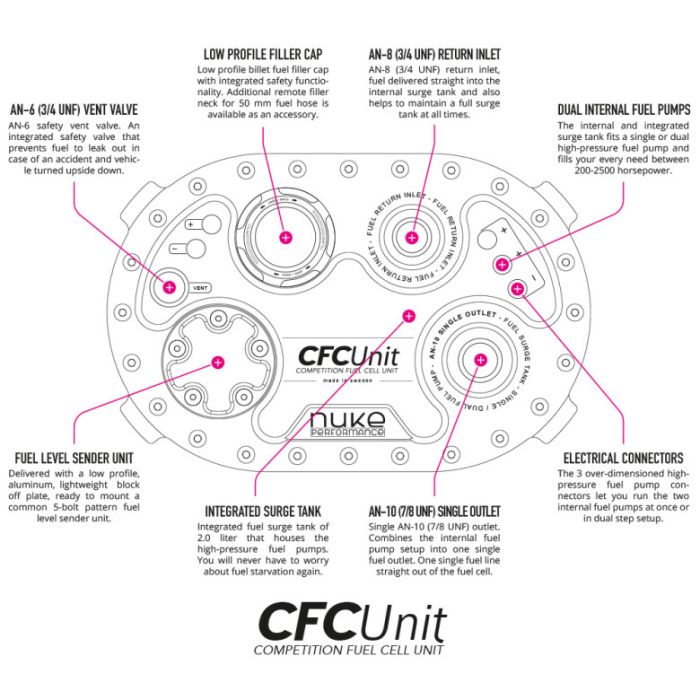

The Nuke Performance CFC unit includes two connection options: an AN-10 (7/8 UNF) to AN-8 male fitting and an AN-10 male fitting, plus an AN-8 (3/4 UNF) to AN-8 male return fitting. The use of the oversized and high-flow AN-10 outlet integrates the internal fuel pumps into a single fuel line, minimizing the need for external equipment, hoses, and fittings. The vent fittings with roll-over protection are AN-6 and can be replaced with AN-6 to AN-10 when necessary. Additional AN-6 to AN-12 fittings are sold separately as accessories.

Output connectors:

AN-10 (7/8 UNF) to AN-8 male. Part No.: 700-01-116

AN-10 (7/8 UNF) to AN-10 male. Part No.: 700-01-116

AN-10 (7/8 UNF) to AN-12 male. Part No.: 700-01-116

Return and vent connectors:

AN-8 (3/4 UNF) to AN-6 male. Part No.: 700-01-101

AN-8 (3/4 UNF) to AN-8 male. Part No.: 700-01-102

AN-8 (3/4 UNF) to AN-10 male. Part No.: 700-01-103

Complete foam baffling and durable double-coated fabric bladder. Pyrotect Elite fuel cells, manufactured in the USA, include factory-modified internal foam baffling, adapted to the specific needs of mounting the Nuke Performance CFC unit. The tough urethane bladder, encased in a lightweight aluminum shell, is much safer than simpler solutions such as budget cells and welded aluminum cells. The Pyrotect Elite series is among the safest fuel cells on the market today and has been developed from a long history in professional motorsport. Equipped with an ultra-durable double-layered urethane fabric bladder and an aluminum container, it is available in various sizes, from 8 to 26 gallons (30 to 98 liters). With the Nuke Performance CFC unit, the only thing needed between the fuel cell and the engine is a fuel filter, just like in a standard fuel system. The internal bladder is completely safe for all types of fuels, but if used with alcoholic fuel, it should not be left stored for a long time without first flushing it with non-alcoholic fuel.

Developed, designed, and manufactured in Sweden. The Pyrotect Elite fuel tank with the Nuke Performance CFC unit is delivered in a perfect combination: a modern bladder-type fuel tank from Pyrotect and the unique Nuke Performance CFC unit, developed, designed, and manufactured in Sweden with the highest quality, the same hallmark that characterizes the other parts of the Nuke Performance lightweight motorsport range. Nuke Performance quality is second to none!

Made to order, approximate lead time: 3 weeks. All Pyrotect fuel tanks are manufactured to order, ensuring current FIA homologation and preventing you from acquiring an old or stored tank. Lead time is approximately 3 weeks after placing the order.

Nuke Performance and Pyrotect fuel tanks are the result of an official and international collaboration between both manufacturers. Pyrotect fuel tanks, designed specifically for the CFC unit, carry the branding of both brands. If you order a fuel cell directly from Pyrotect, make sure to tell them it is designed for use with the Nuke Performance CFC unit. The Pyrotect Elite CFC fuel cell kit includes: 1 Pyrotect Elite fuel bladder (select size when ordering), 1 FIA-certified lightweight Pyrotect aluminum container, 1 Nuke Performance Competition Fuel Cell unit, 1 AN-10 (7/8 UNF) to AN-10 male outlet connector, 1 AN-8 (3/4 UNF) to AN-8 male return connector, 1 AN-8 (3/4 UNF) to AN-6 male vent safety valve.

Pyrotect Elite Fuel Cell Specifications

8 Gallon Fuel Cell. Part number:

150-06-08

Length:

527 mm (20.75”)

Depth:

308 mm (12.12”)

Height:

219 mm (8.62”)

Weight:

Not available (including CFC unit)

Fuel capacity:

30.28 liters (8 gallons)

Fuel level sensor:

150-FLS-08 203 mm / 8"

10 Gallon Fuel Tank Part No.

150-06-10

Length

620 mm (25.62”)

Depth

257 mm (10.12”)

Height

257 mm (10.12”)

Weight

Not available, including CFC unit

Fuel capacity

37.85 liters (10 gallons)

Fuel level sensor

150-FLS-09 228 mm / 9"

12 Gallon Fuel Tank Part No.

150-06-12

Length

502 mm (19.76”)

Depth

437 mm (17.20”)

Height

234 mm (9.21”)

Weight

Not available, including CFC unit

Fuel capacity

45.42 liters (12 gallons)

Fuel level sensor

150-FLS-09 228 mm / 9"

15 Gallon Fuel Tank Part No.

150-06-15

Length

622 mm (24.5")

Depth

450 mm (17.75")

Height

241 mm (9.5")

Weight

Not available, including CFC unit

Fuel capacity

56.78 liters (15 gallons)

Fuel level sensor

150-FLS-09 228 mm / 9"

17 Gallon Fuel Tank Part No.

150-06-17

Length

511 mm (20.12")

Depth

435 mm (17.12")

Height

324 mm (12.75”)

Weight

Not available, including CFC unit

Fuel capacity

64.35 liters (17 gallons)

Fuel level sensor

150-FLS-12 305 mm / 12"

18 Gallon Fuel Tank Part No.

150-06-18

Length

711 mm (28.0”)

Depth

435 mm (17.12”)

Height

251 mm (9.87”)

Weight

Not available, including CFC unit

Fuel capacity

68.13 liters (18 gallons)

Fuel level sensor

150-FLS-09 228 mm / 9"

22 Gallon Fuel Tank Part No.

150-06-22

Length

864 mm (34.0”)

Depth

445 mm (17.5”)

Height

241 mm (9.5”)

Weight

Not available, including CFC unit

Fuel capacity

83.27 liters (22 gallons)

Fuel level sensor

150-FLS-09 228 mm / 9"

No modifications are required before installation. When ordering, the Pyrotect fuel tank is manufactured to specifications for a perfect fit with the CFC unit. The internal foam baffle is cut to the exact size for the fuel pump and leaves enough space for the internal surge tank. No modifications to the fuel tank are necessary, and it comes with all necessary documentation for FIA homologation. Technical Information: • Includes lightweight aluminum container. • Delivered without top plate, ready for CFC unit. • Ultra-durable double-layer urethane fabric bladder. • 6x10" fill plate mounting with 24-bolt pattern. • Comes with Nuke Performance CFC unit. • FIA/FT3-1999 approved. • E85 suitable; must be drained if stored. • No pre-installation modifications required. • Fuel pump not included.
FIA Certification: FIA certified fuel cells have a 5-year lifespan and can be recertified for an additional 2 years, up to a maximum of 7 years from the date of manufacture. Fuel cells must be sent to Pyrotect for recertification. To comply with FIA regulations, the fuel cell bladder must be installed inside the included aluminum container. The dimensions listed on our website correspond to the included container. Custom Design Pyrotect Fuel Cells: For custom design Pyrotect fuel cells, please contact us directly for a quote. Integrated Nuke Performance CFC Unit. Measurements:

The bolt flange around the top lid measures an additional 25.4 mm (1.00") per side; add this to the listed measurements. The custom "shoebox" design is optional; contact us for custom orders.
8 Gallon Fuel Tank (30.28 liters):

Length: 527 mm / Height: 219 mm / Width: 308 mm

10 Gallon Fuel Tank (37.85 liters):

Length: 620 mm / Height: 257 mm / Width: 257 mm

12 Gallon Fuel Tank (45.42 liters):

Length: 527 mm / Height: 241 mm / Width: 454 mm

15 Gallon Fuel Tank (56.78 liters):

Length: 622 mm / Height: 241 mm / Width: 450 mm

17 Gallon Fuel Tank (64.35 liters):

Length: 511 mm / Height: 324 mm / Width: 435 mm

Length: 511 mm / Height: 324 mm / Width: 435 mm

18 Gallon Fuel Tank (68.13 liters):

Length: 711 mm / Height: 251 mm / Width: 435 mm

22 Gallon Fuel Tank (83.27 liters):

Length: 22 Gallon (83.27 liters):

Length: 864 mm / Height: 241 mm / Width: 445 mm

24 Gallon Fuel Tank (90 liters):

Length: 635 mm / Height: 346 mm / Width: 426 mm

Length: 25 inches / Height: 13.62 inches / Width: 16.75 inches

26 Gallon Fuel Tank (98 liters):

Length: 641 mm / Height: 438 mm / Width: 428 mm
Length: 25.25 inches / Height: 17.25 inches / Width: 16.85 inches
