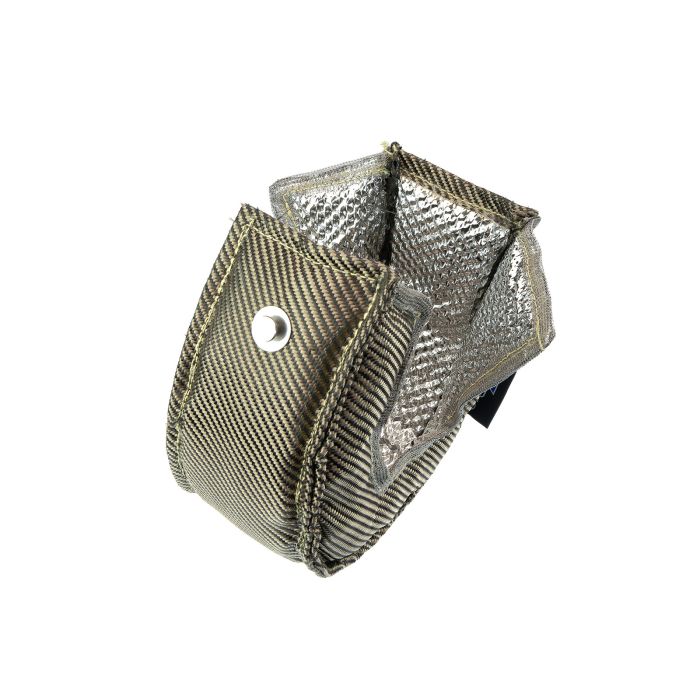

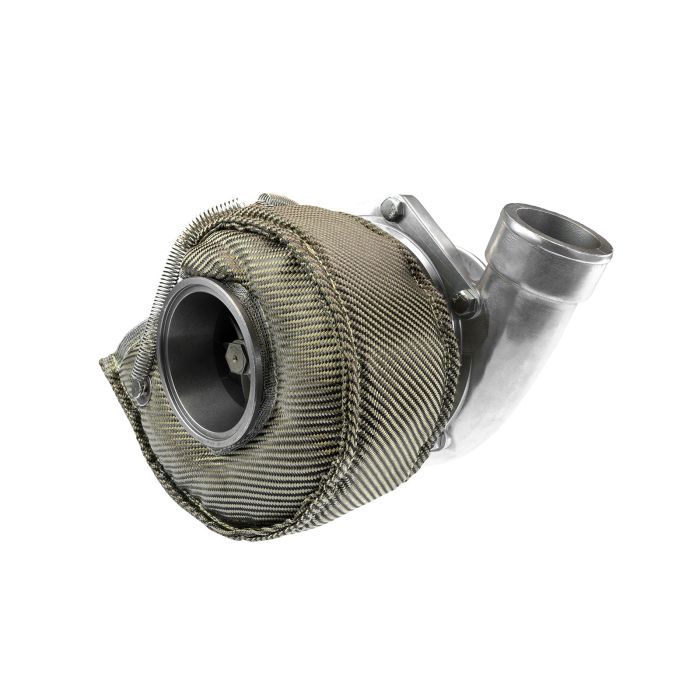

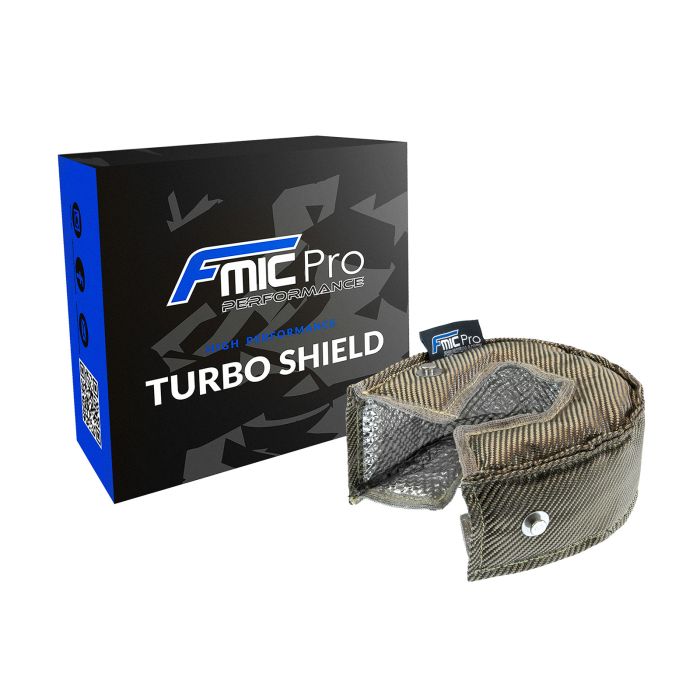

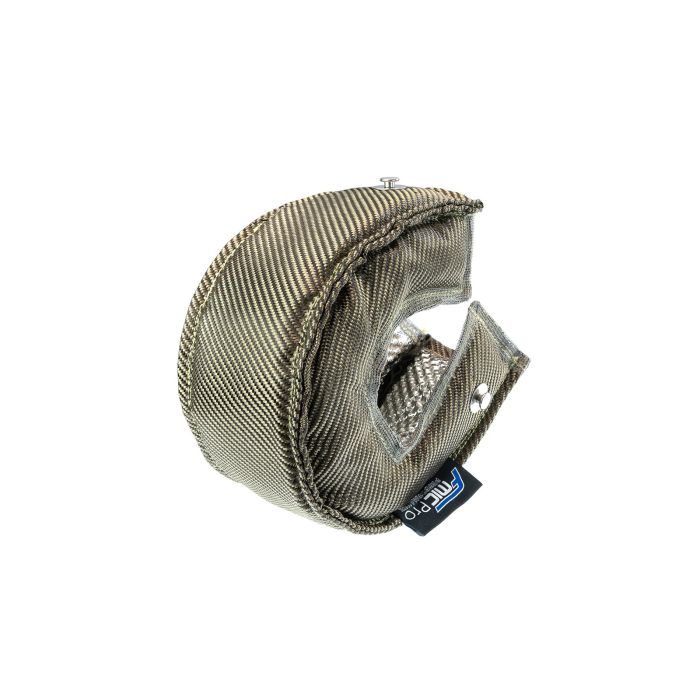

Turbocharger Heat Shield/Blanket FMIC.Pro Inconel Magma Carbon T4

FMIC.Pro Inconel Magma Carbon Fiber

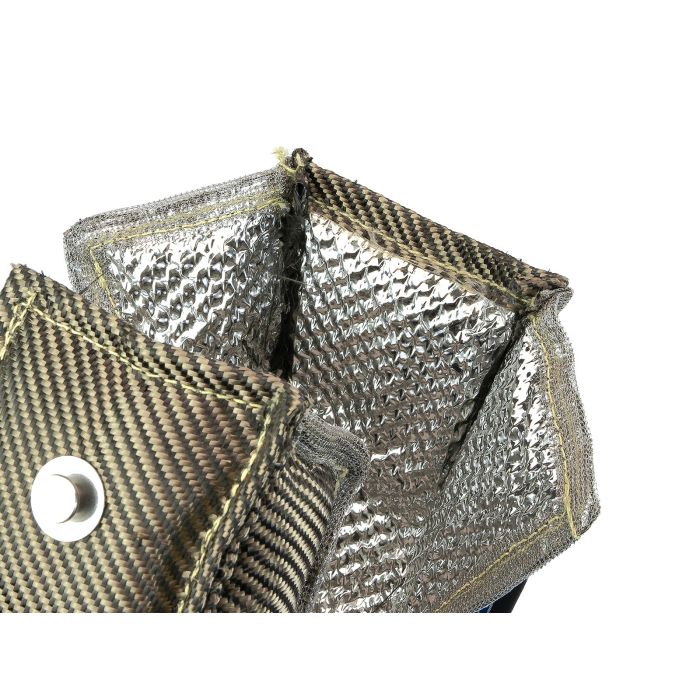

The FMIC.Pro thermal blanket is a professional product from a completely new and innovative series of thermal insulation. The first, inner layer is made of Inconel, which, thanks to its high resistance to oxidation and corrosion, is used in the aerospace industry and has a melting point of up to 1300 °C. The blanket is filled with a thick layer of ceramic wool, which effectively insulates against heat, and is covered with a magma-type material, used in thermal insulation bandages, interwoven with carbon fibers. The Inconel layer necessitated the use of a stainless steel mesh to cover the blanket, which further increases its durability. Thanks to this combination, despite constant contact with temperatures above 1000 °C, the FMIC.Pro blanket offers an excellent thermal barrier, does not discolor, and remains flexible and suitable for reuse after disassembly.

The FMIC.Pro blanket can be used in extreme conditions, making it ideal for professional racing cars. It perfectly reduces the temperature under the hood, which benefits the engine and cooling system components, further increasing the energy of the exhaust gases.

Temperature resistance: 1250 °C
Turbo housing size: T4
Inner layer: Inconel
Filling layer: Ceramic wool
Outer layer: Magma interwoven with carbon fibers
Edge material: Stainless steel
