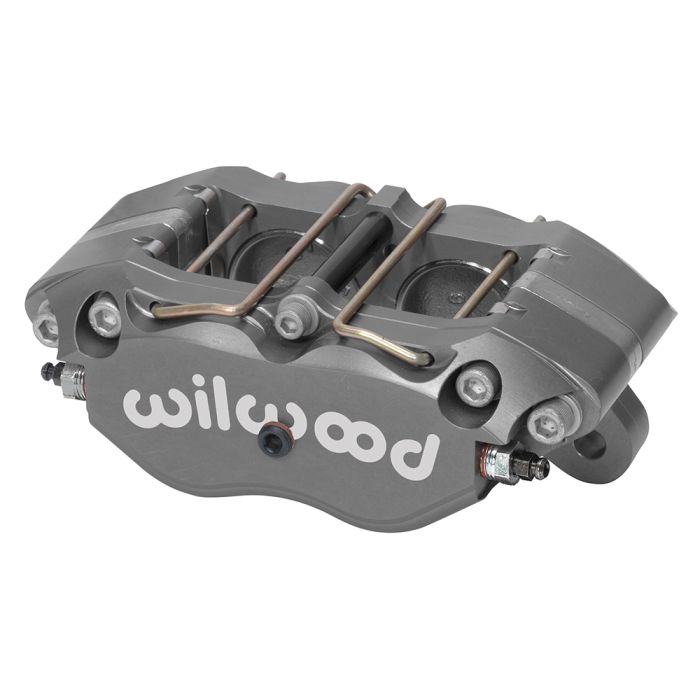

Wilwood 120-9703 Dynapro Universal Nut Mount Brake Caliper, 4-Piston, Silver.

Dynapro Lug Mount Brake Caliper

The DynaPro Lug Mount (DP) forged aluminum caliper represents the latest generation of calipers available as an upgrade or replacement for applications previously utilizing the Dynalite model series. DP calipers combine pure racing technology with several Wilwood-exclusive performance enhancements.

A sleek profile with superior strength and precision machined finish provide the ideal performance and appearance for competition or show. The strength of the DynaPro is a combination of process and design. The DynaPro is forged using the stress-flow process from a premium grade block. This process realigns the metal’s granular structure within the contour of the body design. This produces a part with superior strength to parts simply machined from straight-grain block billet. The body design, generated through Finite Element Analysis (FEA), incorporates a highly reinforced radial transition that eliminates steps and shoulders between the piston housings and the bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and body separation of the caliper under load. Structural deflection and volume displacement tests have proven the efficiency of this innovative design. Reductions in overall deflection and ensuing decreases in fluid volume displacement translate into increased clamping efficiency with less pedal travel. In short, it’s a firm, responsive pedal with exceptional stopping power. The DynaPro incorporates other refinements for improved performance and greater versatility. The calipers feature Quick-E-Clip pad retainers that hold the 7812-type brake pads from the top. Not only does this allow quick pad changes without caliper removal, but the lower pad supports have been eliminated to create a thinner profile that fits more easily into tight clearance applications.

Pistons

Number of Pistons	4
Piston Area (sq in)	3.00
Piston Type	Stainless Steel
Dust Boot	No

Rotor Dimensions

Rotor Width (in)	0.81
Rotor Diameter (in)	13.06

Pad Dimensions

Pad Area (sq in)	6.36
Pad Volume (cu in)	2.1

Service Rating and Material

Material	Forged Aluminum
Weight (lbs)	3.8

Colors and Finish

Color	Anodized
Finish	Type III Anodized

Mounting

Mounting Center (in)	5.25
Mounting Position
Mount Side	Universal
Mount Type	Lug

Specifications

Rotor Compatibility

Rotor Width (in)	0.81
Maximum Rotor Width (in)	0.83
Minimum Rotor Width (in)	0.75
Maximum Rotor Diameter (in)	13.06
Minimum Rotor Diameter (in)	10.00

Brake Pad Specifications

Brake Pad Type 1	7812
Brake Pad Type 2	N-A
Brake Pad Type 3	N-A
Total Pad Area (sq in)	6.36
Total Pad Volume (cu in)	2.1
Mount

Piston Specifications

Piston Bore 1 (in)	1.38
Piston Bore 2 (in)	1.38
Piston Bore 3 (in)
Total Piston Area (sq in)	3.00

Mounting Specifications

Lug

Mount Side	Universal
Mount Center (in)	5.25
Mount Hole Size (in)	0.39
Mount Height (in)	2.10
Inlet Thread Size	1/8-27 NPT
