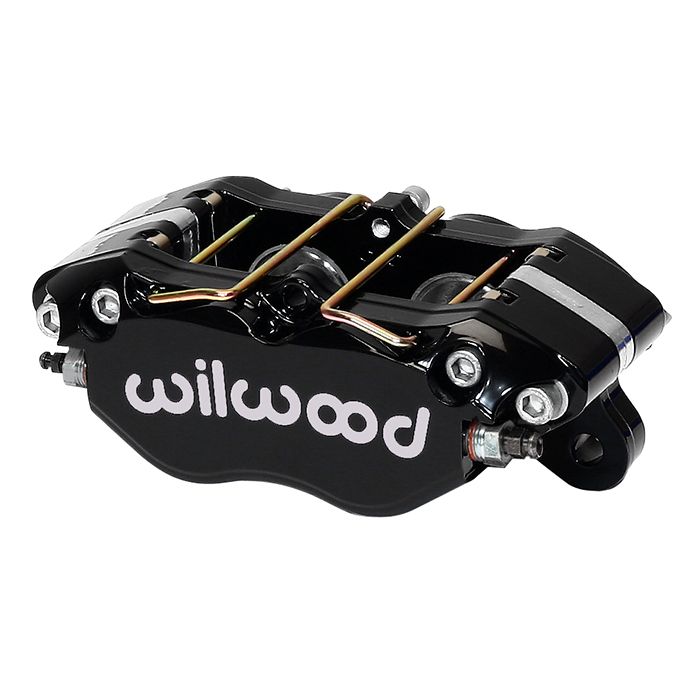

Wilwood 120-9702 Dynapro Universal Nut Mount 4-Piston Caliper, Black.

DynaPro Lug Mount Caliper

The DynaPro Lug Mount (DP) caliper, forged from aluminum, represents the latest in caliper technology available as an upgrade or replacement for applications previously utilizing the Dynalite series. DP calipers combine pure racing technology with several Wilwood-exclusive performance enhancements. A sleek profile with superior strength and a precision machined finish provide the ideal performance and aesthetic for racing or show.

The strength of the DynaPro is a combination of process and design. The DynaPro is forged using the stress-flow process from a premium grade aluminum slug. This process re-aligns the metal’s granular structure within the contour of the body design. This produces a part with superior strength over parts simply machined from straight-grain aluminum block.

The body design generated through Finite Element Analysis (FEA) incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. The incorporation of a radius in this critical area substantially increases resistance to deflection and caliper body separation under load. Structural deflection and volume displacement testing have proven the effectiveness of this innovative design. Reduced overall deflection and the resulting decrease in fluid volume displacement translates into increased clamping efficiency with less pedal travel. In short, a firm, responsive pedal with exceptional stopping power. The DynaPro incorporates other refinements for enhanced performance and application versatility. The calipers feature Quick-E-Clip pad retainers that support a 7812-type brake pad from the top. Not only does it allow for quick pad changes without caliper removal, but the bottom pad supports have been eliminated to create a thinner profile that fits into tighter spaces more easily. id="MainContent_lblPistType" class="Gray11B">Stainless Steel Dust Boot No

Rotor Dimensions

Rotor Width (in)	1.00
Rotor Diameter (in)	13.06

Pad Dimensions

Pad Area (in²)	6.36
Pad Volume (in³)	2.1

Service Rating & Material

Material	Forged Aluminum
Weight (lbs)	3.8

Colors & Finish

Color	Black
Finish	Black Powder Coat

Mounting

Mounting Center (in)	5.25
Mounting Position
Mount Side	Universal
Mount Type	Lug

Specifications

Rotor Compatability

Rotor Width (in)	1.00
Max Rotor Width (in)	1.04
Min Rotor Width (in)	0.94
Max Rotor Diameter (in)
Min Rotor Diameter (in)	10.00

Brake Pad Specifications

Brake Pad Type 1	7812
Brake Pad Type 2	N-A
Brake Pad Type 3	N-A
Total Pad Area (in²)	6.36
Total Pad Volume (in³)	2.1
Mounting

Piston

Specifications

Piston Bore 1 (in)	1.38
Piston Bore 2 (in)	1.38
Piston Bore 3 (in)
Total Piston Area (in²)	3.00

Mounting Specifications

Mount Type	Lug
Mount Side	Universal
Mount Center (in)
Mount Hole Size (in)	0.39
Mount Height (in)	2.10
Inlet Thread Size	1/8-27 NPT
