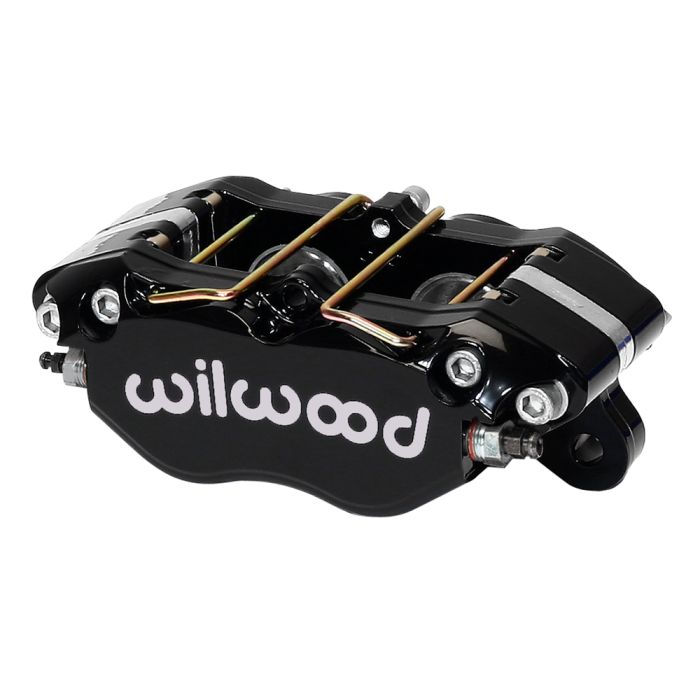

DynaPro Lug Mount Brake Caliper
The DynaPro Lug Mount (DP) forged billet aluminum brake caliper represents the latest generation of calipers available as an upgrade or replacement for applications previously utilizing the Dynalite series. DP calipers combine pure racing technology with several performance enhancements unique to Wilwood. A sleek profile with superior strength and precision machined finish provide the ideal performance and aesthetic for competition or show.
The strength of the DynaPro is a combination of process and design. The DynaPro is stress-flow forged from premium grade aluminum stock. This process realigns the metal’s granular structure within the contour of the body design. This produces a piece with superior strength to parts simply machined from straight grain aluminum block. The body design generated through Finite Element Analysis (FEA) incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and the bridges. Integrating a radius in this critical area substantially increases resistance to deflection and body separation of the caliper under load. Structural deflection and volume displacement testing have proven the effectiveness of this innovative design. Reduced overall deflection and the resulting decrease in fluid volume displacement translates into increased clamping efficiency with less pedal travel. In short, a firm, responsive pedal with exceptional stopping power.
The DynaPro incorporates other refinements for improved performance and application versatility. The calipers feature Quick-E-Clip pad retainers that support a type 7812 brake pad from the top. Not only does it allow for quick pad changes without caliper removal, but the lower pad support bridges have been removed to create a slimmer profile that more readily fits into tight clearance applications. id="MainContent_lblPistType" class="Gray11B">Stainless SteelRotor Dimensions
| Rotor Width (in) | 0.38 |
| Rotor Diameter (in) | 13.06 |
Pad Dimensions
| Pad Area (in²) | 6.36 |
| Pad Volume (in³) | 2.1 |
Service Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 3.8 |
Colors and Finish
| Color | Black |
| Finish | Black Powder Coat |
Mounting
| Mounting Center (in) | 5.25 |
| Mounting Position | |
| Mounting Side | Universal |
| Mounting Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.38 | ||
| Max Rotor Width (in) | 0.38 | ||
| Min Rotor Width (in) | 0.25 | ||
| Max Rotor Diameter (in) |
| Min Rotor Diameter (in) |
10.00 |
|
Brake Pad Specifications
| Brake Pad Type 1 | 7812 |
| Brake Pad Type 2 | N/A |
| Brake Pad Type 3 | N/A |
| Total Pad Area (in²) | 6.36 |
| Total Pad Volume (in³) | 2.1 |
| Mounting |
Piston
Specifications| Piston Bore 1 (in) | 1.75 |
| Piston Bore 2 (in) | 1.75 |
| Piston Bore 3 (in) | |
| Total Piston Area (in.²) | 4.80 |
Mounting Specifications
| Mounting Type | Lug |
| Mounting Side | Universal |
| Mounting Center (in) | |
| Mounting Hole Size (in) | 0.39 |
| Mounting Height (in) | 2.10 |
| Inlet Thread Size | 1/8-27 NPT |
