PRODUCT DESCRIPTION
Product details

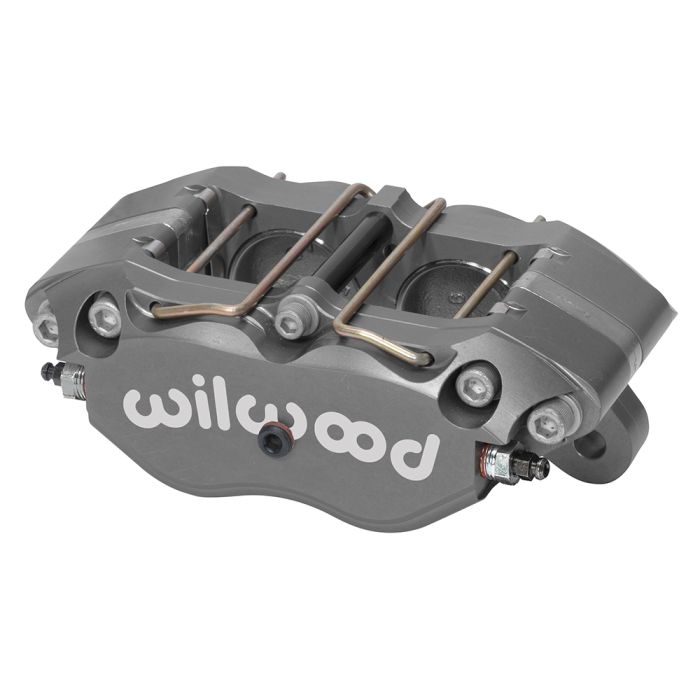

DynaPro Lug Mount Brake Caliper
The DynaPro Lug Mount (DP) brake caliper, forged from aluminum, represents the latest generation of calipers available as an upgrade or replacement for applications previously utilizing the Dynalite series. DP calipers combine pure racing technology with several performance enhancements unique to Wilwood. A sleek profile with superior strength and precision machined finish provide the ideal performance and aesthetic for racing or show.
The DynaPro’s strength is a combination of process and design. The DynaPro is forged using stress-flow process from a premium grade aluminum block. This process realigns the metal’s granular structure to within the contour of the body design. This produces a part with superior strength over parts that are simply machined from straight-grain aluminum blocks.
The body design generated using finite element analysis (FEA) incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and body separation of the caliper under load. Structural deflection and volume displacement testing has proven the effectiveness of this innovative design. Reduced overall deflection and the resulting decrease in fluid volume displacement translates into higher clamping efficiency with less pedal travel. In short, a firm, responsive pedal with outstanding stopping power. The DynaPro incorporates other enhancements for improved performance and application versatility. Calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does this allow for quick pad changes without caliper disassembly, but the lower pad supports have been eliminated to create a thinner profile that fits more easily into confined spaces. id="MainContent_lblPistType" class="Gray11B">Stainless SteelRotor Dimensions
| Rotor Width (in) | 0.81 |
| Rotor Diameter (in) | 13.06 |
Pad Dimensions
| Pad Area (in²) | 6.36 |
| Pad Volume (in³) | 2.1 |
Service Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 3.8 |
Colors & Finish
| Color | Anodized |
| Finish | Type III Anodized |
Mounting
| Mounting Center (in) | 5.25 |
| Mounting Position | |
| Mounting Side | Universal | Mounting Type | Lug |
Specifications
Rotor Compatability
| Rotor Width (in) | 0.81 |
| Maximum Rotor Width (in) | 0.83 |
| Minimum Rotor Width (in) | 0.75 |
| Maximum Rotor Diameter (in) | 13.06 |
| Minimum Rotor Diameter (in) | 10.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 7812 |
| Brake Pad Type 2 | N/A |
| Brake Pad Type 3 | N/A |
| Total Pad Area (in²) | 6.36 |
| Total Pad Volume (in³) | 2.1 |
| Mounting |
Piston Specifications
| Piston Diameter 1 (in) | 1.75 |
| Piston Diameter 2 (in) | 1.75 |
| Piston Diameter 3 (in) | |
| Total Piston Area (in.²) | 4.80 |
Mounting Specifications
| Mounting Side | Universal |
| Mounting Center (in) | 5.25 |
| Mounting Hole Size (in) | 0.39 |
| Mounting Height (in) | 2.10 |
| Inlet Thread Size | 1/8-27 NPT |
