PRODUCT DESCRIPTION
Product details

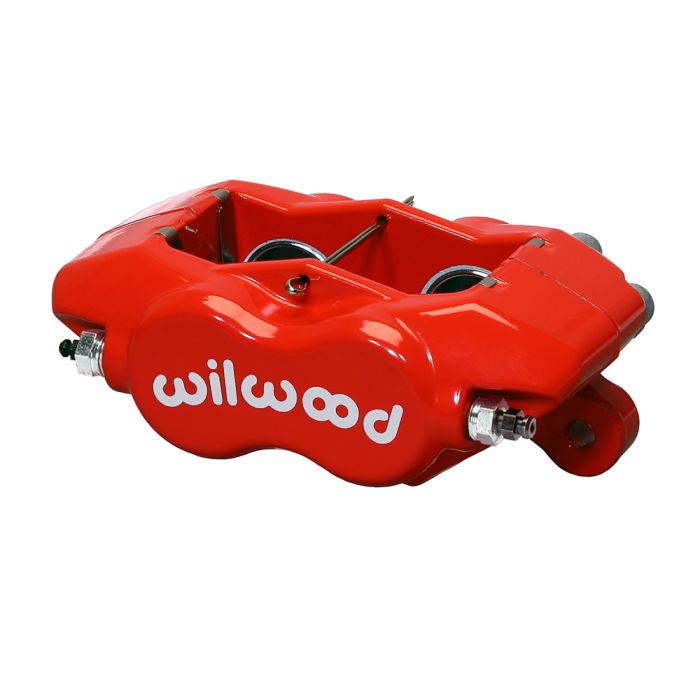

Forged Dynalite Internal
The Forged Billet Dynalite Internal caliper is the next generation improvement to the venerable Forged Dynalite series calipers. Designed with a unique, no-spacer, split bridge for improved strength and appearance. These latest developments and innovations applied in caliper design and manufacturing processes have resulted in substantial strength and performance improvements over all comparable models. This new no-spacer design of the Forged Dynalite caliper series makes it the stiffest and most visually appealing design to date.
The Forged Billet Dynalite Internal caliper is the strongest caliper in its class, with weights starting at 3.00 pounds. The true stress-flow forging process realigns the metal’s granular structure within the contour of the caliper body.
This process eliminates the breaks and interruptions in the internal grain structure that occur when machining a straight block. The Finite Element Analysis (FEA) generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius into this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volumetric displacement testing has shown the Forged Dynalite caliper to outperform all existing styles of this popular size. class="Gray11B">Stainless SteelRotor Dimensions
| Rotor Width (in) | 0.50 |
| Rotor Diameter (in) | 13.06 |
Pad Dimensions
| Pad Area (in²) | 6.36 |
| Pad Volume (in³) | 2.1 |
Service Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 3.6 |
Colors & Finish
| Color | Red |
| Finish | Red Powder Coat |
Mounting
| Mounting Center (in) | 5.25 |
| Mounting Position | |
| Mounting Side | Universal |
| Mounting Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.50 |
| Max Rotor Width (in) | 0.52 |
| Min Rotor Width (in) | 0.44 |
| Max Rotor Diameter (in) | 13.06 |
| Min Rotor Diameter (in) | 10.00 |
Brake Pad Specs
| Brake Pad Type 1 | 7112 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 6.36 |
| Total Pad Volume (in³) | 2.1 |
| Mounting |
Piston Specs
| Piston Bore 1 (in) | 1.38 |
| Piston Bore 2 (in) | 1.38 |
| Piston Bore 3 (in) | |
| Total Piston Area (in²) | 3.00 |
Mounting Specs
| Mounting Side | Universal |
| Mounting Center (in) | 5.25 |
| Mounting Hole Size (in) | 0.39 |
| Mounting Height (in) | 2.03 |
| Inlet Thread Size | 1/8-27 NPT |
