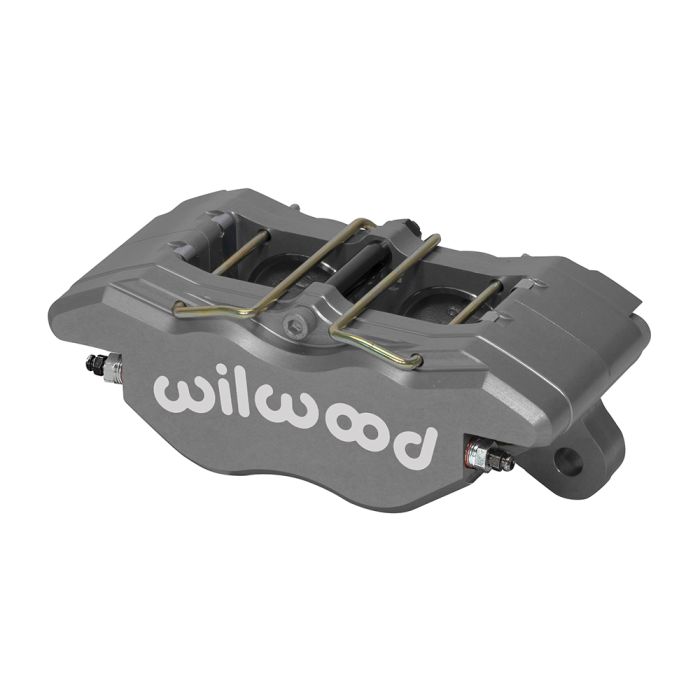

Wilwood 120-15374 Dynapro Narrow Universal Mount 4-Piston Brake Caliper

Dynapro Narrow

The DynaPro Narrow Lug Mount (DPN) caliper, manufactured from forged aluminum, represents the latest version of calipers available with a narrower outside clearance. DPN calipers combine pure competition technology with several performance enhancements exclusive to Wilwood. A sleek profile with superior strength and a high-precision machined finish ensure performance. Available in Wilwood's Type III anodizing or black or red powder coat finish.

The strength of the DynaPro Narrow is a combination of process and design. The DynaPro Narrow is stress-flow forged from a premium aluminum alloy. This process realigns the grain structure of the metal within the contour of the body design.

This process yields a part with superior strength to parts merely machined from straight-grain solid block. The body design generated using finite element analysis (FEA) incorporates a highly fortified radial transition that eliminates steps and shoulders between the piston housings and bridges. Incorporating a radius in this critical area substantially increases resistance to deflection and body separation of the caliper under load. Structural deflection and volume displacement testing have proven the effectiveness of this innovative design. Reduced overall deflection and the resulting decrease in fluid volume displacement translates into increased clamping efficiency with less pedal travel. In short, you get a firm, responsive pedal with exceptional stopping power. The DynaPro Narrow incorporates other enhancements for improved performance and greater application versatility. The calipers feature Quick-E-Clip pad retainers that support a 7812 type brake pad from the top. Not only does it allow for quick pad changes without caliper disassembly, but the lower pad supports have been eliminated to create a thinner profile that fits more easily into tight spaces. id="MainContent_lblPistType" class="Gray11B">Stainless Steel Dust Boot No

Rotor Dimensions

Rotor Width (in.)	0.38
Rotor Diameter (in.)	13.06

Pad Dimensions

Pad Area (in²)	6.36
Pad Volume (in³)	2.1

Service Rating & Material

Material	Forged Aluminum
Weight (lbs)	3.6

Colors & Finish

Color	Anodized
Finish	Type III Anodized

Mounting

Mounting Center (in.)	5.25
Mounting Position
Mounting Side	Universal
Mount Type	Lug

Specifications

Rotor Compatibility

Rotor Width (in.)	0.38
Max Rotor Width (in.)	0.42
Min Rotor Width (in.)	0.31
Max Rotor Diameter (in.)
Min Rotor Diameter (in.)	10.00

Brake Pad Specifications

Brake Pad Type 1	7812
Brake Pad Type 2	N/A
Brake Pad Type 3	N/A
Total Pad Area (in²)	6.36
Total Pad Volume (in³)	2.1
Mounting

Piston

Specifications

Piston Diameter 1 (in.)	1.75
Piston Diameter 2 (in.)	1.75
Piston Diameter 3 (in.)
Total Piston Area (in.²)	4.80

Mounting Specifications

Mounting Type	Lug
Mounting Side	Universal
Mounting Center (in.)
Mounting Hole Size (in.)	0.39
Mounting Height (in.)	2.10
Inlet Thread Size	1/8-27 NPT
