PRODUCT DESCRIPTION
Product details

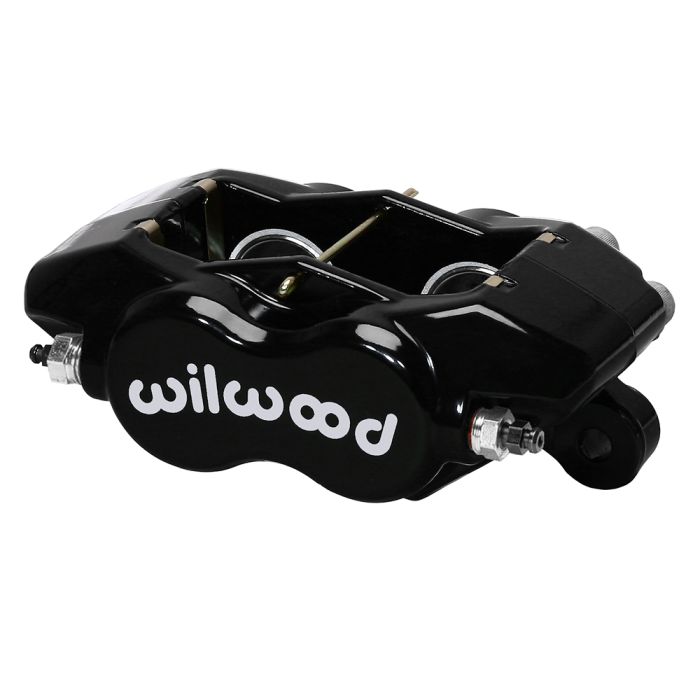

Forged Dynalite Internal
The Forged Billet Dynalite Internal caliper is the next generation upgrade to the venerable Forged Dynalite series calipers. Designed with a unique, spacer-less, split bridge for improved strength and appearance. These latest developments and innovations applied in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite caliper series makes it the stiffest and most visually appealing design to date.
The Forged Billet Dynalite Internal caliper is the strongest caliper in its class, with weights starting at 3.00 pounds. The true stress-flow forging process realigns the metal’s grain structure within the contour of the caliper body.
This process eliminates breaks and interruptions in the internal grain structure that occur when machining a straight block. The finite element analysis (FEA) generated radial transition design eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius into this transition area substantially increases caliper deflection and separation resistance under load. Structural deflection and volumetric displacement tests have shown the forged Dynalite caliper to outperform all existing styles in this popular size. class="Gray11B">Stainless SteelRotor Dimensions
| Rotor Width (in) | 0.81 |
| Rotor Diameter (in) | 13.06 |
Panel Dimensions
| Pad Area (in²) | 6.36 |
| Pad Volume (in³) | 2.1 |
Service Rating and Material
| Material | Forged Aluminum |
| Weight (lbs) | 3.6 |
Colors and Finish
| Color | Black |
| Finish | Black Powder Coat |
Mounting
| Mounting Center (in) | 5.25 |
| Mounting Position | |
| Mounting Side | Universal |
| Mount Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.81 |
| Maximum Rotor Width (in) | 0.83 |
| Minimum Rotor Width (in) | 0.75 |
| Maximum Rotor Diameter (in) | 13.06 |
| Minimum Rotor Diameter (in) | 10.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 7112 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 6.36 |
| Total Pad Volume (in³) | 2.1 |
| Mounting |
Piston Specifications
| Piston Bore 1 (in) | 1.12 |
| Piston Bore 2 (in) | 1.12 |
| Piston Bore 3 (in) | |
| Total Piston Area (in²) | 1.98 |
Mounting Specifications
| Mount Side | Universal |
| Mount Center (in) | 5.25 |
| Mount Hole Size (in) | 0.39 |
| Mount Height (in) | 2.03 |
| Inlet Thread Size | 1/8-27 NPT |
