PRODUCT DESCRIPTION
Product details

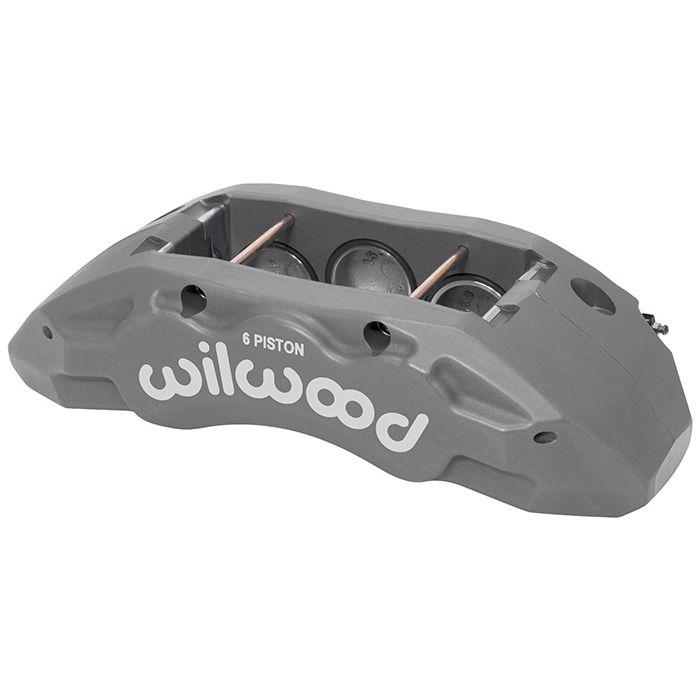

TX6R Forged Radial Brake Calipers
Tactical Xtreme TX6R six-piston radial brake calipers are specifically designed and engineered for heavy-duty service on trucks, SUVs, and armored vehicles in Class 1, 2, and 3 up to 14,000 pounds Gross Vehicle Weight Rating (GVWR). The combination of the forged aluminum body, stainless steel pistons, large pad volume, and the ability to accommodate brake discs up to 1.50" (3.8 cm) thick, make the TX6R the ultimate choice for high strength, light weight, and tactical-level braking capability for all types of extreme on and off-road service applications. TX6R calipers have a hard-anodized finish on base models, with gloss black or red powder coat options. Bridge plates and protected single bleeder design with internal fluid ports.
Pistons
| Piston Quantity | 6 |
| Piston Area (sq in) | 5.06 |
| Piston Type | Stainless Steel |
| Dust Boot | Yes |
Rotor Dimensions
| Rotor Width (in) | 1.38 |
| Rotor Diameter (in) | 16.00 |
Pad Dimensions
| Pad Area (sq in) | 12.69 |
| Pad Volume (cu in) | 6.81 |
Duty Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 13.6 |
Colors & Finish
| Color | Anodized |
| Finish | Type III Anodize |
Mounting
| Mounting Center (in) | 9.63 |
| Mounting Position | |
| Mounting Side | Right |
| Mounting Type | Radial |
Specifications
Rotor Compatibility
| Rotor Width (in) | 1.38 |
| Maximum Rotor Width (in) | 1.38 |
| Minimum Rotor Width (in) | 1.30 |
| Maximum Rotor Diameter (in) | 16.00 |
| Minimum Rotor Diameter (in) | 14.25 |
Brake Pad Specifications
| Brake Pad Type 1 | 10120 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (sq in) | 12.69 |
| Total Pad Volume (cu in) | 6.81 |
| Mounting |
Piston Specifications
| Piston Bore 1 (in) | 1.62 |
| Piston Bore 2 (in) | 1.38 |
| Piston Bore 3 (sq in) | 1.38 |
| Total Piston Area (sq in) | 5.06 |
Mounting Specifications
| Mounting Type | Radial |
| Mounting Side | Right |
| Mounting Center (in) | 9.63 |
| Mounting Hole Size (in) | |
| Mounting Height (in) | 3.07 |
| Inlet Thread Size | 1/8-27 NPT |
