PRODUCT DESCRIPTION
Product details

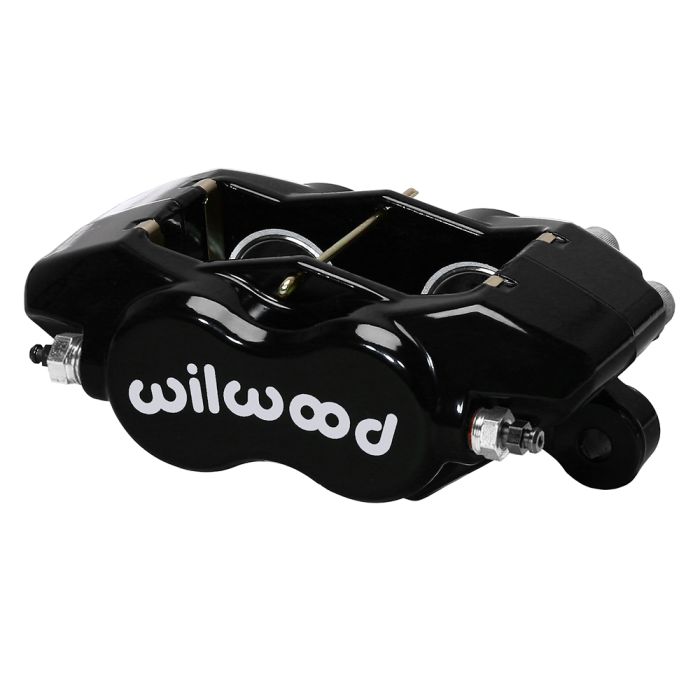

Forged Dynalite Internal
The Forged Billet Dynalite Internal caliper is the next generation improvement to the venerable Forged Dynalite series calipers. Designed with a unique split bridge and no spacers for improved strength and appearance. These latest developments and innovations applied in caliper design and manufacturing processes have resulted in substantial improvements in strength and performance over all comparable models. This new spacer-less design of the Forged Dynalite caliper series makes it the stiffest and most visually appealing design to date.
The Forged Billet Dynalite Internal caliper is the strongest caliper in its class, with weights starting at 3.00 lbs. (1.36 kg). The stress-flow forging process realigns the metal’s granular structure within the contour of the caliper body.
This process removes the breaks and interruptions in the internal grain structure that occur when machining from a straight block. The radial transition design generated using finite element analysis (FEA) eliminates steps and shoulders in the area between the piston housing body and the caliper bridges. Incorporating a radius in this transition zone substantially increases deflection and caliper separation resistance under load. Structural deflection and volumetric displacement testing have shown the Forged Dynalite caliper to outperform all existing styles of this popular size. class="Gray11B">Stainless SteelRotor Dimensions
| Rotor Width (in) | 0.81 |
| Rotor Diameter (in) | 13.06 |
Pad Dimensions
| Pad Area (in²) | 6.36 |
| Pad Volume (in³) | 2.1 |
Service Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 3.6 |
Colors & Finish
| Color | Black |
| Finish | Black Powder Coat |
Mounting
| Mounting Center (in) | 5.25 |
| Mounting Position | |
| Mount Side | Universal |
| Mount Type | Lug |
Specifications
Rotor Compatibility
| Rotor Width (in) | 0.81 |
| Max Rotor Width (in) | 0.83 |
| Min Rotor Width (in) | 0.75 |
| Max Rotor Diameter (in) | 13.06 |
| Min Rotor Diameter (in) | 10.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 7112 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 6.36 |
| Total Pad Volume (in³) | 2.1 |
| Mounting |
Piston Specifications
| Piston Bore 1 (in) | 1.75 |
| Piston Bore 2 (in) | 1.75 |
| Piston Bore 3 (in) | |
| Total Piston Area (in.²) | 4.80 |
Mounting Specifications
| Mount Side | Universal |
| Mount Center (in) | 5.25 |
| Mounting Hole Size (in) | 0.39 |
| Mount Height (in) | 2.03 |
| Inlet Thread Size | 1/8-27 NPT |
