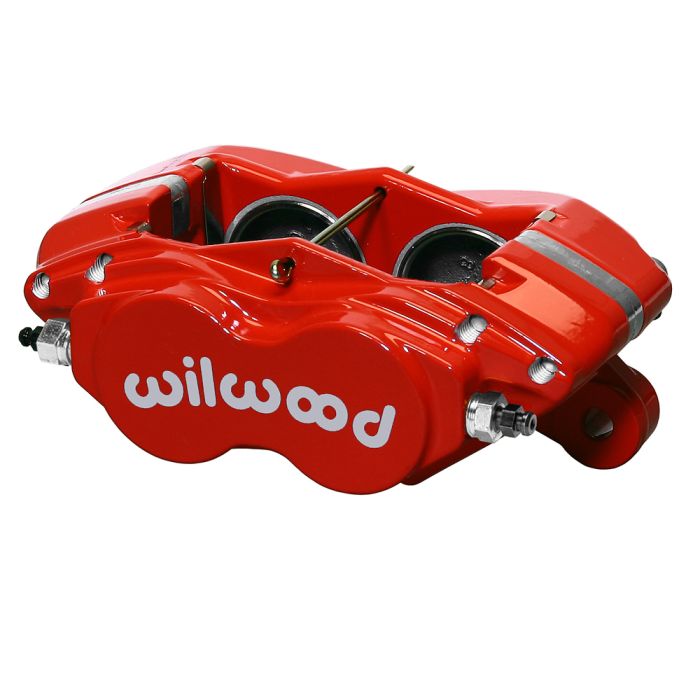

Wilwood 120-13745 Forged Dynalite-M Universal Stud Mount 4-Piston Brake Caliper, Red.

Forged Dynalite-M

The Forged Billet Dynalite-M caliper represents an additional upgrade to the renowned Forged Dynalite series calipers. Specifically designed to optimize outside clearance, it forms the basis of Wilwood's new Classic Style brake kits. The latest advances and innovations in caliper design and manufacturing have resulted in substantial improvements in strength and performance over all comparable models.

The Forged Dynalite-M is the strongest caliper in its class, with weights starting at 1.27 kg (2.80 pounds). The stress-flow forging process realigns the granular structure of the metal within the contour of the caliper body. This process eliminates breaks and interruptions in the internal granular structure that occur when machining a straight block.

The radially transitioning design generated through finite element analysis (FEA) eliminates steps and ledges in the area between the piston housing body and the caliper bridges. The incorporation of a radius in this transition area substantially increases resistance to deflection and caliper separation under load. Structural deflection and volume displacement testing has shown that the Forged Dynalite caliper outperforms all existing models of this popular size. Even without considering the increased strength and reliability of forging, the reduced tendency for deflection and the resulting decreased fluid volume displacement translate to greater clamping efficiency with less pedal travel. In short, a higher pedal and increased braking power. The superior strength of this innovative design is combined with the proven performance features of previous Wilwood designs. Each caliper is equipped with Wilwood's SRS stainless steel bridge plates. SRS plates eliminate bridge wear caused by pad rubbing and extend the life of the caliper body. The spring action of the SRS plates also eliminates pad rattle and dampens harmonic vibrations that contribute to squeal during braking. Other standard Wilwood features include high-temperature seals and stainless steel pistons to eliminate corrosion and reduce heat transfer from the pads. Internal fluid passages eliminate the need for external tubes. Four corner bleed screws ensure simple and effective air evacuation from the system and allow a caliper to be mounted in any position: front, rear, right, or left. Standard competition brake calipers feature Wilwood's distinctive gloss black anodized finish to resist corrosion and maintain their high-tech style. Dust boot No

Rotor Dimensions

Rotor Width (in)	1.25
Rotor Diameter (in)	12.19

Pad Dimensions

Pad Area (in²)	6.36
Pad Volume (in³)	2.1

Service Rating & Material

Material	Forged Aluminum
Weight (lbs)	3.4

Colors and Finish

Color	Red
Finish	Red Powder Coat

Mounting

Mount Center (in)	5.25
Mounting Position
Mounting Side	Universal
Mounting Type	Bolt

Specifications

Rotor Compatibility

Rotor Width (in)	1.25
Maximum Rotor Width (in)	1.27	Minimum Rotor Width (in)	1.19	Maximum Rotor Diameter (in)
Minimum Rotor Diameter (in)	10.00

Brake Pad Specifications

Brake Pad Type 1	7112
Brake Pad Type 2	N-A
Brake Pad Type 3	N-A
Total Pad Area (in²)	6.36
Total Pad Volume (in³)	2.1
Mounting

Piston

Specifications

Piston Diameter 1 (in)	1.75
Piston Diameter 2 (in)	1.75
Piston Diameter 3 (in)
Total Piston Area (in²)	4.80

Mounting Specifications

Mounting Type	Lug
Mounting Side	Universal
Mounting Center (in)
Mounting Hole Size (in)	0.39
Mounting Height (in)	2.03
Inlet Thread Size	1/8-27 NPT
