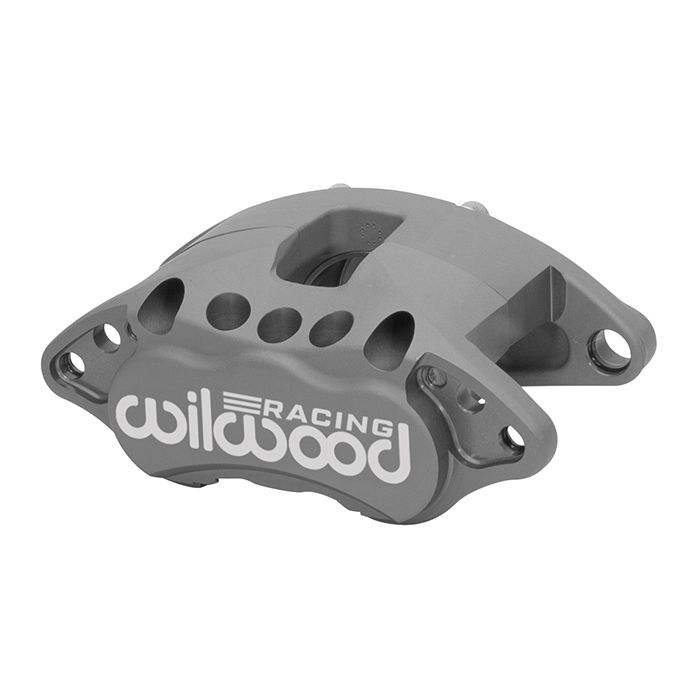

D52-R Floating Single Piston
Wilwood’s new D52-R heavy duty racing caliper features a lightweight 4.3 lb hard anodized Type III forged aluminum body and a stainless steel piston. Choose from 2.75” or 2.38” wide pistons, and 0.81”, 1.04” and 1.28” thick brake discs, with common diameters of 11.75”, 12.19”, and up to 12.50”. The caliper’s fluid inlet port, centered directly behind the piston, eliminates any interference with the slide pins. With a lower deflection rate and higher volumetric efficiency than heavier competing cast models, D52-R calipers also use standard D52 pads available in a variety of compounds for every application. Brake caliper mounting utilizes the original GM height and offset. The D52-R brake caliper, also known as the D52R caliper, is the pinnacle design for OEM replacement racing brake calipers.
Pistons
| Number of Pistons | 1 | ||
| Piston Area (in²) | 5.94 | ||
| Piston Type |
| Dust Boot |
No |
|
Rotor Dimensions
| Rotor Width (in) | 1.28 |
| Rotor Diameter (in) | 12.19 |
Pad Dimensions
| Pad Area (in²) | 10 |
| Pad Volume (in³) | 3.9 |
Service Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 4.7 |
Colors and Finish
| Color | Anodized |
| Finish | Type III Anodized |
Mounting
| Mounting Center (in) | 7.06 |
| Mounting Position | |
| Mounting Side | Universal |
| Mounting Type | Floating |
Specification
Rotor Compatibility
| Rotor Width (in) | 1.28 |
| Max Rotor Width (in) | 1.28 |
| Min Rotor Width (in) | 1.19 |
| Max Rotor Diameter (in) | 12.19 |
| Min Rotor Diameter (in) | 11.00 |
Brake Pad Specifications
| Brake Pad Type 1 | D52 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 10 |
| Total Pad Volume (in³) | 3.9 |
| Mounting |
Piston
Specifications| Piston Diameter 1 (in) | 2.75 |
| Piston Diameter 2 (in) | |
| Piston Diameter 3 (in) | |
| Total Piston Area (in²) | 5.94 |
Mounting Specifications
| Mounting Type | Floating |
| Mounting Side | Universal |
| Mounting Center (in) | 7.06 |
| Mounting Hole Size (in) | 0.69 | Mounting Height (in) | 0.77 | Inlet Thread Size | 7/16-20 |
