PRODUCT DESCRIPTION
Product details

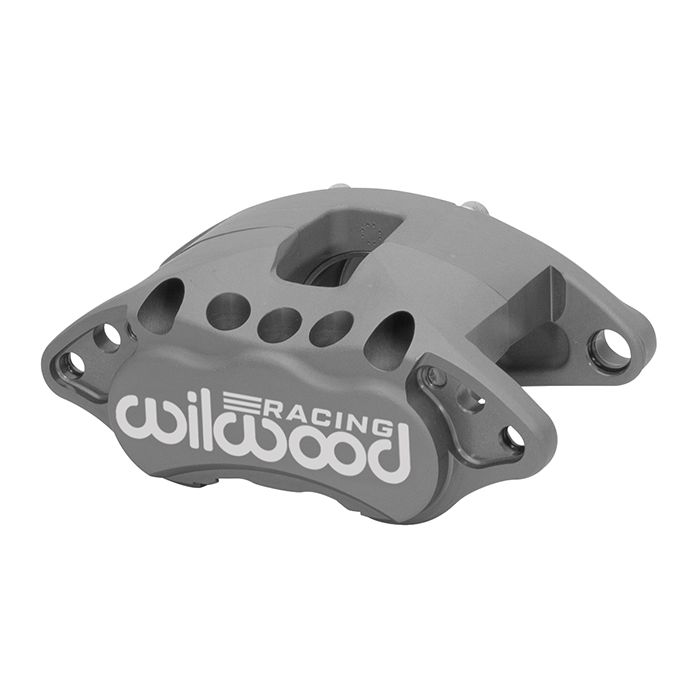

D52-R Single Piston Floating Caliper
Wilwood's new heavy-duty competition brake caliper, the D52-R, features a 4.3 lb (1.95 kg) Type III hard anodized forged aluminum body and a stainless steel piston. Choose from 2.75" or 2.38" wide pistons, and 0.81", 1.04", and 1.28" thick brake rotors, with common diameters of 11.75", 12.19", and up to 12.50". The caliper's fluid inlet port, centered directly behind the piston, eliminates any interference with the slide pins. With a lower deflection rate and higher volumetric efficiency than heavier cast competitive models, D52-R calipers also use standard D52 pads available in a variety of compounds for every application. The brake caliper mounting uses original GM height and offset. The D52-R caliper, also known as the D52R caliper, is the pinnacle design for OEM replacement competition brake calipers.
Pistons
| Number of Pistons | 1 | ||
| Piston Area (in²) | 5.94 | ||
| Piston Type |
| Dust Boot |
No |
|
Rotor Dimensions
| Rotor Width (in) | 1.04 |
| Rotor Diameter (in) | 12.19 |
Pad Dimensions
| Pad Area (in²) | 10 |
| Pad Volume (in³) | 3.9 |
Service Rating & Material
| Material | Forged Aluminum |
| Weight (lbs) | 4.6 |
Colors & Finish
| Color | Anodized |
| Finish | Type III Anodized |
Mounting
| Mounting Center (in) | 7.06 |
| Mounting Position | |
| Mount Side | Universal |
| Mount Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (in) | 1.04 |
| Max Rotor Width (in) | 1.04 |
| Min Rotor Width (in) | 0.94 |
| Max Rotor Diameter (in) | 12.19 |
| Min Rotor Diameter (in) | 11.00 |
Brake Pad Specifications
| Brake Pad Type 1 | D52 |
| Brake Pad Type 2 | N-A |
| Brake Pad Type 3 | N-A |
| Total Pad Area (in²) | 10 |
| Total Pad Volume (in³) | 3.9 |
| Mounting |
Piston
Specifications| Piston Diameter 1 (in) | 2.75 |
| Piston Diameter 2 (in) | |
| Piston Diameter 3 (in) | |
| Total Piston Area (in.²) | 5.94 |
Mounting Specifications
| Mount Type | Floating |
| Mount Side | Universal |
| Mounting Center (inches) | 7.06 |
| Mounting Hole Size (inches) | 0.69 | Mounting Height (inches) | 0.77 |
| Inlet Thread Size | 7/16-20 |
