PRODUCT DESCRIPTION
Product details

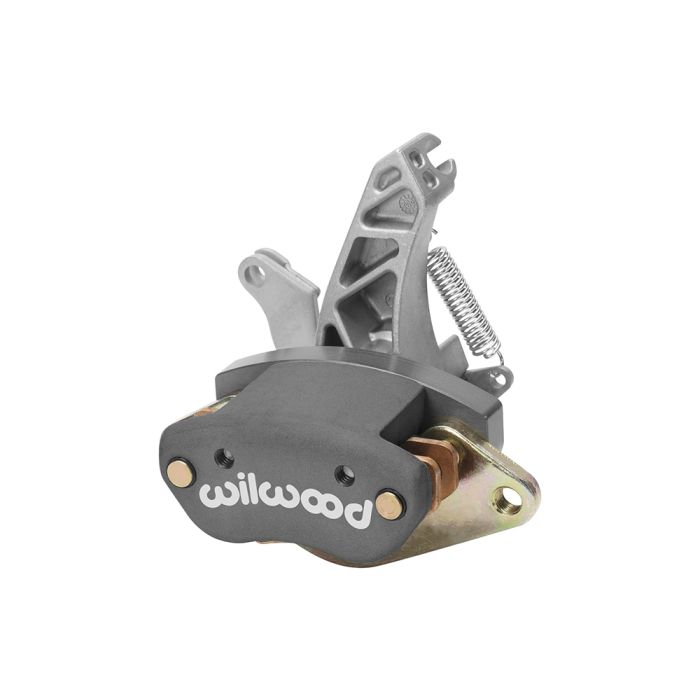

MC5 Mechanical
Wilwood's MC5 mechanical parking brake caliper is a multi-purpose, cable-actuated brake caliper that combines high performance with a simple design and construction, and is the perfect solution for vehicles requiring an independent, mechanically-actuated parking brake. Designed to accept 0.250” thick rotors with a diameter range of 11.00” to 12.88”, the MC5 combines an efficient die-cast body with a forged anvil for superior strength under load, while remaining lightweight at only 3.30 lbs (2.95 without pads). Each caliper includes our high-friction, high-static retention Composite Metallic (CM) brake pads and comes pre-installed with anti-rattle clips. Designed with noise-dampening features for quiet, vibration-free operation, the MC5 floating caliper includes a steel bracket for convenient mounting. Although the caliper is built with a top cable bracket, the lever cartridge can be adjusted in three positions for optimal positioning and easy cable installation. The 1.25” aluminum piston is fully dust-booted to prevent the entry of moisture and debris. Each caliper is equipped with a cable return spring, and the mechanical lever accepts a parking brake cable with a 0.310” diameter barrel end*. The convenient manual adjuster requires no special tools, allowing for incremental adjustment to compensate for pad and rotor wear. MC5 calipers are available with a Type III anodized finish.
Rotor Dimensions
| Rotor Width (inches) | 0.25 |
| Rotor Diameter (in.) | 12.88 |
Pad Dimensions
| Pad Area (sq. in.) | 1.7 |
| Pad Volume (cu. in.) | 0.26 |
Duty Rating and Material
| Material | Cast Aluminum |
| Weight (lbs) | 3.3 |
Colors and Finish
| Color |
| Finish |
Type III Anodized |
|
Mounting
| Mounting Center (inches) | 4.75 |
| Mounting Position | |
| Mounting Side | Left |
| Mounting Type | Floating |
Specifications
Rotor Compatibility
| Rotor Width (inches) | 0.25 |
| Maximum Rotor Width (in.) | 0.25 |
| Minimum Rotor Width (in.) | 0.15 |
| Maximum Rotor Diameter (in.) | 12.88 |
| Minimum Rotor Diameter (in.) | 11.00 |
Brake Pad Specifications
| Brake Pad Type 1 | 6407 |
| Brake Pad Type 2 | N/A |
| Brake Pad Type 3 | N/A |
| Total Pad Area (sq. in.) | 1.7 |
| Total Pad Volume (cu. in.) | 0.26 |
| Mounting |
Piston Specifications
| Piston Diameter 1 (in) | 1.25 |
| Piston Diameter 2 (in.) | |
| Piston Diameter 3 (in.) | |
| Total Piston Area (sq. in.) | 1.19 |
Mounting Specifications
| Mounting Type | Floating |
| Mounting Side | Left |
| Mounting Center (inches) | 4.75 |
| Mounting Hole Size (inches) | 0.67 |
| Mounting Height (inches) | |
| Inlet Thread Size | N/A |
