22-Gallon R22A Fuel Cell, Radium Engineering

OVERVIEW: A competition fuel cell offers maximum performance and safety for high-performance vehicles. RA series fuel cells are designed and manufactured by Radium Engineering to meet the highest safety requirements set by international safety organizations FiA and SFI.

These fuel cells are ideal for all types of motorsport disciplines, including circuit racing, time attack, drifting, rally, off-road racing, endurance, and many more.

CONSTRUCTION: The main component of the fuel cell is the bladder. This part undergoes extensive testing and holds the necessary certifications. Radium RA series bladders are made from a special polymer resistant to all types of fuels (gasoline, diesel, avgas, E15, E85, ethanol, methanol, etc.).

The bladder is housed in a lightweight, powder-coated aluminum enclosure that protects it from damage and dirt. It includes pre-cut anti-explosion foam and an innovative threaded aluminum ring that makes fuel pump installation quick and easy.

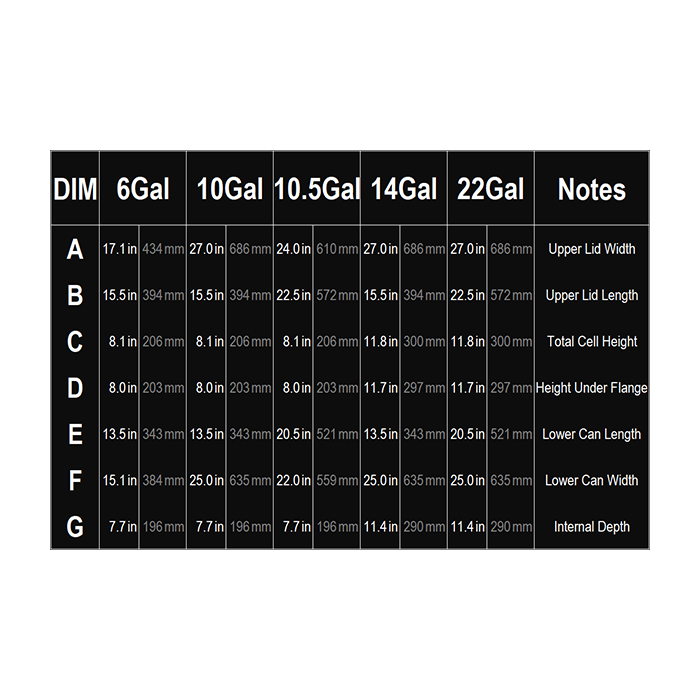

DIMENSIONS: The manufacturing process for these fuel cell bladders inherently requires large tolerances, leading to variations in their physical size. The volumes listed below represent the expected ranges for each bladder. NOTE: These measurements do not include any objects inside the fuel cell. 20-0606 Gallons: 5.4 - 6.0 Liters: 20.3 - 22.7 20-0610 Gallons: 9.2 - 10.0 Liters: 34.8 - 37.9 20-0611 Gallons: 10.3 - 10.5 Liters: 38.9 - 39.7 20-0614 Gallons: 13.7 - 14.0 Liters: 51.9 - 53.0 20-0622 Gallons: 21.5 - 22.0 Liters: 81.5 - 83.3

INCLUDES: - Seamless polymer bladder - Anti-explosion and anti-slosh foam - Powder-coated aluminum enclosure - Anodized aluminum nut ring - Removable inspection 6x10 FKM plate, 24-bolt gaskets, 2 screws, stainless steel hardware, certificate of conformity.
