PRODUCT DESCRIPTION
Product details

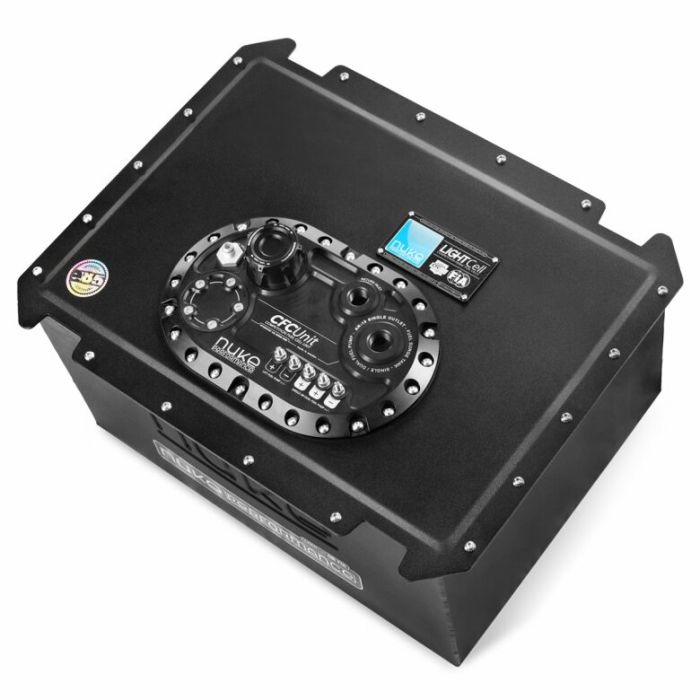

LightCell Fuel Cell with Nuke Performance CFC Unit Specifications: For more information about the specifications, see the product manual. Part numbers shown as: HP = High-Profile CFC Unit / B = Brushless CFC Unit
25 Litre Fuel Tank Part No.
1500-09-501 (HP: 150-09-025 / B: 150-09-125)
Length
395mm (15.55") + 25mm (1") flange on all sides
Depth
335mm (13.19") + 25mm (1") flange on all sides
Height
210mm (8.27")
Weight
5420g (11.95lb) without CFC Unit
Fuel Capacity
25 Litres (7 Gallons)
For Motorsport Use
YES
Homologation
YES, 5-year homologation
Fuel Level Sensor
150-FLS-08: 203mm (8")
EAN
HP:7340209506556 / B:7340209506563
35 Litre Fuel Tank. Part Number:
1500-09-502 (HP:150-09-035 / B:150-09-135)
Length:
526mm (20.71") + 25mm (1") flange on all sides
Depth:
335mm (13.19") + 25mm (1") flange on all sides
Height:
210mm (8.27")
Weight:
6750g (14.88lb) without CFC Unit
Fuel Capacity:
35 Litres (9 Gallons)
For Motorsport Use:
YES
Homologation:
YES
Fuel Level Sensor:
150-FLS-08: 203mm (8")
EAN
HP:7340209506570 / B:7340209506587
45 Litre Fuel Tank. Part Number:
1500-09-503 (HP:150-09-045 / B:150-09-145)
Length:
526mm (24.80") + 25mm (1") flange on all sides
Depth:
335mm (22.05") + 25mm (1") flange on all sides
Height:
270mm (8.86")
Weight:
7450g (16.42lb) without CFC Unit
Fuel Capacity:
45 Litres (12 Gallons)
For Motorsport Use:
YES
Homologation:
YES
Fuel Level Sensor:
150-FLS-10: 254mm (10")
EAN
HP:7340209506594 / B:7340209506600
55 Litre Fuel Tank. Part Number:
1500-09-504 (HP:150-09-055 / B:150-09-155)
Length:
526mm (24.80") + 25mm (1") flange on all sides
Depth:
405mm (15.94") + 25mm (1") flange on all sides
Height:
270mm (8.86")
Weight:
8320g (18.34lb) without CFC Unit
Fuel Capacity:
55 Litres (15 Gallons)
For Motorsport Use:
YES
Homologation:
YES
Fuel Level Sensor:
150-FLS-10: 254mm (10")
EAN
HP:7340209501414 / B:7340209501421

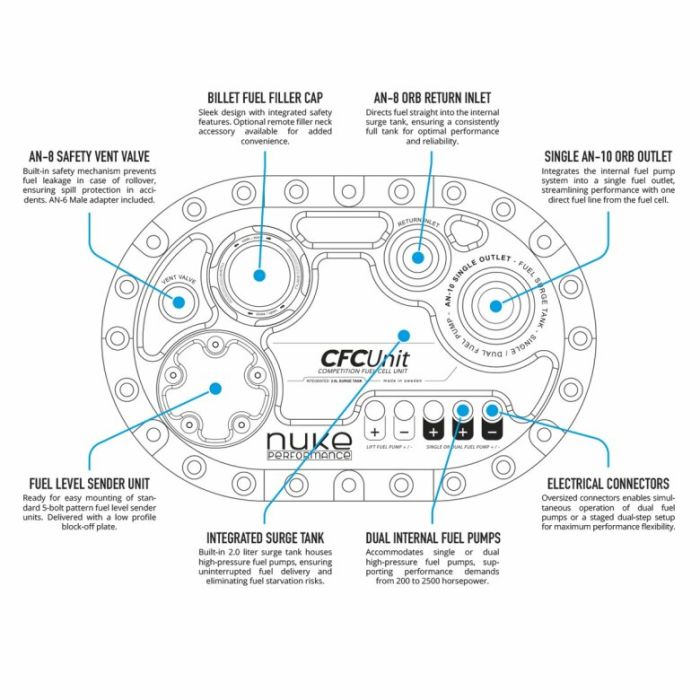

Nuke Performance CFC Unit - High Profile / Brushless Specifications:
Included CFC Unit Part Number:
HP:150-05-203 / B:150-05-204
Minimum Mounting Depth:
197mm (7.75")
Mounting Bolt Pattern:
6x10" 24-bolt pattern
High-Pressure Fuel Pump Connector:
3x 6mm Connectors (Max 125 Amp Each) *
Pickup Fuel Pump Connector:
2x 6mm Connectors (Max 125 Amp Each)
Length:
295mm (13.74")
Width:
194mm (9.88")
Weight:
HP:2254g (4.96lb) / B:2290g (5.05lb)

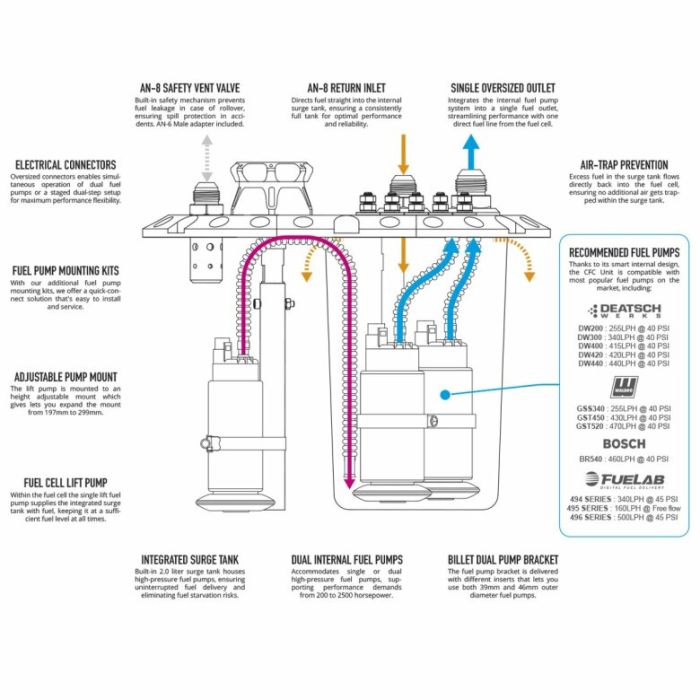

Compatible with Multiple Lift Fuel Systems Pumps
1x Internal Fuel Pump
Compatible with Multiple High-Pressure Pumps:
1 or 2 internal fuel pumps **
High-Pressure Fuel Pump Compatibility:
OD: 39mm (1.53") / OD: 42mm (1.65") / OD: 46mm (1.81")
Fuel Compatibility:
Gasoline, Methanol, Ethanol, E85
Internal Surge Tank Volume:
Approx. 2.0 Litres (0.53 Gallons)
Outlet Port, Thread:
