Nuke Performance 40L AluCell Fuel Cell with Nuke Performance CFC Unit

The lightweight and economical AluCell aluminum fuel cells are combined with the Nuke Performance surge tank (CFC unit).

This product offers an affordable solution for those who do not require FIA homologation for professional racing, but want to enjoy all the advantages of the Nuke Performance CFC unit. The fuel pump bracket with integrated surge tank provides this functionality, including:

40/60 liter aluminum fuel cell
Integrated 2-liter surge tank
Compatible with gasoline, methanol, and E85
Integrated brackets for easy and secure mounting
Compatible with single or dual high-pressure fuel pumps
AN-10 outlet and AN-6 vent safety valve
Low-profile fuel filler cap with integrated roll-over valve

Nuke Performance AluCell fuel cells are suitable for use with carburetor-based fuel systems and with the integrated Nuke Performance CFC unit. They eliminate the need for an external surge tank, which is indispensable for the operation of a fuel cell, making them a perfect alternative for fuel injection systems. AluCell cells are made from the highest quality aluminum, suitable for all types of fuel and 100% compatible with gasoline, methanol, and ethanol.

Technical information:

Competition Fuel Cell Unit:

• CNC machined from 6063 aluminum alloy.

• Stainless steel bolts for increased durability and a flawless look.

• The surge tank has an approximate capacity of 2 liters.
• 6x10” machined aluminum plate with standard 24-bolt pattern.

• Minimum mounting depth: 219 mm.

• Viton O-rings and ethanol-resistant seals.

• Outlet port: AN-10 (7/8 UNF), available in AN-8, AN-10, and AN-12.

• Return port: AN-8 (3/4 UNF), available in AN-6, AN-8, and AN-10.

• Vent port: AN-8 (3/4 UNF), available in AN-6, AN-8, and AN-10.

• Delivered with 1x AN-8 (3/4 UNF) to AN-6 male adapter for ventilation, 1x AN-8 (3/4 UNF) to AN-8 male adapter, 1x AN-10 (7/8 UNF) to AN-8 male adapter, and 1x AN-10 (7/8 UNF) to AN-10 male adapter.

Competition Fuel Cell Unit:

• Corrosion resistant 5083 H111 heavy-duty aluminum.

• 5-axis robot welded from two aluminum sheets.

• Integrated brackets 4 x 8.5 x 23.5 mm (0.33 x 0.92”).
• 6x10” stainless steel flange with 24-bolt pattern.

• Powder coated exterior finish.

• Suitable for all fuel types, including alcohol-based fuels.

Measurements:

AluCell 40 liter tank. Part number: 150-07-041

Length: 555 mm (21.85”)

Depth: 377 mm (14.84”)

Height: 251 mm (9.88”)

Weight: Not available (including CFC unit)

Mounting holes: 8.5 x 23.5 mm (0.33 x 0.92”)

Compatible with fuel level sensor: 150-FLS-09-02 (9” / 228 mm)

AluCell 60 liter tank. Part number: 150-07-061

Length: 577 mm (22.71”)

Depth: 555 mm (21.85”)

Height: 250 mm (9.84”)

Weight: N/A, including CFC unit

Mounting holes: 8.5 x 23.5 mm (0.33 x 0.92”)

Compatible with fuel level sensor: 150-FLS-09-02 (9" / 228 mm)

Included in the package:

1 x AluCell 40 liter (10.55 gallon) / 60 liter (15.85 gallon) aluminum fuel tank

1 x Nuke Performance Competition fuel tank unit

1 x AN-10 (7/8 UNF) to AN-8 male outlet connector

1 x AN-10 (7/8 UNF) to AN-10 male outlet connector

1 x AN-8 (3/4 UNF) to AN-8 male return connector

1 x AN-8 (3/4 UNF) to AN-6 male vent safety valve

* Fuel pump not included

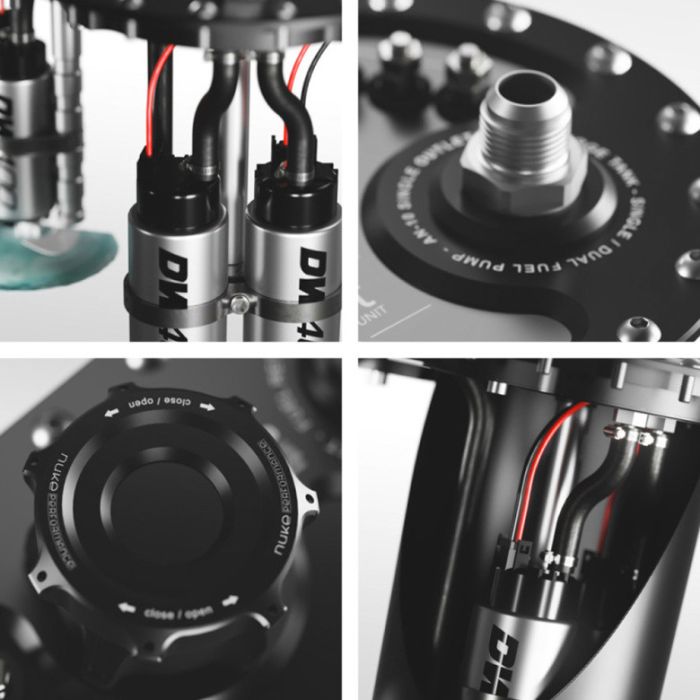

Integrated 2-liter surge tank, machined aluminum bracket for 1 or 2 fuel pumps

AluCell aluminum fuel tanks include the Nuke Performance CFC unit as a replacement for the fill plate. The unique Nuke Performance CFC unit is the perfect solution for a simplified high-performance fuel system, where simplicity and durability are paramount. This setup eliminates the need for a space-consuming external surge tank. With all necessary fuel pumps integrated into the tank itself, this is the only component needed. This frees up space and weight, and increases safety, as fewer fuel line connections are required and no external fuel pumps are used.

Internal high-pressure fuel pumps, for any need between 200 and 2000 HP

AluCell tanks include the unique Nuke Performance CFC unit with integrated surge tank function and are compatible with single or dual high-pressure fuel pumps from Deatschwerks, AEM, Ti Automotive, Walbro, Bosch, Fuelab, Aeromotive, and many more. It is compatible with all common 39mm fuel pumps, as well as the larger Deatschwerks DW400, Walbro GST450/GST520, Bosch BR540, and Aeromotive Stealth 450. This solution provides a constant fuel flow for power outputs between 200 and 2000 horsepower, without any fuel starvation, even under demanding driving conditions, thanks to the internal surge tank.

The CFC unit is compatible with most common fuel pumps. Together with Nuke Performance fuel pump mounting kits, setting up a high-performance fuel system has never been easier.

How are the fuel pumps mounted inside the AluCell fuel tank and surge tank?

The single tank-mounted fuel pump works as a lift pump, ensuring that the high-pressure fuel pumps within the oversized 2-liter (0.53 gallon) surge tank always have enough fuel to maximize flow and minimize the risk of fuel starvation that can severely damage the engine. For more information, download the product manual. The CFC unit is delivered with everything needed for installation. The fuel pumps of your choice, but we recommend adding one of our fuel pump mounting kits for optimal operation. All fuel pumps are securely mounted in any condition thanks to the machined brackets.

Fuel pump mounting kits: Learn more about fuel pump setup

Additional fuel pumps: Explore our selection of fuel pumps

Delivered with all necessary fittings for quick and easy installation

The Nuke Performance CFC unit includes an AN-10 (7/8 UNF) to AN-8 male fitting and an AN-10 male fitting, as well as an AN-8 (3/4 UNF) to AN-8 male return fitting. Using the oversized high-flow AN-10 outlet combines the internal fuel pumps into a single fuel line and minimizes the need for external equipment, hoses, and fittings. The vent fittings with roll-over protection are AN-6 and can be changed to AN-6 to AN-10 when needed. Additional AN-6 to AN-12 fittings are sold separately as accessories.

Outlet fittings:
AN-10 (7/8 UNF) to AN-8 male connector: Part no.: 700-01-116

AN-10 (7/8 UNF) to AN-10 male connector: Part no.: 700-01-112

AN-10 (7/8 UNF) to AN-12 male connector: Part no.: 700-01-113
Return and vent connectors:

AN-8 (3/4 UNF) to AN-6 male connector: Part no.: 700-01-101

AN-8 (3/4 UNF) to AN-8 male connector: Part no.: 700-01-102

AN-8 (3/4 UNF) to AN-10 male connector: Part no.: 700-01-103

Lightweight 40/60 liter aluminum fuel tank with integrated brackets

To ensure maximum quality, AluCells are made from two automatically welded aluminum pieces by a 5-axis welding robot. Each unit undergoes individual pressure testing before surface treatment to ensure maximum functionality and compliance with CE certification specifications. Thanks to the use of highly corrosion-resistant 5083 H111 aluminum, it does not require internal anodizing or powder coating (common in cheaper fuel cells), which are affected by alcoholic fuels such as ethanol. This prevents damage to injectors and filters when the coating dissolves. Choose between 40-liter (10.56 gallons) and 60-liter (15.85 gallons) versions.

Developed, designed, and manufactured in Sweden

The Nuke Performance Competition Fuel Cell is developed, designed, and manufactured in Sweden by Nuke Performance to offer the highest quality, with the same hallmark as all other parts in our range of lightweight motorsport components. Nuke Performance quality is second to none!

The AluCell fuel cell kit includes:

1 x AluCell 40 liter (10.55 gallon) / 60 liter (15.85 gallon) aluminum fuel cell

1 x Nuke Performance Competition fuel cell unit

1 x AN-10 (7/8 UNF) to AN-10 male outlet connector

1 x AN-8 (3/4 UNF) to AN-8 male return connector

1 x AN-8 (3/4 UNF) to AN-6 male vent safety valve

AluCell Specifications

For more information on specifications, please refer to the product manual.

AluCell 40 liters, part no. 150-07-041

Length: 555 mm (21.85”)

Depth: 377 mm (14.84”)

Height: 251 mm (9.88”)

Weight: Not available (including CFC unit)

Fuel capacity: 40 liters (10.56 gallons)

AluCell 60 liters, part no. 150-07-061

Length: 577 mm (22.71”)

Depth: 555 mm (21.85”)

Height: 250 mm (9.84”)

Weight: Not available, including CFC unit

Fuel tank capacity: 60 liters (15.85 gallons)
