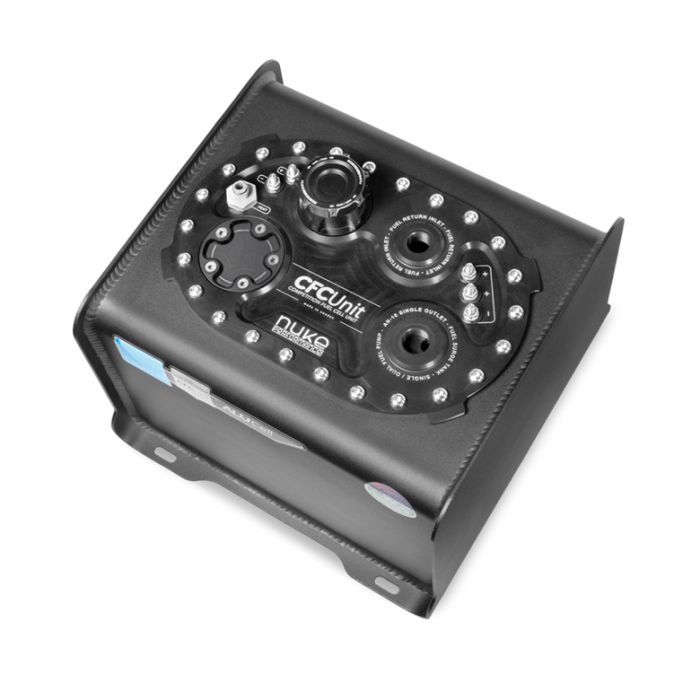

Nuke Performance 20L AluCell Fuel Cell with Low Profile CFC Unit (Standard)

Lightweight and cost-effective AluCell aluminum fuel cells are combined with the Nuke Performance surge tank (CFC unit). This product offers an affordable solution for those who do not require FIA homologation for professional competition but want to enjoy all the advantages of the Nuke Performance CFC unit. The fuel pump bracket with integrated surge tank provides this functionality, which includes:

20 / 40 / 45WC / 60 / 80 liter aluminum fuel cell
Integrated 2-liter surge tank
Suitable for all types of fuels, including E85

Integrated brackets for easy and secure mounting

Compatible with single or dual high-pressure fuel pumps
Oversized AN-10 ORB outlet for maximum flow

NEW: Available in a new 45-liter version
Low-profile fuel filler cap with integrated roll-over valve

Nuke Performance AluCell fuel cells are compatible with carbureted fuel systems and the integrated Nuke Performance CFC unit. They eliminate the need for an external surge tank, which is essential for fuel cell operation, making them a perfect alternative for fuel injection systems. AluCell cells are made from the highest quality aluminum for use with all types of fuels and are approved for gasoline, methanol, and ethanol. AluCell Specifications

40-liter AluCell Fuel Tank Part No.

150-07-041

Length

555 mm (21.85”)

Depth

377 mm (14.84”)

Height

251 mm (9.88”)

Weight

9050 g (19.95 lb), incl. CFC unit

Fuel Capacity

40 liters (10.56 gallons)

For Motorsports Use
YES

Homologation
NO

EAN
7340209500356

The AluCell Fuel Tank Kit includes:

1 x 20-liter / 40-liter / 60-liter / 80-liter AluCell aluminum fuel tank

1 x Nuke Performance CFC unit - low-profile version

2 x 8 mm hose fittings with 1/4" BSPP to male thread
1 x 1/4" BSPP plug, for use with a single high-pressure fuel pump

2 x 39 mm inserts for high-pressure fuel pump bracket

1 x Viton gasket for fuel tanks with 24-bolt pattern (suitable for alcohol fuels)

1 x Low-profile filler cap (remote filler neck available as an accessory)

1 x Machined aluminum dual fuel pump bracket and adjustable pickup pump bracket

1 x AN-8 (3/4 UNF) male to AN-6 vent safety valve

1 x FLS spacer, for fuel level sensors with an asymmetrical bolt pattern

24 x 1/4-28 UNF x 1 screws with nylon washers
