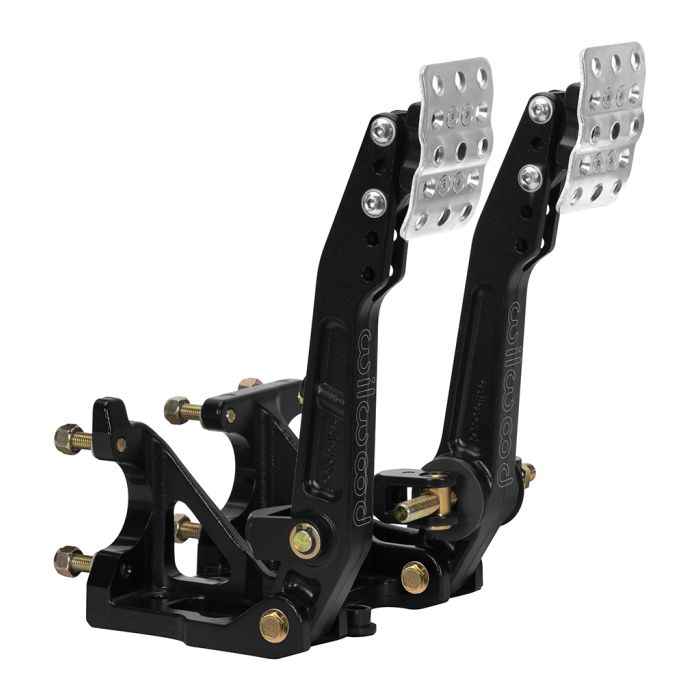

Wilwood 340-16606 Floor Mount Brake and Clutch Pedal

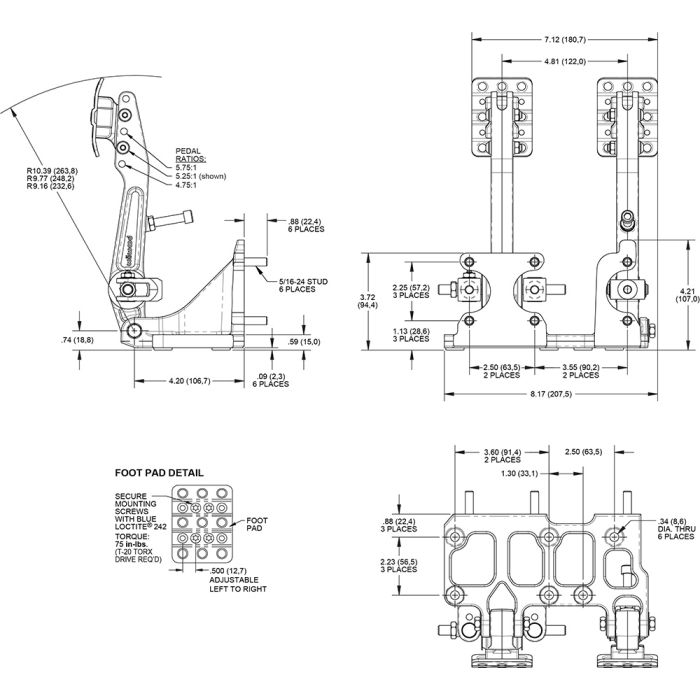

Adjustable ratio balance bar brake pedal, in a floor mount brake and clutch pedal assembly. The pedal head adjusts vertically to provide a 4.75, 5.25 or 5.75:1 ratio for increased sensitivity or reduced pedal effort. One clutch and two brake master cylinders mount to the assembly, with an adjustable balance bar allowing fine tuning of front to rear braking distribution. Waffle textured anti-slip pads can be adjusted laterally from 3.75 to 5.75-inches between centers for driver preference. Pedals feature a lightweight aluminum frame, with heavy-duty reinforced I-beam style forged pedal arms. The balance bar incorporates a positive retaining stop at each full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob for quick on-track adjustments. A clevis and pin pushrod attachment system ensures the smallest possible misalignment angle for bind-free operation throughout the range of travel. This pedal supports three Wilwood single outlet master cylinders with a 2.25-inch vertical mounting flange, available separately in a variety of styles and bore diameters.
