Wilwood Brake Pads 150-40-7812K BP-40 7812 High Temp Race Pads .49

High-Temp Racing Brake Pads

Pad #: 7812

Compound: BP-40

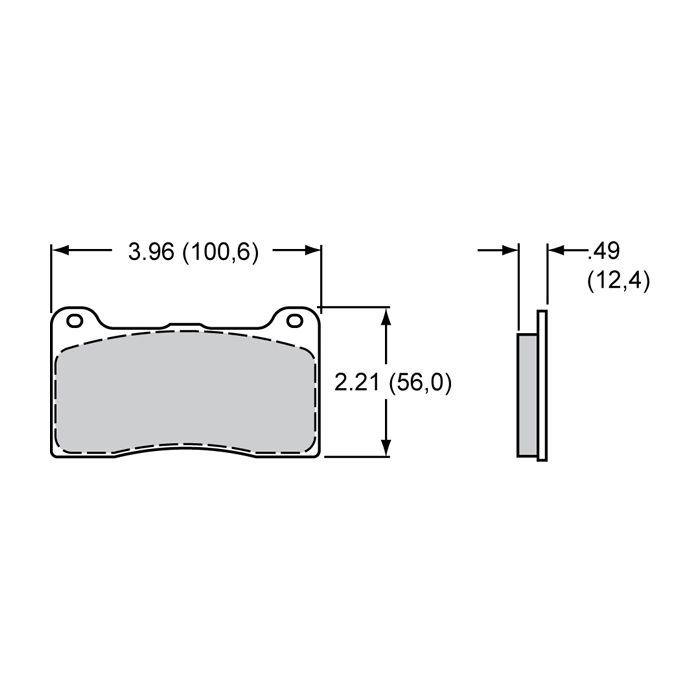

Pad Dimensions

Thickness (in.)

0.49

Area (in.²)

6.36

Volume (in.³)

2.1

Bed-in
No

Dust & Noise Rating

Dust Production Rating
N/A

Pad Noise Rating
N/A

BP-40 Compound

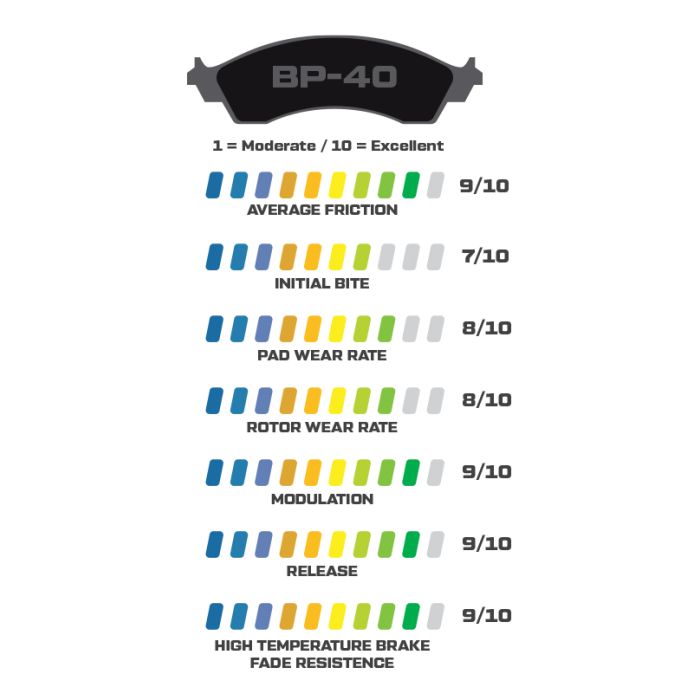

Pad Features

High friction pad with aggressive initial response

Good low temperature response

Low wear during extended high-temperature braking

Predictable and linear response with excellent modulation

High resistance to heat fade

Pad Applications

Race only - Not for street use

Road course

Asphalt oval

Dirt (all classes)

Off-road

Rotor Material

Steel
Stainless Steel

Iron

Super Alloy

Titanium

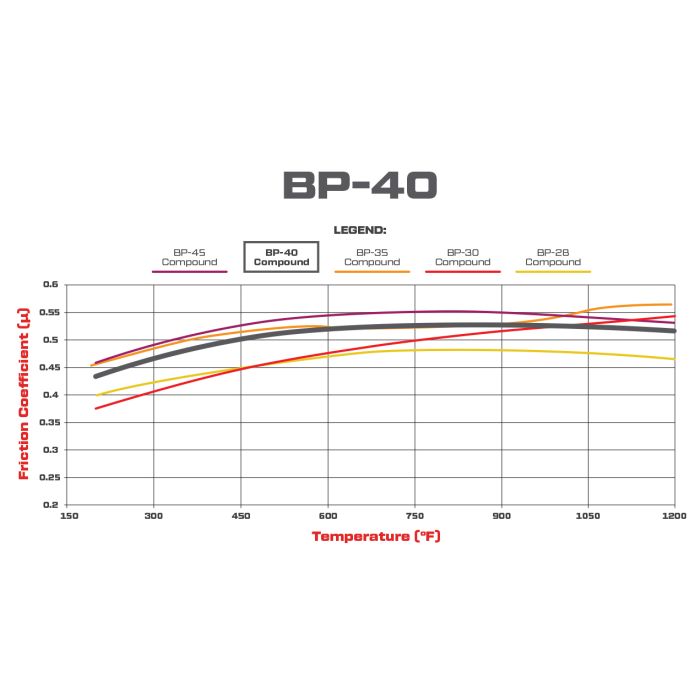

The temperature range and overall friction value are the primary considerations for pad selection. Pads must maintain the appropriate amount of friction for optimum stopping power within the temperatures that will be reached on the track. Overall wear should also be considered. For most asphalt and road race applications, high-temperature compounds, in excess of 1000°F (538°C), are generally required. Dirt track, drag racing, and high-performance street applications often operate at temperatures between 500°F and 1000°F (260°C and 538°C). Please note that these are general ranges, not absolute values. Many unforeseen factors and influences can affect brake temperatures. The best indicator for pad selection will always be on-track performance. If friction loss (pad fade) occurs due to overheating, improved cooling, a heavier rotor, or a higher temperature range pad may be necessary.

Wilwood Caliper(s) Compatible with Pad #7812
