CANchecked MFD32 Gen2 Universal Multifunction Display

With the CANchecked MFD32 Gen2 universal data display, you always have all information in view.

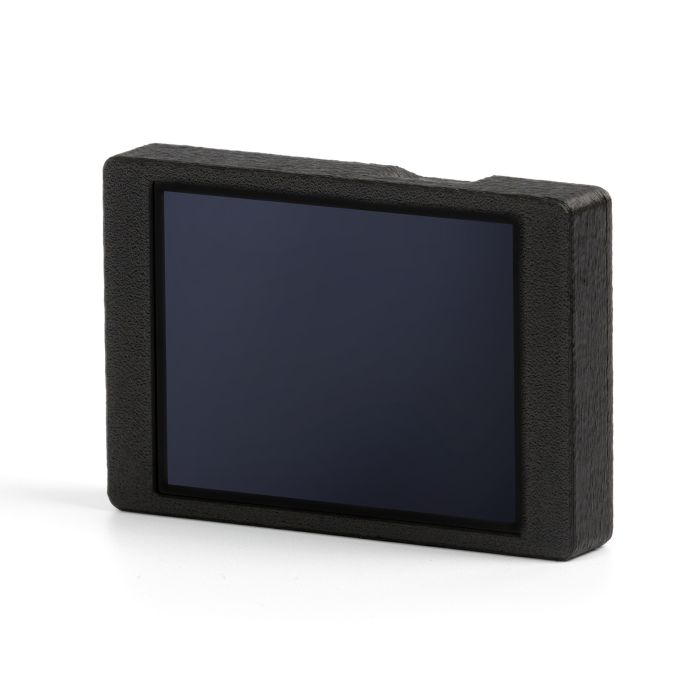

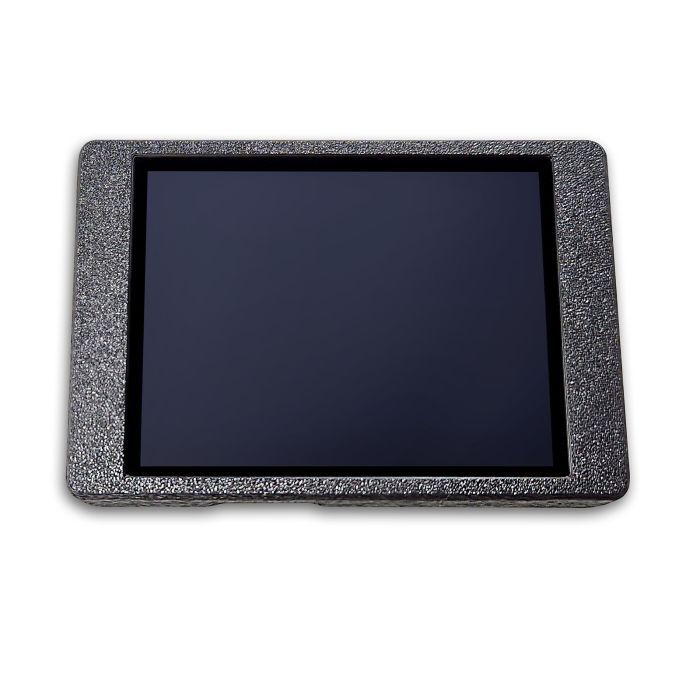

The MFD32 Gen2, in its universal version, fits any vehicle and is a smart display with essential functions. Its lightweight plastic housing stands out with a symmetrical design and can be used both vertically and horizontally.

Key Features

Compact Size: External dimensions: 89.5 x 60.5 mm; depth: 19.5 mm (without connector).

Can Bus: Detailed vehicle data display, like manufacturer diagnostic tools.

Gear Indicator: Directly via Can Bus or calculated from speed and rpm.

Touchscreen: Navigate through pages with intuitive gestures.

Customization: Design your own pages, add images, or launch animations.

Additional Inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.

CAN Switching: Use the display as a keypad and send your own CAN messages to the bus.

Customizable Alarms: Easily configure and trigger customizable alarms. For example, receive an important warning when exhaust gas temperature exceeds 900 degrees.

Data Logging: Log and save your data to the internal SD card for later analysis.

Performance Meter: Measure your 0-100 km/h, 100-200 km/h, and 0-200 km/h times with the integrated performance meter, no additional hardware needed.
DTC*: Read and clear errors from engine control unit, transmission, ABS, and all-wheel drive.

Dimming*: The display automatically dims with the instrument cluster.

Different Views

Configure your own page or choose from various predefined views:

The display includes predefined sample pages.

Custom pages can be created.

Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).

Widgets can be scaled and positioned by dragging and dropping.

Widget colors fully adjustable.

Up to 64 widgets per page.

Display Configuration Software (DSS)

With CANchecked DSS, you can fully customize your display. With the integrated log viewer, you can download and visualize log files. Additionally, a CAN logger is included. The core is the integrated "TRI Editor," with which you can adjust sensors (whether CAN Bus or internal): assign min and max values for warnings and change the names of your sensors.

Supported Values

Many customers ask: "What values can I get from my ECU?" The answer: "ALL."

We have reverse-engineered data from most engines and can provide detailed information. Our display supports querying CAN Bus data (UDS, TP2, manufacturer-specific protocols).

By default, your display is delivered with predefined TRI/TRX files. In these files, all queried sensors are defined. These vary depending on the engine. Below is an excerpt of the possibilities:

Temperatures:

Exhaust temperature, coolant temperature, oil temperature, intake temperature, ambient temperature, fuel temperature, DSG gearbox temperature.

Pressures:

Boost pressure, ambient pressure, pre-feed fuel pump pressure, rail pressure (actual/target).

Lambda/Mixture

Lambda value, injection time, short-term Lambda trim, long-term Lambda trim

Others

RPM, mass air, vehicle speed, throttle angle, total ignition angle, ignition angle retard per cylinder, N75 ignition advance in %, terminal 30 voltage, engine torque, gear, diesel-specific values

If values are missing, they can be added later. Of course, your new data display supports a wide range of freely programmable control units, such as:

DTA Fast Ecumaster Emerald Emtron Haltech Hondata KMS van Kronenburg LinkECU MaxxECU MBE Megasquirt Motec Motorsport Electronics Syvecs Trijekt VEMS

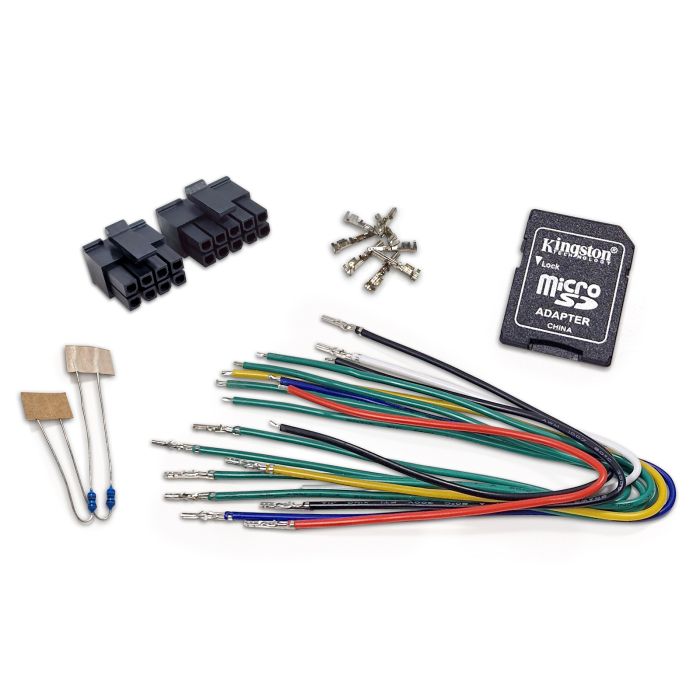

Package Contents

Each package includes:

MFD32 Gen2 data display with lightweight plastic housing

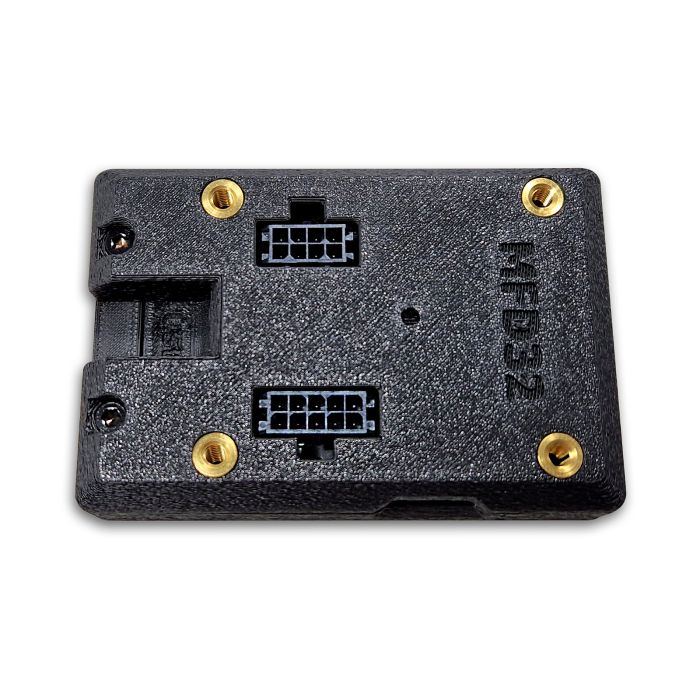

Connector A (8-pin Molex)

Connector B (10-pin Molex)

Pre-assembled connection cables of different colors (length: 20 cm, intended use: power, CAN bus, analog inputs, 5V, sensor ground)
Crimping pins

Two 1 kΩ resistors (as pull-up for connecting external NTC sensors)
Quick Start Guide
USB data cable
SD card (pre-installed in the display)
SD card adapter
Screen protector film (to prevent reflections)

Connection and Extension

Sensors of any type can be connected via the four analog inputs; we support linear 0-5V signals as well as... NTC sensors. Our CAN-certified sensors are stored by default in the TRI/TRX files and only need to be connected:

AIN1: Temperature sensor (NTC01)

AIN2: Transducer for K-type exhaust gas temperature sensor (TCC01)

AIN3: Pressure sensor 0-10 bar (FLP01)

AIN4: Boost pressure sensor 0-5.5 bar absolute (BST10)

For connection, you can use our pre-assembled AIN wiring harness.

In addition to analog sensors, you can also connect our external shift light with eight LEDs. This can flash in different colors, and the speed limits and colors can be configured directly on the display.

The ethanol sensor connects directly to the display. A pull-up resistor (10 kΩ) is needed between 5V and the signal. This way, ethanol content and temperature can be displayed and logged directly on the screen.

Advanced Functions

With math channels, you can calculate sensor data from each other. The user table allows generating additional sensors with 2D or 3D maps.

Optional Accessories

CC10001 GPA32 - Adapter for 52mm gauge MFD32(S)
CC24000 SLM08 - External Shift Light Module
CC22780 ANC04 - Four-way AIN Wiring
CC22100 CBD08 - Eight-way CAN Distribution Hub
CC22902 NTC01 - Temperature Sensor for Liquids 1/8" NPT
CC22903 TCC01 - K-type Converter 0-1250 °C
CC22901 FLP01 - Pressure Sensor 0-10 bar (145 psi) M10x1
CC22900 BST10 - Pressure Sensor 6.5 bar (95 psi)

*Not available for all protocols
