PRODUCT DESCRIPTION
Product details

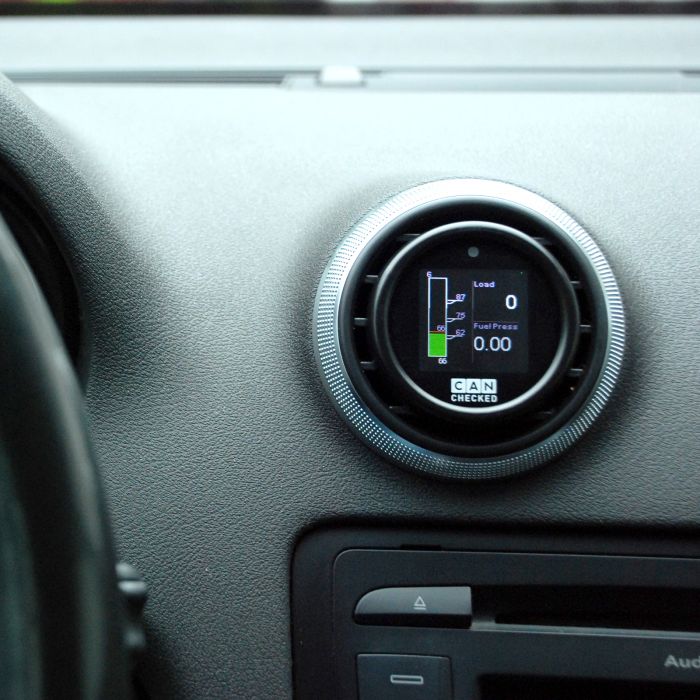

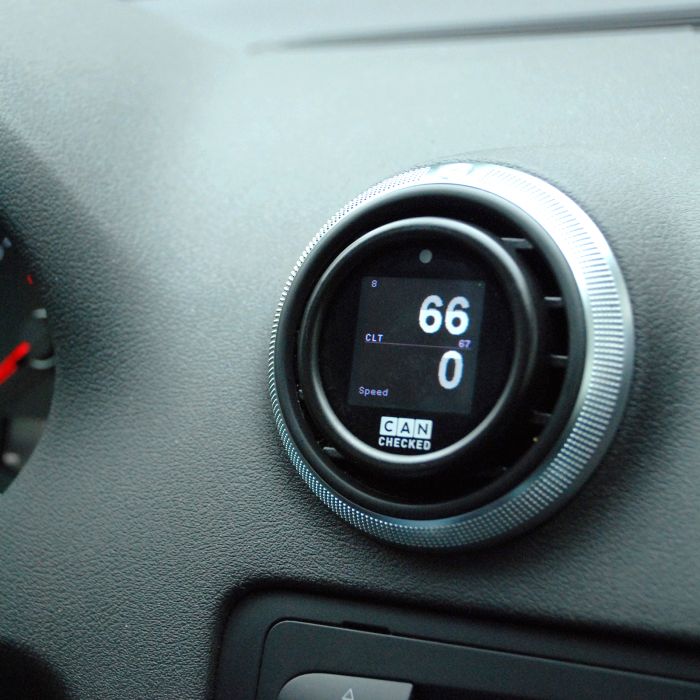

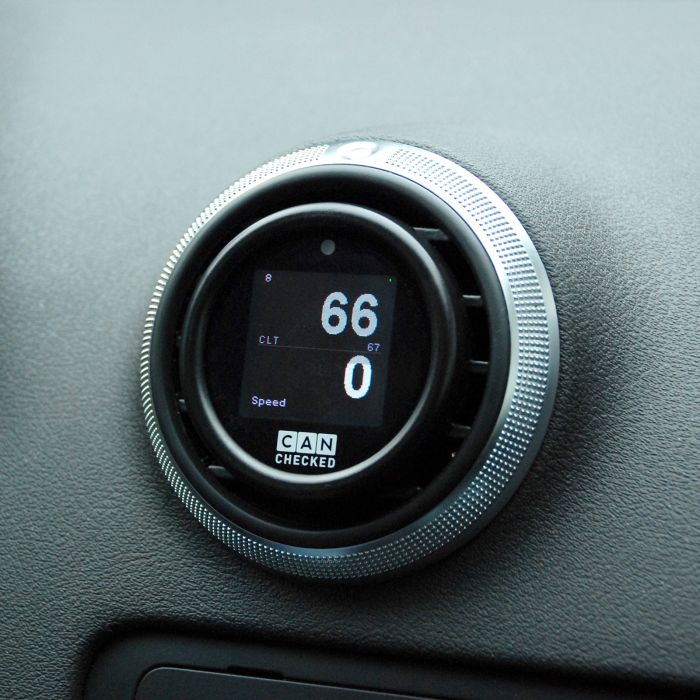

With this MFD15 Gen2 CANchecked data display specifically for your Audi RS3 8P, you will always have all relevant values in view.
The MFD15 Gen2 is equipped with an OLED display which offers excellent readability even in direct sunlight. This kit includes a vehicle-specific trim panel and connection kit. It is operated by two push buttons on the front panel. You can also connect our optional rotary knob.
Key Features
Compact Design: 52 mm diameter and only 12.5 mm deep.
LED in the front panel: The LED on the front of the display can be used as a shift light or as a warning LED.
Can Bus: Compatible with Can Bus ECUs, proprietary Can streams and from 2008 onwards with OBD2 and in-depth values for VAG vehicles.
Wi-Fi: Connect it to your smartphone or PC and configure it using our web app.
Additional Inputs: Connect up to 6 analogue sensors to the inputs or connect an ethanol sensor* directly to the display.
Predefined alarms: Easily activate and customise predefined alarms. For example, receive an important alert when exhaust gas temperature exceeds 900 degrees.
Customisation: Use your own logo and colour scheme to customise your MFD15 Gen2.
Online logging*: Log your data with your smartphone or PC and save the log to your device for later analysis.
Flex fuel*: View ethanol content and temperature on the display.
Can switching*: Switch between cans using the buttons on the display and send the readings from your analog inputs to the CAN bus.
Different views
Choose up to eight pages with different views and customise the display to best suit you and your vehicle:
Analogue pointer
Double value
Gear indicator
Quadruple values
Sextuple values
Bar + dual display
Round display
Bar graph (double horizontal)
Performance meter
Bar graph (1 to 6 vertical bars)
Single value
Configuration via online display setup software (oDSS)
New to our MFD15 Gen2, you can access the device via Wi-Fi. This allows you to configure the MFD15 Gen2 from your smartphone or PC.
With oDSS, you can completely configure your display, log values (license required), upload your own start-up image and update the display.
Supported Values
A common customer question is: What values can I query from my ECU? The answer: ALL. Your new MFD15 Gen2 supports ISO 11898-2 and SAE J2284.
ECU manufacturers determine which values are sent over the CAN bus interface. Here, documentation is key, possibly even in the form of a DBC file that can be imported using our DSS. As a customer, you can access our extensive list of already implemented ECUs. In total, depending on the manufacturer, up to 64 sensors can be queried.
OBD2 queries via CAN Bus (11 bit/29 bit) are also implemented. Also available are vehicle-specific protocols such as UDS or TP2.
Included by default: - OBD2 - 11 and 29 bit - Ecumaster - Classic and Black - VAG PQ34 - Haltech v2 - LinkECU - MaxxECU - Motec M1 - Emtron - Megasquirt 2 and 3
If the desired ECU is not listed, you can download or request the corresponding TRI/TRX from our database.
For all VAG vehicles manufactured from 2008 onwards (and in some cases, also for earlier models), we offer detailed data queries by protocol. Values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate actuation and much more can be queried and displayed.
Integrated LED
The internal LED can be used as a shift light and as a warning light.
As a shift light, you can assign up to 8 different colours and speed limits, as well as the speed at which it starts flashing.
When configured as a warning light, you can assign a minimum and maximum value for each sensor. If the sensor exceeds the maximum value or is below the minimum, the LED flashes in the pre-configured colour. The shift light is deactivated during the warning period.
Package Contents and Extensions

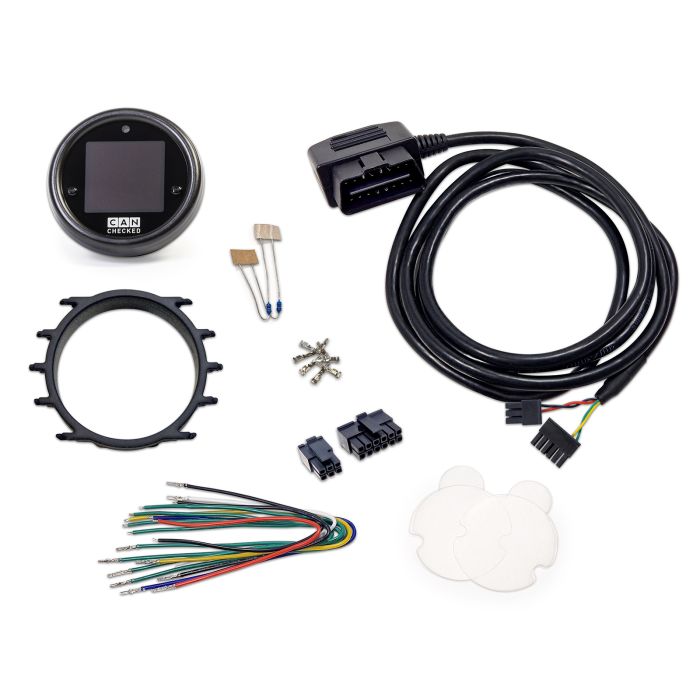

Included in every package:
MFD15 Gen2 data display
Vehicle-specific trim panel for left-hand drive vehicles
Vehicle-specific connection cable
Quick start guide
Connector B (6-pin Molex)
Connector C (12-pin Molex)
Pre-assembled connecting cables of different colours (length: 20 cm, intended use: power supply, CAN bus, analogue inputs, 5V, sensor ground)
Pins for crimping
Two 1 kΩ resistors (as pull-up resistor for NTC sensors)
Sensors of any kind can be connected via the six analogue inputs; we support linear 0-5V sensors and NTC sensors.
The characteristic curves of our CAN-certified sensors are stored in the display ex-factory and work immediately (plug and play):
AIN1: Temperature sensor (NTC01)
AIN2: Transducer for K-type exhaust gas temperature probe (TCC01)
AIN3: Pressure sensor 0-10 bar (FLP01)
AIN4: Boost pressure sensor 0-5.5 bar absolute (BST10)
AIN5: Not preconfigured
AIN6: Not preconfigured
