PRODUCT DESCRIPTION
Product details

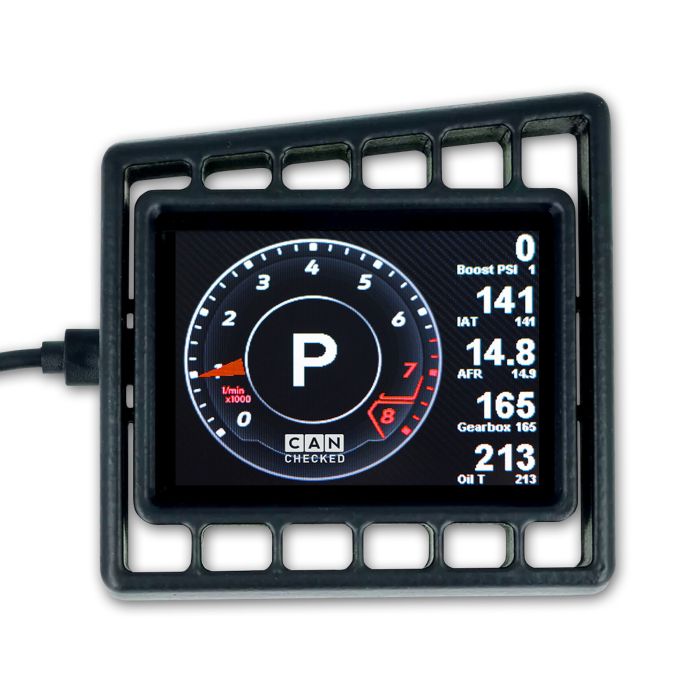

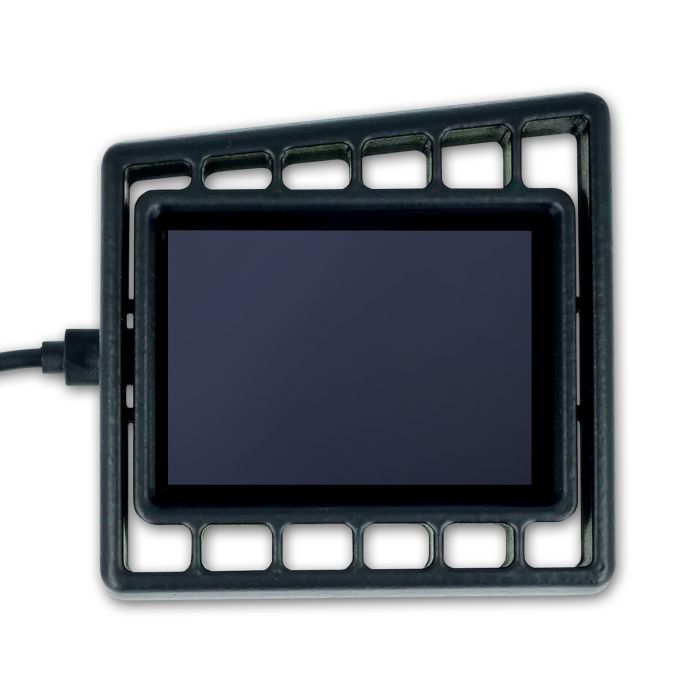

MFD28 Gen2 with CAN certification specific for your pre-FL VW Corrado: perfect integration and all data always in view.
The MFD28 Gen2 transforms the ventilation grille into an intelligent display with essential functions. Our displays are designed for anyone to install. Most include illustrated installation instructions, so you can install it yourself without the need for a workshop.
Main Features
Seamless Integration: The vehicle-specific frame allows air to pass around the display.
CAN Bus: Displays detailed vehicle data, such as manufacturer diagnostic tools.
Gear Indicator: Directly via CAN Bus or calculated from speed and RPM.
Touch Screen: Navigate through pages with intuitive gestures.
Customization: Design your own pages, add images, or start animations.
Additional Inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
CAN Switching: Use the display as a keypad and send your own CAN messages to the bus.
Customizable Alarms: Easily set up and activate customizable alarms. For example, you will receive an important warning when the exhaust gas temperature exceeds 900 degrees.
Data Logging: Log and save your data on the internal SD card for later analysis.
Performance Meter: Measure your 0-100 km/h, 100-200 km/h, and 0-200 km/h times with the integrated performance meter, no additional hardware required.
DTC*: Read and clear errors from the engine control unit, transmission, ABS, and all-wheel drive.
Dimming*: The display automatically dims along with the instrument cluster.
Different Views
Configure your own page or choose from various predefined views:
The display includes predefined example pages.
Custom pages can be created.
Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).
Widgets can be scaled and positioned by dragging and dropping.
Fully adjustable widget colors.
Up to 64 widgets per page.
Display Configuration Software (DSS)
With CANchecked's DSS, you can completely customize your display. The integrated log viewer allows you to download and visualize log files. Additionally, it includes a CAN logger. The core is the integrated TRI editor, with which you can adjust sensors (whether CAN Bus or internal): assign minimum and maximum values for warnings and change the names of your sensors.
