PRODUCT DESCRIPTION
Product details

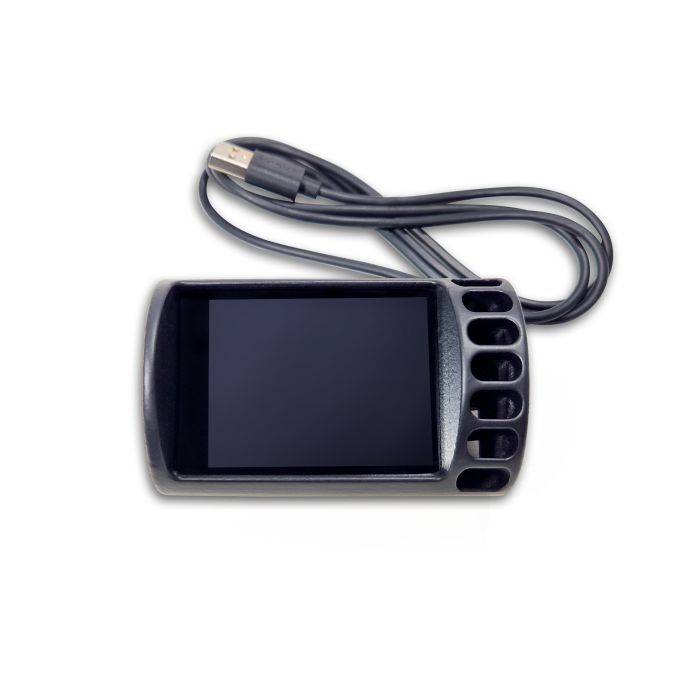

MFD28 Gen2 CAN-certified specifically for your BMW Z3 E36 Compact: seamless integration and all data always in view.
The MFD28 Gen2 transforms your ventilation grille into a smart display with essential functions. Our displays are designed for anyone to install. Most include illustrated installation instructions, so you can install it yourself without the need for a workshop.
Key Features
Seamless Integration: The vehicle-specific frame allows air to pass around the display.
CAN Bus: Displays detailed vehicle data, such as manufacturer diagnostic tools.
Gear Indicator: Directly via CAN Bus or calculated from speed and RPM.
Touchscreen: Navigate through pages with intuitive gestures.
Customization: Design your own pages, add images, or start animations.
Additional Inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
CAN Switching: Use the display as a keypad and send your own CAN messages to the bus.
Customizable Alarms: Easily set up and activate customizable alarms. For example, you will receive an important warning when the exhaust gas temperature exceeds 900 degrees.
Data Logging: Record and save your data on the internal SD card for later analysis.
Performance Meter: Measure your 0-100 km/h, 100-200 km/h, and 0-200 km/h times with the integrated performance meter, no additional hardware needed.
DTC*: Read and clear errors from the engine control unit, transmission, ABS, and all-wheel drive.
Dimming*: The display automatically dims along with the instrument cluster.
Different Views
Configure your own page or choose from several predefined views:
The display includes predefined example pages.
It is possible to create custom pages.
Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).
Widgets can be scaled and positioned by drag and drop.
Widget colors fully adjustable.
Up to 64 widgets per page.
Display Setup Software (DSS)
With CANchecked DSS, you can fully customize your display. With the integrated log viewer, you can download and visualize log files. Additionally, it includes a CAN logger. The core is the integrated TRI editor, with which you can adjust sensors (whether CAN Bus or internal): assign minimum and maximum values for warnings and change the names of your sensors.
Supported Values
Many customers ask: What values can I get from my ECU? The answer: ALL.
We have reverse-engineered data from most engines and can provide detailed information. Our display supports querying CAN Bus data (UDS, TP2, manufacturer-specific protocols).
By default, your display is delivered with predefined TRI/TRX files. All queried sensors are defined in these files. These vary by engine. Below is an excerpt of the possibilities:
Temperatures:
Exhaust gas temperature, coolant temperature, oil temperature, intake temperature, ambient temperature, fuel temperature, DSG gearbox temperature.
