PRODUCT DESCRIPTION
Product details

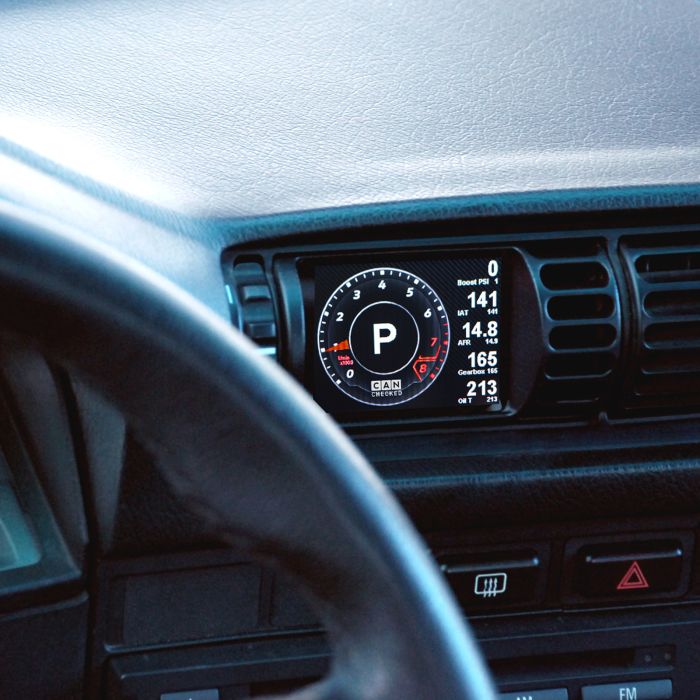

MFD28 Gen2 specific for your BMW 3 Series E30: perfect integration and all data always in view.
The MFD28 Gen2 transforms your air vent into a smart display with essential functions. Our displays are designed for anyone to install. Most include illustrated installation instructions, so you can install it yourself without needing a workshop.
Key Features

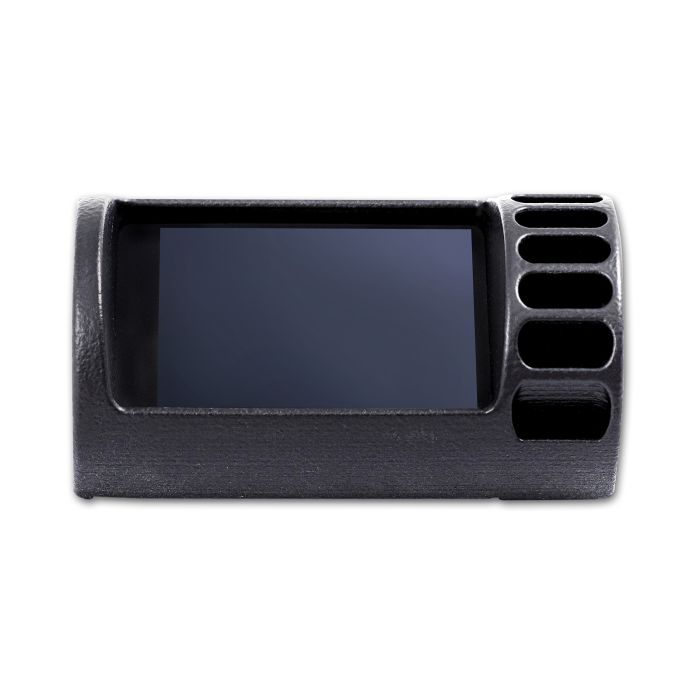

Seamless integration: The vehicle-specific frame allows air to pass around the display.
Can Bus: Detailed vehicle data display, such as manufacturer diagnostic tools.
Gear indicator: Directly via Can Bus or calculated from speed and rpm.
Touch screen: Navigate through pages with intuitive gestures.
Customization: Design your own pages, add images or start animations.
Additional inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
Can switching: Use the display as a keyboard and send your own Can messages to the bus.
Customizable alarms: Easily set up and activate customizable alarms. For example, you will receive an important warning when the exhaust gas temperature exceeds 900 degrees.
Data logging: Log and save your data to the internal SD card for later analysis.
Performance meter: Measure your 0-100 km/h, 100-200 km/h, and 0-200 km/h times with the integrated performance meter, no additional hardware needed.
DTC*: Read and clear errors from the engine control unit, transmission, ABS, and all-wheel drive.
Dimming*: The display automatically dims along with the instrument cluster.
Different views
Set up your own page or choose from several predefined views:
The display includes predefined example pages.
It is possible to create custom pages.
Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).
Widgets can be scaled and positioned by dragging and dropping.
Fully adjustable widget colors.
Up to 64 widgets per page.
