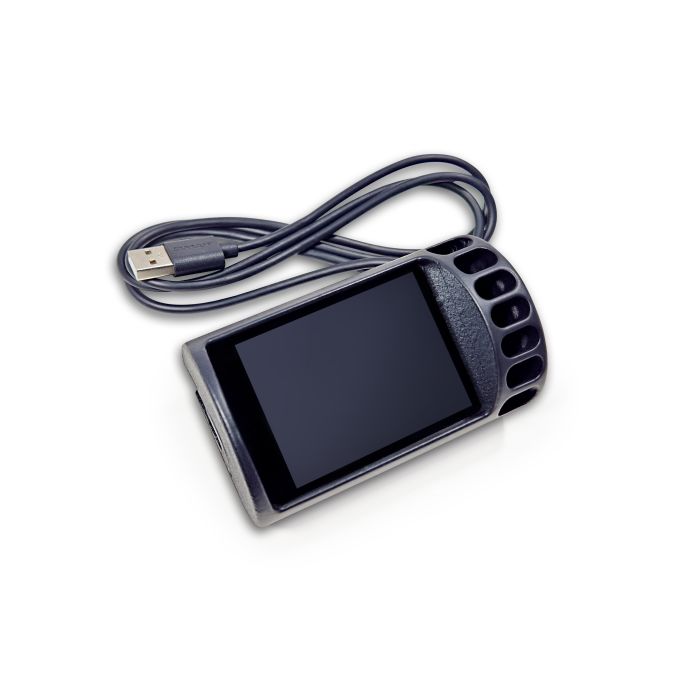

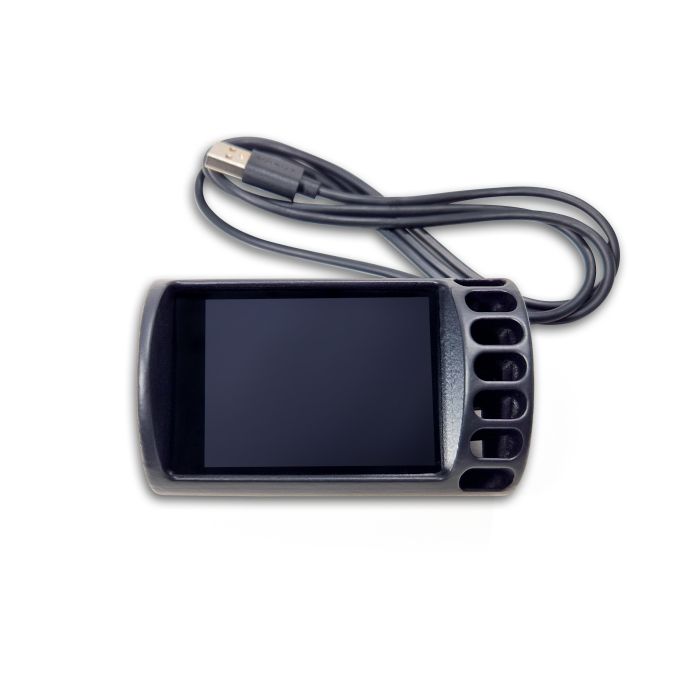

MFD28 Gen2 with CAN certification specific to your BMW 5 Series E34: seamless integration and all data always in view.
The MFD28 Gen2 transforms the ventilation grille into an intelligent display with essential functions. Our displays are designed for anyone to install. Most include illustrated installation instructions, so you can install it yourself without the need for a workshop.
Main Features
Seamless Integration: The vehicle-specific frame allows air to pass around the display.
CAN Bus: Display of detailed vehicle data, such as manufacturer diagnostic tools.
Gear Indicator: Directly via CAN Bus or calculated from speed and RPM.
Touchscreen: Navigate through pages with intuitive gestures.
Customization: Design your own pages, add images, or start animations.
Additional Inputs: Connect up to 4 analog inputs and an ethanol sensor directly to the display.
CAN Switching: Use the display as a keypad and send your own CAN messages to the bus.
Customizable Alarms: Easily set up and activate customizable alarms. For example, you will receive an important warning when the exhaust gas temperature exceeds 900 degrees.
Data Logging: Log and save your data on the internal SD card for later analysis.
Performance Meter: Measure your 0-100 km/h, 100-200 km/h, and 0-200 km/h times with the integrated performance meter, no additional hardware needed.
DTC*: Read and clear errors from the engine control unit, transmission, ABS, and all-wheel drive.
Dimming*: The display dims automatically along with the instrument panel.
Different Views
Configure your own page or choose from various predefined views:
The display includes predefined example pages.
It is possible to create custom pages.
Up to ten pages available.
20 different widget types (e.g., sensor value, analog pointer, YT diagram, speed bar, circular display, vertical/horizontal bar).
Widgets can be scaled and positioned by dragging and dropping.
Fully adjustable widget colors.
Up to 64 widgets per page.
Display Configuration Software (DSS)
With CANchecked's DSS, you can fully customize your display. With the integrated log viewer, you can download and view log files. It also includes a CAN logger. The core is the integrated TRI editor, with which you can adjust sensors (whether CAN Bus or internal): assign minimum and maximum values for warnings and change the names of your sensors.
Supported Values
Many customers ask: What values can I get from my ECU? The answer: ALL.
We have reverse-engineered data from most engines and can provide detailed information. Our display supports querying CAN Bus data (UDS, TP2, manufacturer-specific protocols).
By default, your display is delivered with predefined TRI/TRX files. All queried sensors are defined in these files. These vary depending on the engine. Below is an excerpt of the possibilities:
Temperatures:
Exhaust temperature, coolant temperature, oil temperature, intake temperature, outside temperature, fuel temperature, DSG gearbox temperature.
Pressures:
Boost pressure, ambient pressure, pre-feed fuel pump pressure, rail pressure (actual/target).
Lambda/Mixture
Lambda value, injection time, short-term Lambda trim, long-term Lambda trim
Other
RPM, mass airflow, vehicle speed, throttle angle, total ignition angle, ignition angle retard per cylinder, N75 ignition advance in %, terminal 30 voltage, engine torque, gear, diesel-specific values
If values are missing, they can be added later. Scope of Delivery

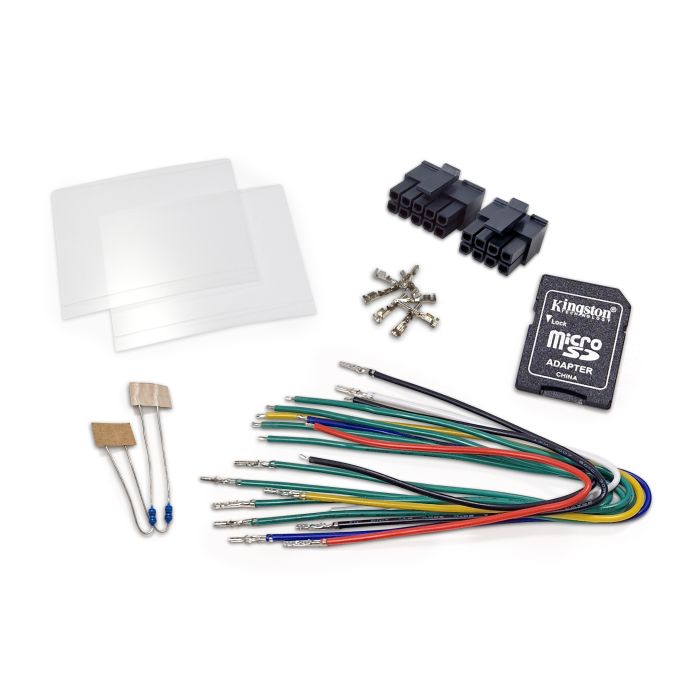

Included with every delivery
MFD28 Gen2 data display integrated into the ventilation insert for left-hand drive vehicles

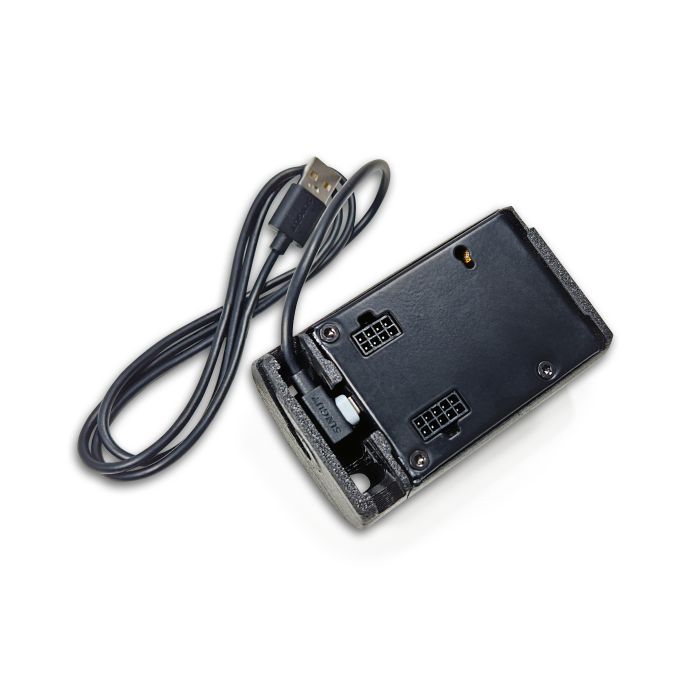

Connector A (8-pin Molex)
Connector B (10-pin Molex)
Pre-assembled connection cables of different colors (length: 20 cm, intended use: power, CAN bus, analog inputs, 5V, sensor ground)
Pins for crimping
Two 1 kΩ resistors (as pull-up resistors for connecting external NTC sensors)
Quick Start Guide
USB data cable
SD card (pre-installed in the display)
SD card adapter
Screen protector film (to prevent reflections)
Connection and Expansion
Sensors of any type can be connected via the four analog inputs. We support linear 0-5V sensors and NTC sensors. Our CAN-certified sensors are stored by default in the TRI/TRX files and only need to be connected:
AIN1: Temperature sensor (NTC01)
AIN2: Transducer for type K exhaust gas temperature sensor (TCC01)
AIN3: Pressure sensor 0-10 bar (FLP01)
