MFD15 Gen2 Instrument Cluster with CAN Check for Mini R55 R56 R57 R58

With this MFD15 Gen2 CANchecked data display specific to your Mini Cooper R55/R56/R57/R58/R59 MK2, you will always have all relevant values in view.
The MFD15 Gen2 is equipped with an OLED display that offers excellent readability even in direct sunlight. A vehicle-specific trim and connection kit is included in this kit. It is operated via the two push buttons on the front panel. You can also connect our optional rotary knob.
Key features

Compact design: 52mm diameter and only 12.5mm depth.

LED on the front panel: The LED on the front of the display can be used as a shift indicator or as a warning light.

Can Bus: Compatible with Can Bus ECUs, proprietary Can streams, and from 2008 onwards, with OBD2 and deep values for VAG vehicles.

Wi-Fi: Connect to your smartphone or PC and configure it using our web app.

Additional inputs: Connect up to 6 analog sensors to the inputs or an ethanol sensor* directly to the display.

Predefined alarms: Easily activate and customize predefined alarms. For example, receive an alert when the exhaust gas temperature exceeds 900 degrees. Customization: Use your own logo and color scheme to personalize your MFD15 Gen2.

Online logging*: Record your data with your smartphone or PC and save the log to your device for later analysis.

Flex fuel*: Display ethanol content and temperature on the screen.

Can switching*: Switch between cans using the buttons on the display and send the readings from your analog inputs to the CAN bus.

Different views

Choose up to eight pages with different views and customize your display to best suit you and your vehicle:

Analog pointer
Double value
Gear indicator
Quadruple values
Sextuple values
Bar + double display
Round display
Bar chart (double horizontal)
Performance meter
Bar chart (1 to 6 vertical bars)
Single value

Configuration via the online Display Setup Software (oDSS)

New to our MFD15 Gen2, you can access the device via Wi-Fi. This allows you to configure the MFD15 Gen2 from your smartphone or PC.
With oDSS, you can fully configure your display, log values (license required), upload your own start image, and update the display.

Supported values

A frequently asked question from customers is: Which values can I query from my ECU? The answer: ALL. Your new MFD15 Gen2 is compatible with ISO 11898-2 and SAE J2284.

ECU manufacturers determine which values are sent via the CAN bus interface. In this case, documentation is essential, possibly even in the form of a DBC file that can be imported via our DSS. As a customer, you can access our extensive list of already implemented ECUs. In total, depending on the manufacturer, up to 64 sensors can be queried.

OBD2 queries via CAN Bus (11-bit/29-bit) are also implemented. Likewise, vehicle-specific protocols such as UDS or TP2 are available.
Included by default: - OBD2 - 11 and 29-bit - Ecumaster - Classic and Black - VAG PQ34 - Haltech v2 - LinkECU - MaxxECU - Motec M1 - Emtron - Megasquirt 2 and 3

If the desired ECU is not listed, you can download or request the corresponding TRI/TRX from our database.

For all VAG vehicles manufactured from 2008 (and in some cases, also for older models), we offer detailed data queries by protocol. Values such as oil temperature, boost pressure, transmission temperature, cylinder-selective ignition angle return, high/low pressure, wastegate activation, and much more can be queried and displayed.

Integrated LED

The internal LED can be used as both a shift light and a warning light.

As a shift light, you can assign up to 8 different colors and speed limits, as well as the speed at which it starts flashing.

When configured as a warning light, you can assign a minimum and maximum value for each sensor. If the sensor exceeds the maximum value or falls below the minimum, the LED flashes in the previously configured color. The shift light is deactivated during the warning period.

Package contents and extensions

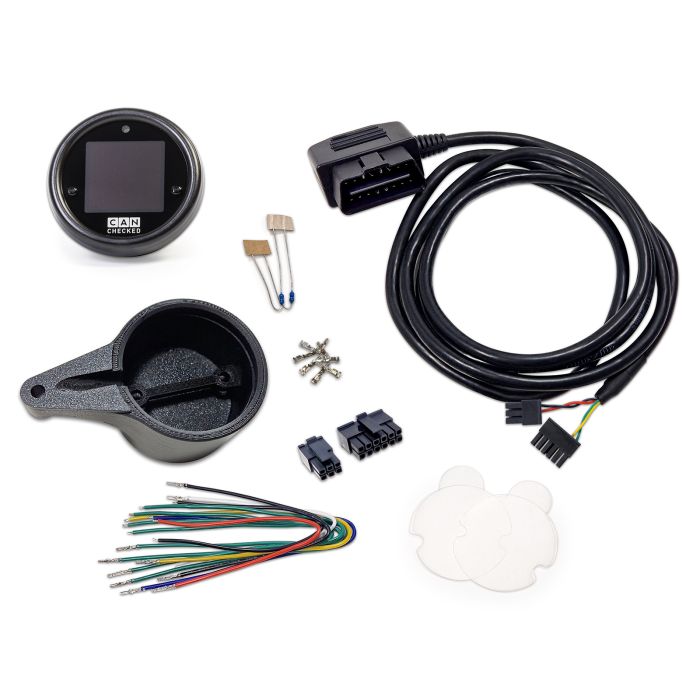

Included in each package:

MFD15 Gen2 data display
Vehicle-specific trim for left-hand and right-hand drive vehicles
Vehicle-specific connection cable
Quick Start Guide
Connector B (6-pin Molex)
Connector C (12-pin Molex)
Pre-assembled connection cables of different colors (length: 20 cm, intended use: power, CAN bus, analog inputs, 5V, sensor ground)
Crimping pins
Two 1 kΩ resistors (as pull-up resistor for NTC sensors)

Sensors of any type can be connected via the six analog inputs; we support 0-5V linear sensors and NTC sensors.
The characteristic curves of our CAN-certified sensors are stored in the factory display and work immediately (plug and play):

AIN1: Temperature sensor (NTC01)

AIN2: Transducer for K-type exhaust gas temperature probe (TCC01)

AIN3: Pressure sensor 0-10 bar (FLP01)

AIN4: Boost pressure sensor 0-5.5 bar absolute (BST10)

AIN5: Not pre-configured

AIN6: Not pre-configured

For connection, you can use our pre-assembled 4-way AIN harness.

If you have the corresponding license*, you can additionally connect an ethanol sensor directly to the display via a separate pin. Optional accessories

CC22501 ETK01 - External rotary knob with 50 cm PnP connection cable
CC22100 CBD08 - Eight-way CAN distribution hub
CC22780 ANC04 - Four-way AIN harness
CC22902 NTC01 - Temperature sensor for liquids 1/8 inch NPT
CC22903 TCC01 - K-type transducer 0-1250 °C
CC22901 FLP01 - Pressure sensor 0-10 bar (145 psi) M10x1
CC22900 BST10 - Pressure sensor 0-5.5 bar absolute (80 psi)

*Additional licenses

Real-time logging of the MFD15 Gen2

With the "Real-time logging" additional license, your display can record sensor data in oDSS. You can then download the log as a file to your smartphone or PC.
All sensors are recorded in the log (ATTENTION: for OBD and UDS, only those displayed on the screen are shown). Select the sensors you want to display graphically.

Ethanol sensor for flexible fuel directly on the MFD15 Gen2

With the additional license for the ethanol sensor, you can connect the sensor directly to the display. You need a pull-up resistor (10 kΩ) between 5V and the signal. You can now see the ethanol content, as well as the fuel temperature, and also record it.

CAN switching and AIN forwarding

With the additional license for CAN switching and AIN forwarding, you can use the keys on your display or the rotary knob to switch CAN switches and apply the input voltages of your analog inputs to the CAN bus.
