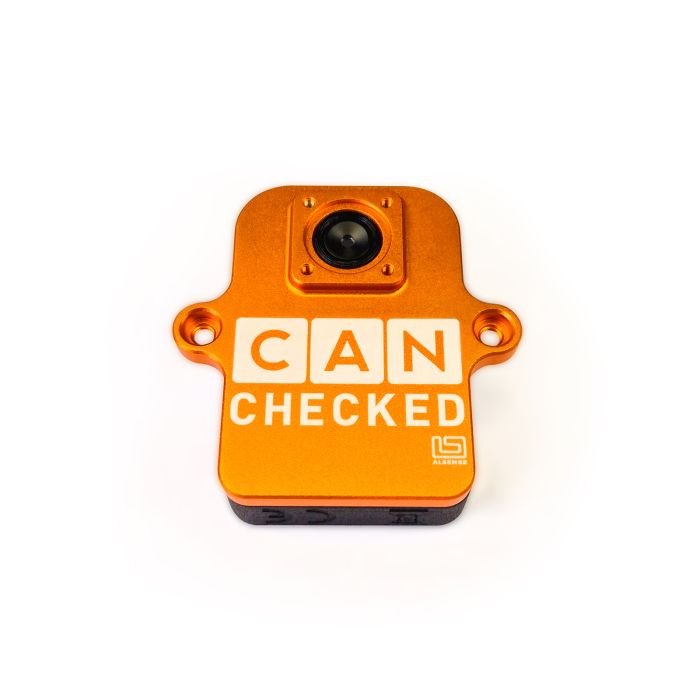

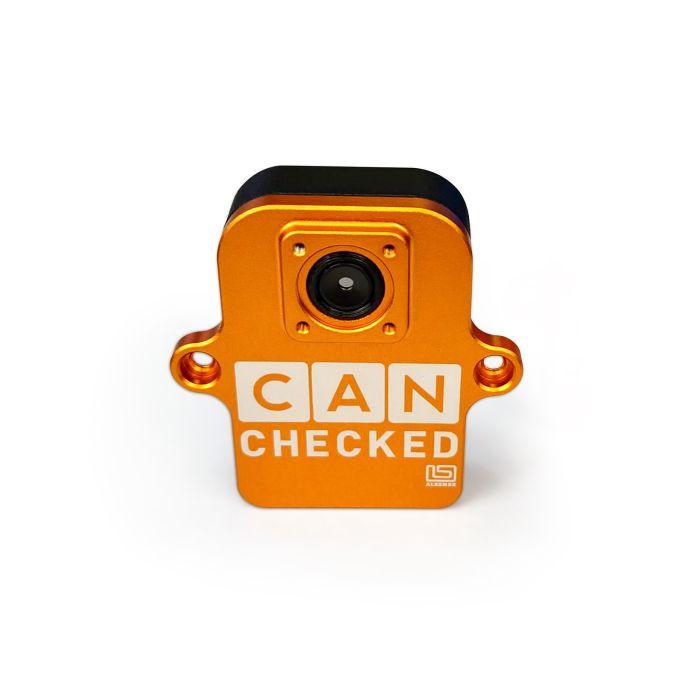

CAN-verified BMU01 single brake temperature wireless monitoring

Wireless Brake Temperature Monitor - BMU01

Enhance your vehicle's performance monitoring with the Wireless Temperature Monitor: a high-performance wireless system featuring an advanced infrared temperature sensor and CAN connectivity. This system includes a multi-channel sensor that provides high-accuracy, real-time data for optimal tire and brake management on the track. Thanks to its easy setup, you'll have a ready-to-use system and seamless mobility between vehicles.

Important Notice:

You will need a receiver box (e.g., from our BMU04 kit) to receive the data and transmit it to the CAN bus. This sensor does not operate independently.
Key Features:

Wireless and Easy to Install: Simple setup with quick transfer between vehicles.

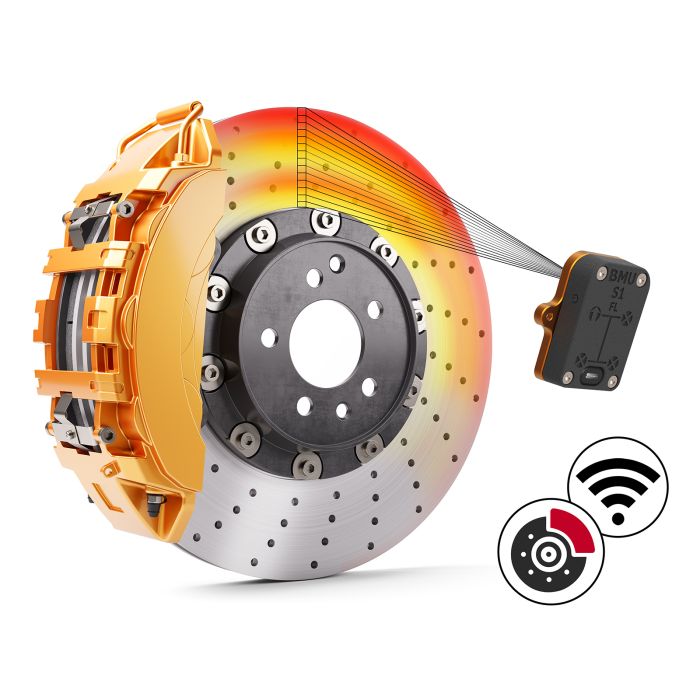

Advanced Multi-Channel Infrared Monitoring:

8 configurable channels per tire or brake disc.

Adjustable refresh rate up to 50 Hz for accurate real-time information.

Rechargeable Battery for Extended Use:

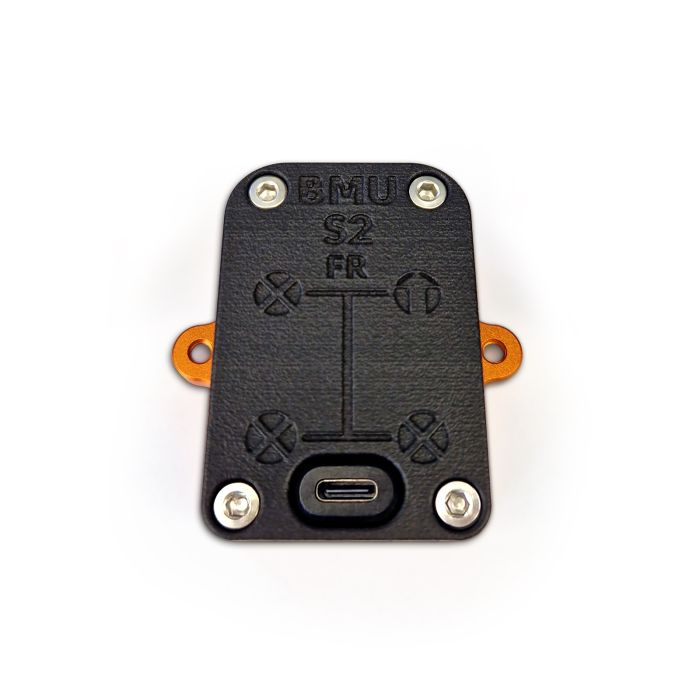

250 mAh battery (USB-C charged) integrated into the sensor.

Offers up to 15 hours of continuous use per charge.

High Accuracy and Wide Temperature Range:

Operating Range: -40 to +800 °C.
Field of View: 110° x 6° for complete coverage, with a 55° option for more specific measurements.

Robust and Compact Design:

Dimensions: 64.0 x 42.0 x 17.5 mm.

Weight: 57 g.
Durable aluminum/polyamide housing with IP65 rating for demanding environments.
Operating Temperature: -40 to +85 °C.
Optional Protective Lens: Available for increased durability and protection.

Package Contents:

1 unit. BMU01 Sensor

Ideal for professional racing and high-performance testing, the Wireless Temperature Monitor offers unmatched convenience and reliability, facilitating the tracking and management of tire and brake performance data. For developers, we provide comprehensive documentation for easy integration with CAN applications. Contact us for more information!
