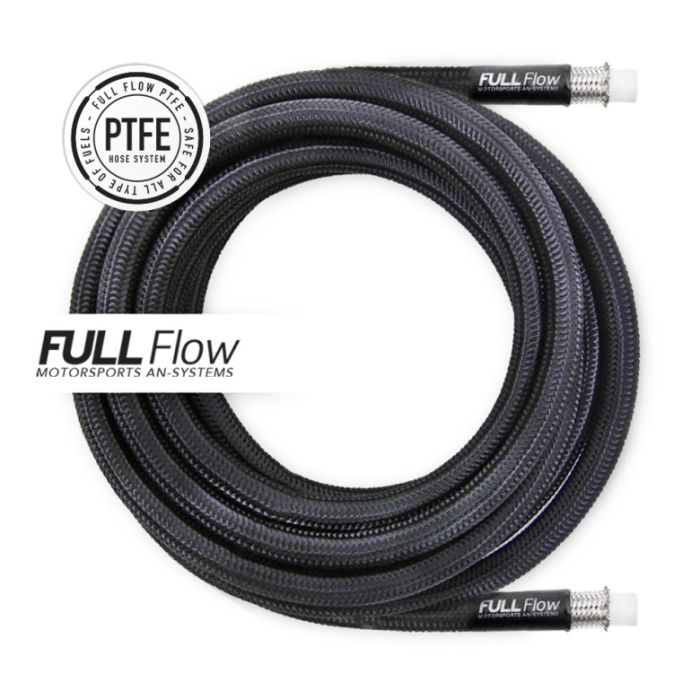

Nuke Performance Black Nylon Braided PTFE Stainless Steel Fuel Hose, AN6, 4 m (13 ft)

Nuke Performance Black Nylon Stainless Steel Braided PTFE Fuel Hose. Available in AN-6, AN-8, AN-10, and AN-12. High-quality, lightweight, and full-flow fuel hose for PTFE hose ends. Nuke Performance offers a wide range of PTFE hose ends and fuel hoses. With the PTFE line, you get the perfect solution for all types of fuel, including alcoholic fuels such as ethanol.

Safe for all types of fuel, including ethanol. For Nuke Performance Full-Flow PTFE hose ends. Available in AN-6 / AN-8 / AN-10 / AN-12. Available in pre-cut lengths of 1 / 2 / 4 / 6 m. Includes shrink sleeves. Longer lifespan than conventional fuel hose.

Nuke Performance's wide selection of hose ends are of the highest quality and available in sizes from AN-6 up to AN-12, with a variety of versions ranging from straight to 180 degrees. The Full-Flow PTFE fuel hose offers economical protection for injectors, fuel filters, and fuel pumps.

Black braided PTFE-lined fuel hose for motorsports. The inner Teflon lining resists all types of fuels, including alcoholic fuels such as ethanol, methanol, and race fuels. The Nuke Performance PTFE Fuel Hose has a much longer lifespan as it does not degrade over time like conventional nitrile rubber hoses. This protects injectors, fuel filters, and in the long run, fuel pumps, from clogging and damage caused by the dissolution of the inside of nitrile hoses. The Nuke Performance PTFE Fuel Hose is carbonized to improve conductivity, a crucial aspect for motorsport fuel systems. Nuke Performance Black Nylon Braided PTFE-lined fuel hose is available in various sizes. Full-Flow PTFE Hose End Fittings: Assortment of AN-6 PTFE Hose End Fittings.

The PTFE lining on the inside of the hose acts as a vapor barrier. The Nuke Performance PTFE Fuel Hose features an internal Teflon (PTFE) lining that acts as a vapor barrier when using all types of fuels. This is especially useful when using alcohol fuels, which are typically used with traditional nitrile or rubber hoses. It is very practical for installing fuel hoses in the driver's compartment, as well as in the workshop between races and seasons.

Includes heat shrink sleeves to prevent the nylon braiding from deteriorating over time. The Full-Flow PTFE Fuel Hose includes extra heat shrink sleeves. Use these sleeves to prevent the nylon braiding from deteriorating over time. They are also available as accessories if you need more than what is included. The package includes: 1 m = 2 pcs / 2 m = 2 pcs / 4 m = 4 pcs / 6 m = 4 pcs of heat shrink tubing. Additional heat shrink tubing for AN-6 / AN-8 / AN-10 fuel hose. Part No: 810-21-018. Additional heat shrink tubing for AN-12 fuel hose. Part No: 810-21-022.

Excellent flow capacity and increased durability for motorsports. The Nuke Performance Full Flow PTFE line uses a full-flow design that allows you to design your fuel system with minimal flow loss. Thanks to its three-layer design, it has a much smaller outer diameter than a common nitrile fuel hose. The PTFE lining prevents the fuel hose from hardening and will not fracture or crack. This helps prevent fuel leaks and the odor that would occur when using a common nitrile fuel hose. Developed in collaboration with motorsport teams around the world, this range of fittings and fuel hoses offers maximum quality even under the most demanding conditions. The Full Flow range of fittings is manufactured with the same quality as all other parts in Nuke Performance's lightweight motorsport range. Nuke Performance quality is second to none!

Wide variety of tools and accessories: To make the installation of fittings and the fuel system as simple as possible, Nuke Performance offers a wide variety of practical tools and accessories for assembling fuel hoses. The V-shaped aluminum adjustable wrench will revolutionize the assembly of your hose connections. AN aluminum adjustable wrench (AN-4 to AN-16) Part No: 700-30-105. Aluminum AN fitting jaws (Part No: 700-30-201). Aluminum AN wrenches (AN-6/8/10/12) Part No: 700-30-101/2/3/4. Replacement aluminum olive inserts (Part No: 810-20-106/8/10/12).

Nuke Performance Full-Flow PTFE hose fittings are available in AN-6, AN-8, AN-10, and AN-12. The matching PTFE braided fuel hose is available in pre-cut lengths of 1 m, 2 m, 4 m, and 6 m (3-20 ft).

Specifications for Nuke Performance PTFE Hose Fittings/Fuel Hose. For more information on specifications, please refer to the product manual.

AN-6 Hose Series:

820-02-106 - 820-02-606

AN-6 Hose Fittings:

810-01-106 - 810-18-106

Available sizes:

AN-6 / AN-8 / AN-10 / AN-12

Fuel hose length:

1 m (≈3 ft) / 2 m (≈6 ft) / 4 m (≈13 ft) / 6 m (≈20 ft)

Fuel compatibility:

Gasoline, methanol, ethanol, E85, race fuel, diesel, oil

Heat shrinks included:

1 m = 2 pcs / 2 m = 2 pcs / 4 m = 4 pcs / 6 m = 4 pcs

Fuel hose inner liner:

PTFE (Teflon)

Fuel hose braiding:

Stainless steel and nylon

Temperature range:

-70 °C to 250 °C (-94 °F to 480 °F)

Conductive inner liner
YES

For motorsport use
YES

Operating pressure AN6
205 BAR (3000 PSI)

Burst pressure AN6
680 BAR (10000 PSI)

Inner diameter AN6
8.2 mm (0.32")

Outer diameter AN6
11.5 mm (0.44")
