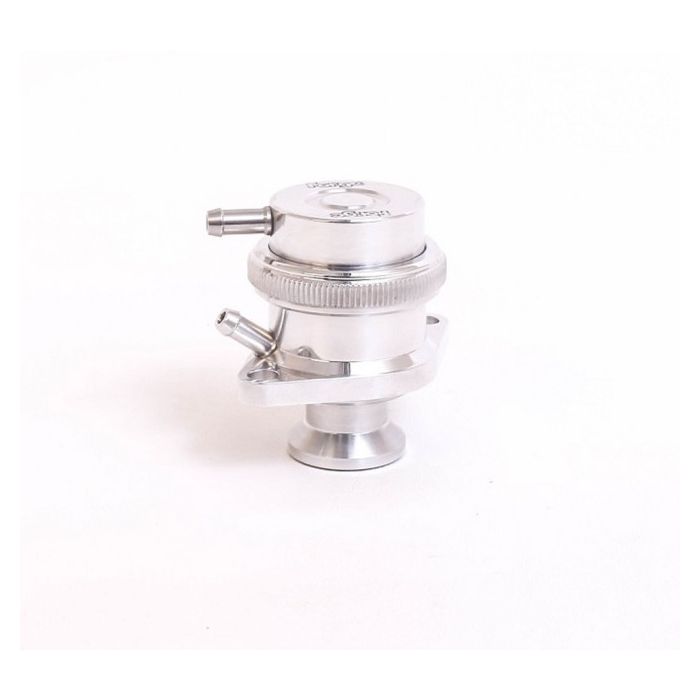

Forge Motorsport FMDVRTSI Recirculation Valve Kit for Audi Seat Skoda VW VAG 1.4 TSI 180hp

This Forge valve kit is for the VAG 1.4 TSI twincharged (supercharged and turbocharged) engines, with the electronically controlled bypass valves (2 bolt fitting). It is recommended for any vehicle where the boost pressure has been increased by a software ECU upgrade and for unmodified vehicles operating in warmer climates, as a solution to the many failures that have occurred to the original valve.

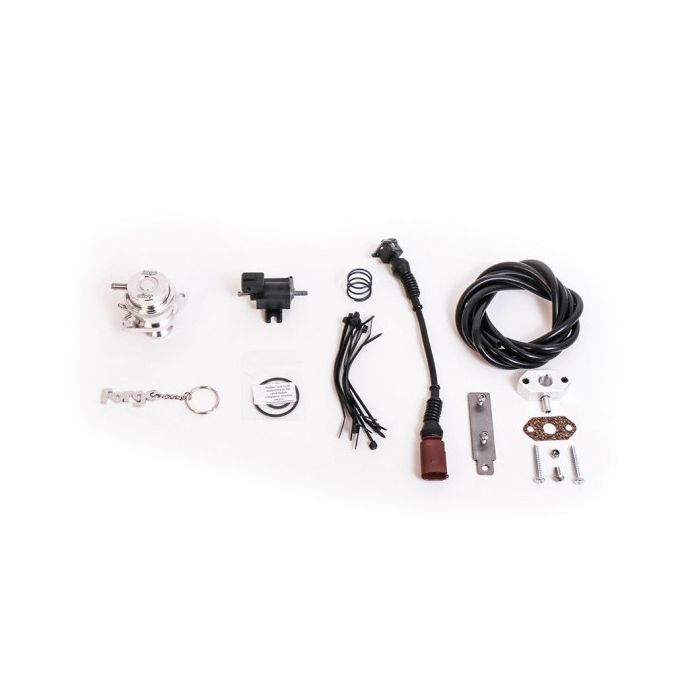

This alternative is an advanced engineered solution offering significantly improved reliability. Our valve and installation kit replaces the original unit with a pressure/vacuum actuated piston valve that still retains the OEM ECU control over the valve’s actuation. This product has been thoroughly designed and tested with the express aim of offering improved valve response and maintaining ECU control, whilst not generating any fault codes, or causing the check engine light to ever illuminate, or presenting any other adverse effects. All the required components and detailed instructions are included and everything is designed to make installation as simple as possible. In the Box:

1x FMDVRTSI Valve

1x Wiring Harness
1x Solenoid, Bracket, and Screws

1x Skoda Vacuum Tap
2x M5 x 35 Self Tapping Screws
1x Uprated Blue Spring
10x Cable Ties
1x 4mm Vacuum Hose (2000mm length)
1x M5 x 12 Cap Head Bolt
1x M5 Nyloc Nut

1x Instruction Booklet
1x Forge Keyring and Sticker

Vehicle Compatibility:

Audi A1 (8X) (2010-2018) 1.4 Twincharged

Audi A3 1.4 Twincharged

Seat Ibiza Mk4 (6J) (2008-2015) 1.4 TSI

Skoda Fabia 1.4 TSI

Skoda Fabia VRS Petrol

Volkswagen Golf Mk5 1.4S/Charge

Volkswagen Golf Mk6 1.4 Twincharged

Volkswagen Polo 1.4 TSI

Volkswagen Polo 1.4 Twincharged

Volkswagen Scirocco 1.4 Twincharged 160
