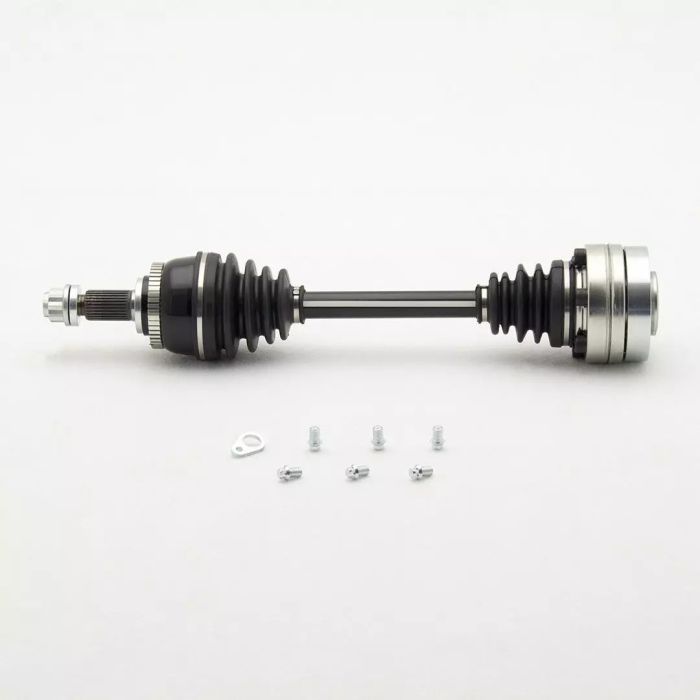

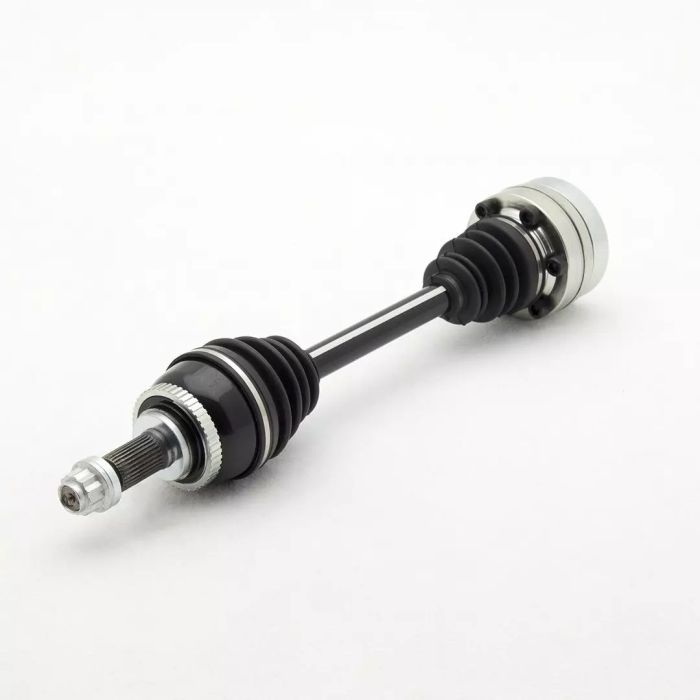

Wisefab BMW E90 Rear Axle Shaft Kit

DESCRIPTION

At Wisefab, we strive to design the best products that empower drivers to push their limits on the track. Behind our unique designs are countless hours of research, problem-solving, and meticulous development. Wisefab dynamic half-shafts withstand 1500 hp and offer exceptional reliability. We design the half-shaft strength to be slightly lower than the differential output shafts. Our half-shafts use low-wear, high-strength CV joints. Since expensive drivetrain components are becoming more common in most rally, drift, and race cars, it’s important to create a system that contributes to their durability. The key lies in a superior axle material that not only has high creep resistance but can also withstand deformation or twisting. Should any part of the drivetrain need to give way, Wisefab half-shafts will withstand the impact. Our half-shafts flex to absorb critical excess torque. In these situations, Wisefab axles can twist up to at least 90 degrees, often reaching 180 or even 360 degrees without failing, allowing you to finish the race without issues. Please note that twisting will not occur until the torque limit is reached. If your axles twist more than 90 degrees, replacement is recommended.

Maximum power: 1500 hp

30 spline outer flange, 6x94 inner flange

Length from wheel bearing surface to inner flange: Left: min 524 mm, max 570 mm; Right: min 559 mm, max 605 mm

Maximum CV joint operating angle: outer 50° / inner 25°

Maximum allowed permanent axle flex before replacement: 90 degrees
