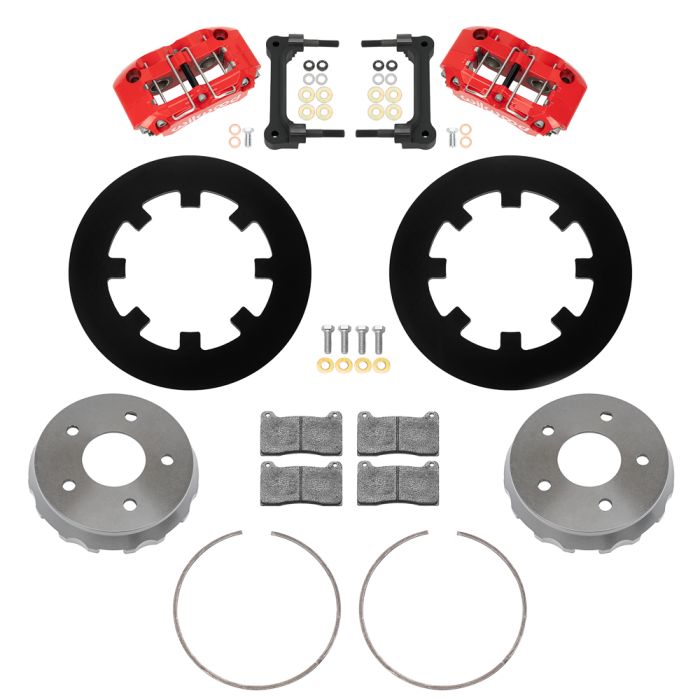

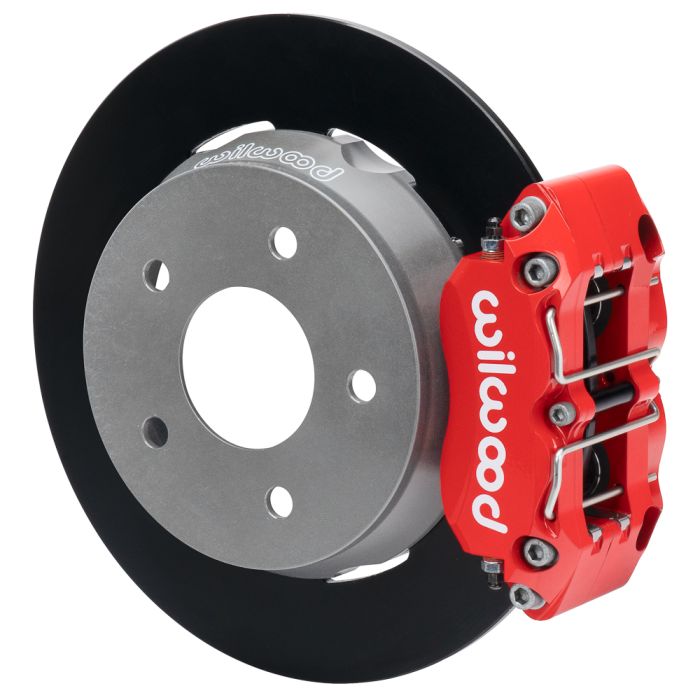

Wilwood 140-17735-R NDPR Rear Brake Kit, Red, for Polaris RZR

NDPR UTV Rear Brake Kit (Red)

Wilwood NDPR UTV Front and Rear Brake Kits include dynamic mount rotors and enhanced calipers for popular off-road vehicles. These kits combine fixed mount multi-piston calipers with increased clamping force and larger diameter floating rotors for increased brake torque, enhancing braking on high-horsepower UTVs. Forged aluminum four-piston calipers reduce deflection and provide more even engagement for increased braking force and improved feel. High-friction steel rotors are up to 20% larger in diameter and thicker for less warpage. Dynamic mount rotors reduce thermal stress and prevent piston knock-back over rough terrain. Kit Summary

Spindle Type:

Mount Type:

Radial

Caliper Type:

4 - Red Powder Coat

Rotor Diameter:

11.25

Minimum Required Wheel Diameter*:

14

Calipers

Left - P/N:

120-17783-RD

Right - P/N:

120-17783-RD

Type:

NDPR

Finish Color:
Red Powder Coat

Number of Pistons:

4

Piston Dia. 1 (In.):

1.25

Piston Dia. 2 (In.):

1.25

Piston Dia. 3 (In.):

0
Piston Area (Sq. In.):

2.46

Piston Type:

Stainless

Mount Type:

Radial

Brake Pad Plate:

7812

Brake Pad Area (Sq. In.):

6.36

Brake Pad Vol. (Cu. In.):
2.1

Pad Compound:

BP-10

Rotors

Left - P/N:

160-16515

Right - P/N:

160-16515

Type:
Solid Steel Rotor

Style:
Smooth Surface

Surface Finish:
Black E-Coat

Material:
Steel

Outside Diameter (In.):

11.25

Width (In.):

0.25

Number of Vanes:

Solid

Design Type:

Solid

Seated:

No

Dynamically Balanced:

No

Rotor Hat

Hat - P/N:

170-17745

Type:
Dynamic Lug Drive Big Brake - Short Offset

Material:
Aluminum

Finish Color:

Type III Anodize

Hat Offset Dim. (In.):

0.730

Bolt Circle 1:

5 x 4.50

Bolt Circle 2:

Bolt Circle 3:

Bolt Dia. - BC 1:

0.520

Bolt Dia. - BC 2:

0.000

Bolt Dia. - BC 3:

0.000
