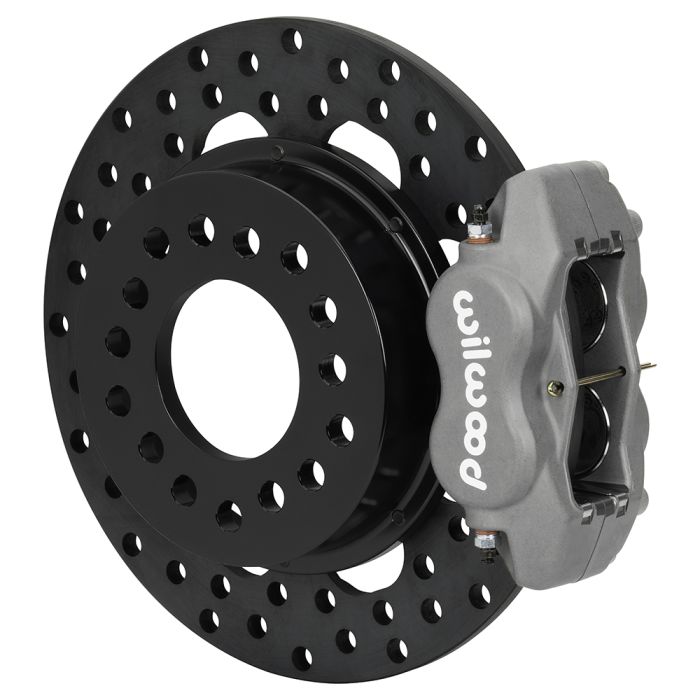

Wilwood 140-5771-BD Forged Dynalite Drilled Rear Drag Brake Kit 2.91

Forged Dynalite Drag Rear Brake Kits

Forged Dynalite Drag Rear Brake Kits are easily installed kits available for all popular muscle car rear axles and aftermarket rear ends with custom axle ends. Kits in this group are purpose-built for stock class drag racers and other vehicles with fully functional four-wheel disc brakes. Depending on specific housing end style and axle offset, the bolt-on kits securely mount the four-piston Forged Dynalite caliper over 3/8” thick, axle-mounted steel rotors with an aluminum hat. Standard kits include solid face rotors, with the option for drilled rotor kits to further reduce unsprung weight in classes where every weight advantage is crucial.

Kit Summary

Rear Axle:

12 Bolt Special

Axle Offset:

2.91

Mount Type:

Lug

Caliper Type:

4 - Type III Anodized

Rotor Diameter:

11.44

Required Minimum Wheel Diameter*:

15

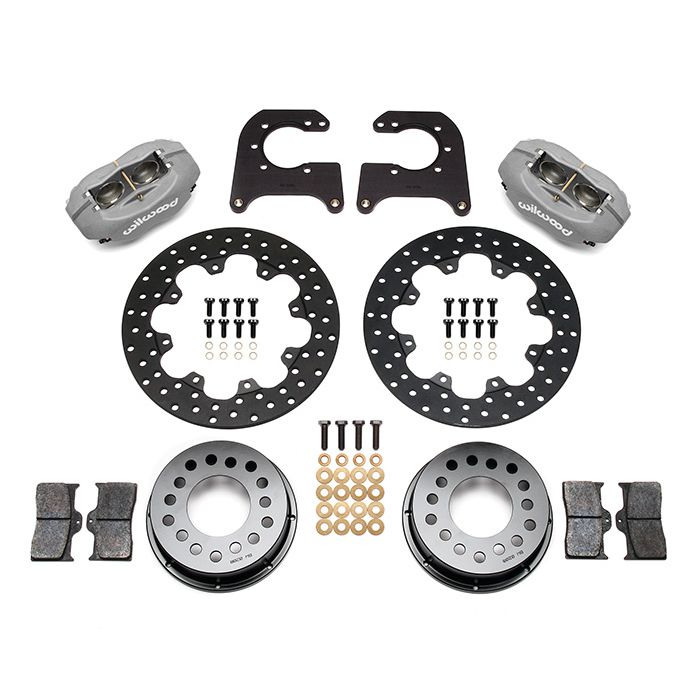

Kit Components & Specifications

Calipers

Left - P/N:

120-13843

Right - P/N:

120-13843

Type:
Forged Dynalite Internal

Finish Color:

Type III Anodized

Number of Pistons:

4

Piston 1 Bore (in.):

1.75

Piston 2 Bore (in.):

1.75

Piston Area (in.²):

4.80

Piston Type:

Stainless

Mount Type:

Lug

Brake Pad Plate:

7112

Brake Pad Area (in.²):

6.36

Brake Pad Volume (in.³):

2.1

Pad Compound:

BP-10

Brake Rotors

Left - P/N:

160-1601

Right - P/N:

160-1601

Type:
Drilled Steel Rotor

Style:

Drilled

Surface Finish:

Black Oxide

Material:

Steel

Outer Diameter (in.):

11.44

Width (in.):

0.35

Number of Vanes:

Solid

Design Type:

Solid

Polished:

No

Dynamically Balanced:

No

Rotor Hats

Hat - P/N:

170-0208

Type:

Drag Hat - Standard

Material:

Aluminum

Finish Color:

Black E-Coat

Hat Offset Dimension (in.):

1.960

Bolt Circle 1:

5 x 4.50

Bolt Circle 2:

5 x 4.75

Bolt Circle 3:

5 x 5.00

Bolt Diameter - BC 1:

0.520

Bolt Diameter - BC 2:

0.520

Bolt Diameter - BC 3:

0.520
